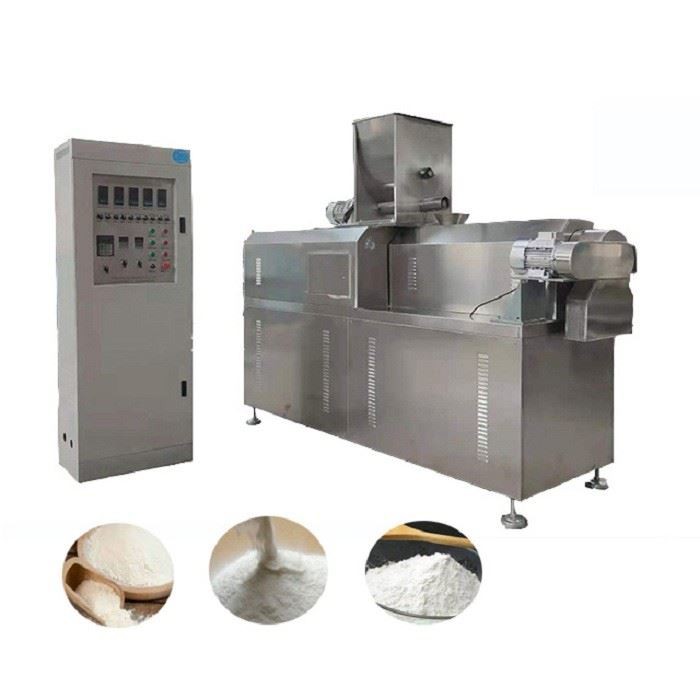

Complete Corn Starch Production Line

Pregelatinized starch is a kind of modified starch that is easy to process and has many uses. When it is used, it only needs to be mixed with cold water to make a paste, which avoids the trouble of heating and gelatinizing. It is used in many industries such as medicine, food, cosmetics, feed oil drilling, metal casting, textile, paper making, etc.

The production of modified starch by twin-screw extruder is a new technology for the production of modified starch. This technology uses a twin-screw extruder that integrates operations such as conveying and mixing, heating and pressurizing, and shear melting as a reactor to perform thermochemical denaturation of starch; it is a high-temperature, short-term, low-moisture, high-energy process. In the thermochemical process, several chemical reactions can be carried out in a single equipment, with high space-time yield; the equipment is simple, occupies a small area, and is easy to operate; as a reactor, the twin-screw extruder can continuously produce oxidation, esterification, cross-linking, etc. Combined, etherified and other types of modified starch, and no sewage; twin-screw extruder has higher mixing efficiency, good process control, and uniform product. It is an economical and feasible method for rapid and continuous production of various modified starches. processing method.

We have different types of machines corresponding to different outputs, customers can choose according to their own needs and actual conditions

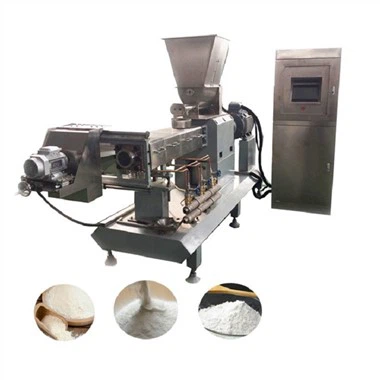

Extruder

Model: DSE65

Main motor: 22kw

Feeding: 0.75kw

Rotary cutting: 0.75kw

Heating power: 10kw

Capacity: 100-150kg/h

Size: 19000*1300*2200mm

Screw material: 38CrMoAl

Oil pump motor: 0.37kw

Air conveyor

Power: 1.1kw/1.5kw/2.2kw

Capacity: 0-2000kg/h

Material: Stainless steel

Dryer

Type: Electric type (we also have oil/gas type and steam type)

Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8

Capacity: 100kgh to 10tons/h

Material: Stainless steel

Milling machine system

Model: FS-480

Installed power: 15kw

Capacity: 100-300 kg/h

Dimension: 1.3*0.7*2m

Q: Can you give me an invitation so that I can apply viza to China?

A: Yes, fo course we can.

Q: What if I'm not available with electric power?

A: Don’t worry, we still have gas/oil dryer and steam dryer.

Q: How can I install machine?

A: We have detailed instruction book to help customers to install machine. Our machines are all complete when they are shipped, and you only need to connect the wires after receiving the goods.

Q: Will you supply formula?

A: Yes. The professional formula will be provide to our customer after the order started.

• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).

• Only plastic film nude packing with wooden pallets.

• Shipping, train, express, or upon clients' demands.
