Pregelatinized Modified Starch Extrusion Machine
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Electrical components: Schneider, Delta, or Chinese brands
Capacity: 400-500kg/h
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Screw type: Integral screw/combined screw
Extruder type: Twin screw extruder
Barrel type: Square barrel/round barrel
Description
Product Pictures
Production Line Picture
1-Screw conveyor, 2-Mixer, 3-Screw conveyor, 4-Extruder, 5-Cooling conveyor, 6-Air conveyor, 7-Dryer, 8-Air conveyor, 9-Milling set
Production Line Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
DSE65 |
72kw |
50kw |
100-150kg/h |
19000*1300*2200mm |
|
DSE70 |
92kw |
65kw |
240-260kg/h |
14000*2000*4000mm |
|
DSE75F |
70kw |
50kw |
200-250kg/h |
32000*1100*1800mm |
|
DSE85 |
108kw |
76kw |
400-500kg/h |
30000*1500*2600mm |
Main Machinery
Extruder
Model: DSE65
Main motor: 22kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Heating power: 10kw
Capacity: 100-150kg/h
Size: 19000*1300*2200mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Air conveyor
Power: 1.1kw/1.5kw/2.2kw
Capacity: 0-2000kg/h
Material: Stainless steel

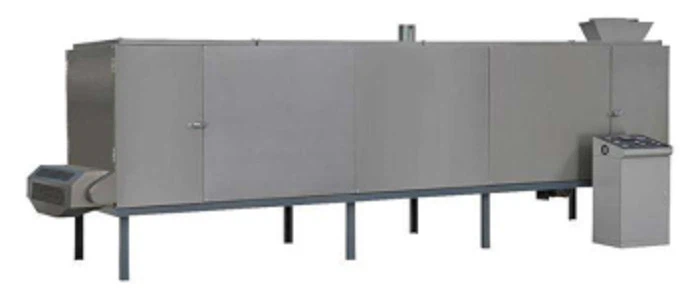

Dryer
Type: Electric type (we also have oil/gas type and steam type)
Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8
Capacity: 100kgh to 10tons/h
Material: Stainless steel
Milling machine system
Model: FS-480
Installed power: 15kw
Capacity: 100-300 kg/h
Dimension: 1.3*0.7*2m
Our Engineer
Yongxin Liu (First Class Senior Engineer)
Graduated school: Shanghai East China University of Science and Technology
Practical experience: For 20 years, he has been devoting himself to the research of snacks food machine, leading more than 30 projects and overcoming numerous Technical difficulties for the company.
Enxin Xu (Second Class Senior Engineer)
Graduated school: Harbin University of Science and Technology
Practical experience: Mr. Xu specialises in the pet food machinery (cat/fish/dog and so on) research and study. Over the past two years，successfully complete 3 projects of 3-8 tons/hour and 20 projects of 0.5-2 tons/hour production line building work.
Sibin Xin (After-sales Group Ⅰ)
Practical experience: with 13 Years of Practical Experience, he has been to at least 80 countries, served more than 200 worldwide customers , and was highly praised by the clients.
Guoqiang Fan (After-sales Group Ⅱ)
Practical experience: 18 years practice experience, be conscientious and responsible, he have been to at least 30 countries, provided professional and effective after-sales service for more than 100 customers all over the word without any mistakes.
FAQ
Q: Where is your company located?
A: Our office building is located in Room 808, Building 2, Zhongjian Jinxiu City, Huaiyin District, Jinan City, Shandong Province. And our factory located in Wanda Industrial Park, Changqing Area, Jinan City, Shandong Province.
Q: What if we can’t use electric type dryer?
A: Don’t worry, we still have gas/oil dryer and steam dryer.
Q: Do you also provide packing machine?
A: Yes, we have long-term cooperation with packaging machine suppliers, can help us to provide customers with a complete production line.
Q: Will you supply formula?
A: Yes. The professional formula will be provide to our customer after the order started.
About Packing & Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
• Shipping, train, express, or upon clients' demands.
