Fish Feed Production Machine





One of the professional fish feed production line manufacturers, a fish feed processing line can take Rice flour, corn flour, wheat flour, soya meal, fish powder, and others as raw materials, to make various fish food in different sizes and tastes for sale. Industrial Fish Feed Production Line Customized 380V/50HZ has a very high quality, has a long time of use, is easy to maintain, and has high production efficiency and production quality. Fish food products are colorful, diverse in variety, beautiful in appearance, natural and lifelike, delicate in texture, and widely used in raw materials.



Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran, wheat bran, fish powder, bone powder etc.

We can provide free high-quality formula.



We have a variety of Fish feed making machine models for you to choose.

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)





The Fish feed production machine is made of food-grade stainless steel. The entire production line has a very high quality, is not easy to be damaged, has a long time of use, is easy to maintain, and has high production efficiency and production quality. The cost performance is also very high. We can help you design the machine layout for free.

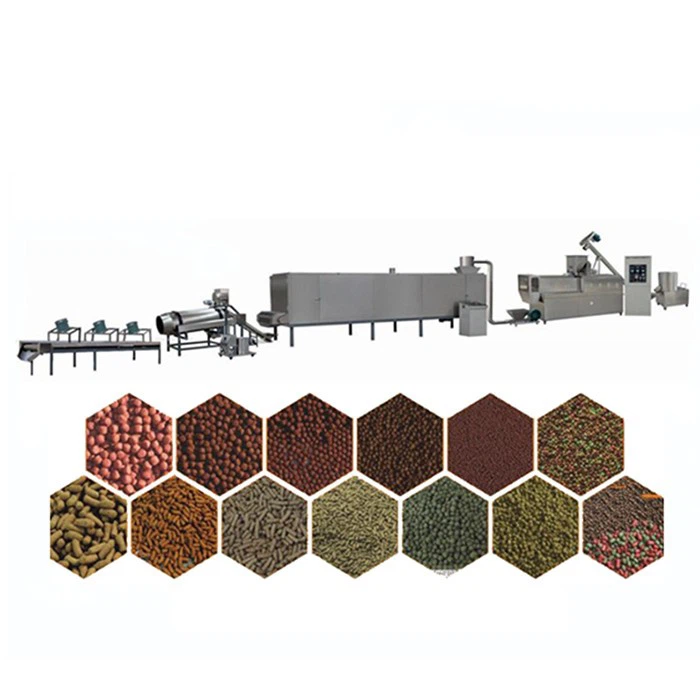

Mixer → Screw conveyor → Extruder → Air conveyor → Dryer → Flavoring → Cooling → Packing



Fish feed making machine accessories use well-known brands, and we can also customize according to your needs.

1. It can be equipped with single-axis, double-axis or three-axis pre-conditioner, which is used to increase the production capacity of the same machine and increase the protein content of fish feed to more than 60%.

2. The material of the screw is Cr12MoV, and the combined screw has wide adaptability. The screw combination can be changed arbitrarily according to the customer's formula to improve the service life.

3. The barrel of the equipment is made of #45 material, and the barrel is equipped with an integral wear-resistant bushing. The hardness of the bushing is HRC58-62, which has a long service life and low replacement cost.

4. Contains filter and condenser, easy to clean oil impurities, and protect bearings and gears through external water cooling.

5. Reinforced gearbox, made of QT400, aging treatment, good stability.

6. Steam heating, high thermal efficiency, each section has a separate temperature control meter to display the temperature, which is convenient for segmental temperature control.

7. Cantilever type rotary cutting system, easy to adjust, fast and accurate, high efficiency.







Yongxin Liu (First Class Senior Engineer)

Graduated school: Shanghai East China University of Science and Technology

Practical experience: For 20 years, he has been devoting himself to the research of snacks food machine, leading more than 30 projects and overcoming numerous Technical difficulties for the company.



Enxin Xu (Second Class Senior Engineer)

Graduated school: Harbin University of Science and Technology

Practical experience: Mr. Xu specialises in the pet food machinery (cat/fish/dog and so on) research and study. Over the past two years，successfully complete 3 projects of 3-8 tons/hour and 20 projects of 0.5-2 tons/hour production line building work.



Sibin Xin (After-sales Group Ⅰ)

Practical experience: With 13 Years of Practical Experience, he has been to at least 80 countries, served more than 200 worldwide customers , and was highly praised by the clients.



Guoqiang Fan (After-sales Group Ⅱ)

Practical experience: 18 years practice experience, be conscientious and responsible, he have been to at least 30 countries, provided professional and effective after-sales service for more than 100 customers all over the word without any mistakes.



• Inside package is plastic film, outside is a wooden or plywood case(based on the customer's need).

• Only plastic film nude packing with wooden pallets.

• Shipping, train, express, or upon clients' demands.
