Floating Fish Feed Extruder Machine
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Product Origin: Shandong Province,China.
4. Delivery time: 25-30 working days.
5. Packaging Details: Wooden cases or wooden pellets depended on clients' requirements.
6.Payment Terms:L/C,T/T and so on.
Description
Floating Fish Feed Machine Video

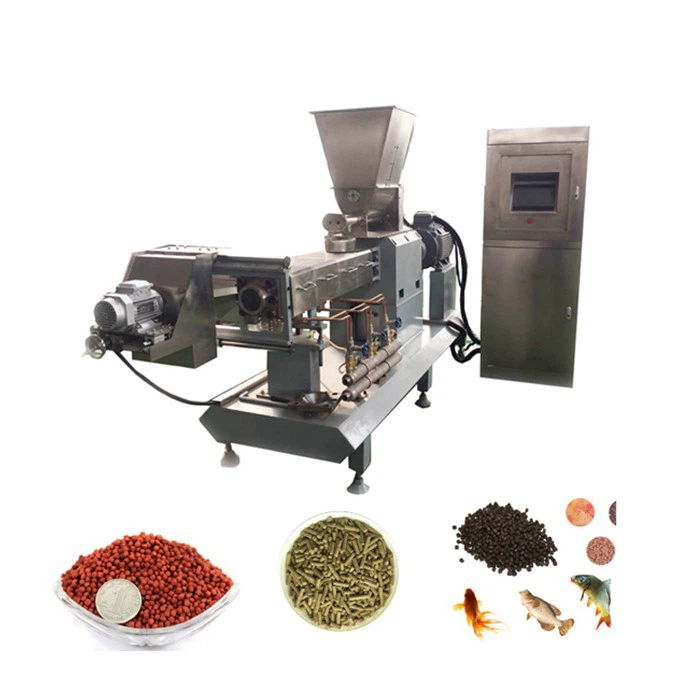

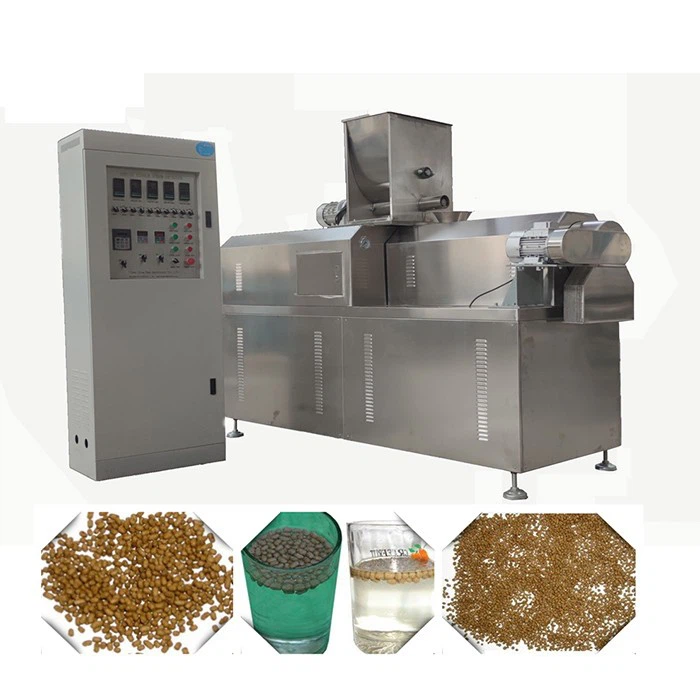

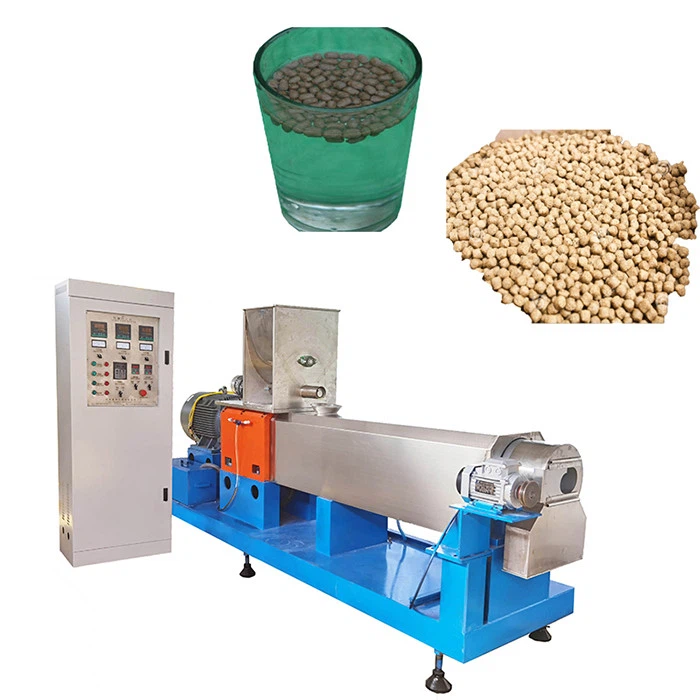

Floating Fish Feed Extruder Machine Introduction
A floating fish feed extruder machine can produce fish, shrimp, abalone and other floating and sinking pellet feed. The extruder in the process of fish feed production is specially made for the production of feed, need high molding rate and good fish feed particles can choose our twin screw extruder. The production technology of fish feed can be fully applied to the sinking/floating/slow sinking fish feed.
Fish Feed Sample Show
Fish feed production line machines can produce floating fish feed, sinking or slow sinking fish feed or other aquatic feed. Our extruder mainly through the change of different raw material ratio, that is, the formula. You can produce a variety of fish feeds to suit a variety of fish.
Specifications
We have a variety of Fish feed making machine models for you to choose, The machine capacity ranges from 100kg per hour to 5 tons per hour. If you need a larger or smaller machine capacity, we can also customize it according to your specific requirements.
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/h |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/h 250-350 kg/h |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/h |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/h |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/h |
45x4.5x6(m) |

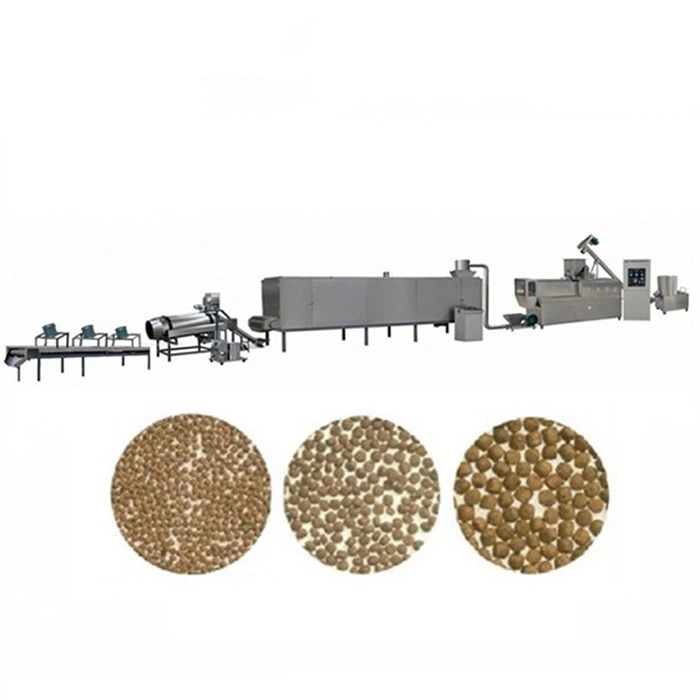

Flow Chart
Mixing - Hoist - Milling - Hoist - Extrusion - Hoist - Dryer - Hoist - Flavoring - Cooling - Packing
For the specific machine process and configuration, we will confirm more details after further communication, and then configure the machine according to your specific needs, and then our engineers will make a suitable flow chart based on our experience or your factory layout.
Raw Materials
Adopts corn flour, fish meal, bone meal, meat meal, soyabean powder etc as row materials.
Machine Detail
Wet type equipment
1. Cantilever rotary cutting, suitable for large output, quick tool setting,and more convenient adjustment.
2. Reinforced high-torque new cabinet, with water cooling and filter.cabinet material QT400, aging treatment, good stability.
3. The barrel is made of No. 45 steel with wear-resistant bushings, which has a long service life and low replacement cost.
4. The modulator can increase the protein content, and increase theoutput of the same model, and the blades can be adjusted for easycleaning.
1). Our processing line adopts internationally advanced technology, and the pellet's size is very even.
2). We can adjust the cutter speed and the dies to get the different diameters and the length of product.
3). The Electric heating device system can control the temperature accurately.
4). High temperature and high pressure can kill salmonellosis and bacterial infections.
5). This line can produce high-protein fish feed.
Our Services
Pre-sale services:
1) Provide the free consultation of the equipment.
2) Provide the standard device and the flow chart.
Services during the sales:
1) Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2) Inspect the machine before leaving the factory.
After sale services:
1) Real-time online reception.
2) Engineers available to service machinery overseas.
Packaging & Shipping
1. Inside package is plastic film, outside is wooden or plywood case, or fumigation package with certificate, (based on the customers' need).
2. Ship, train, express or upon clients' demands.
