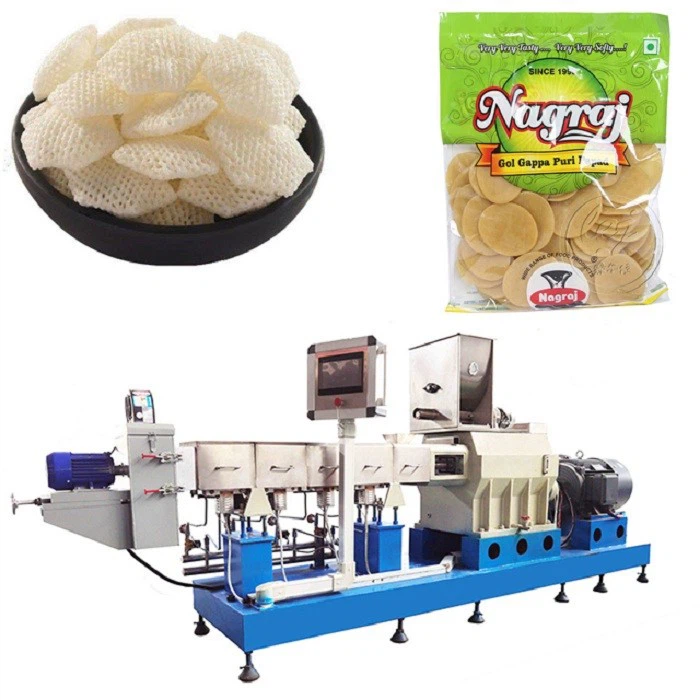

3D Pellet Snack Making Machine
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Inverter brand: Delta/Pioneer/Schneider
Capacity: 80-100kg/h
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Main motor: 30kw
Heating power: 27kw
Description
Product Samples
Production Line Flow Chart
Fried production line:
Mixer - Screw conveyor - Extruder - Piercing machine - Cutting machine - vibration screen - Dryer - Fried machine - Mid hoister - Single flavoring drum
Production Line Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
SSE100 |
77kw |
50kw |
80-100kg/h |
2900*880*1900mm |
|
DSE75F |
160kw |
75kw |
250-350 kg/h |
25000*1500*2400mm |
Machine Details

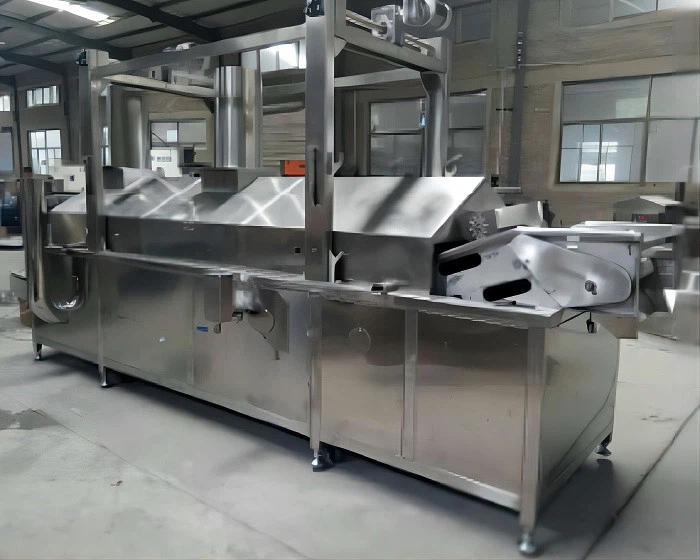

Dimensions: 3500*1200*2200mm,
Effective frying area: 2500*600*70mm
Transmission power: 0.55KW
Llifting power: 0.37KW*2
Heating power: 63KW (21,42, 63KW can be adjusted by yourself
This fryer adopts a double-layer mesh belt structure electric heating type heating, there is a paddle stiming device in the front section, which is suitable for frying.
The machine material plays a certain stining role to prevent the materials from sticking to each other. This kind of structural system has less oil capacity, and the tumover rate of frying oil is fast, which is beneficial to improve the quality of frying oil.
Function: Filter out the oil and dregs
Power: 0.37kw
Capacity: Match with the extruder
Size: 1300x800x800mm
Material: stainless steel
Feature: Smooth operation and high efficiency

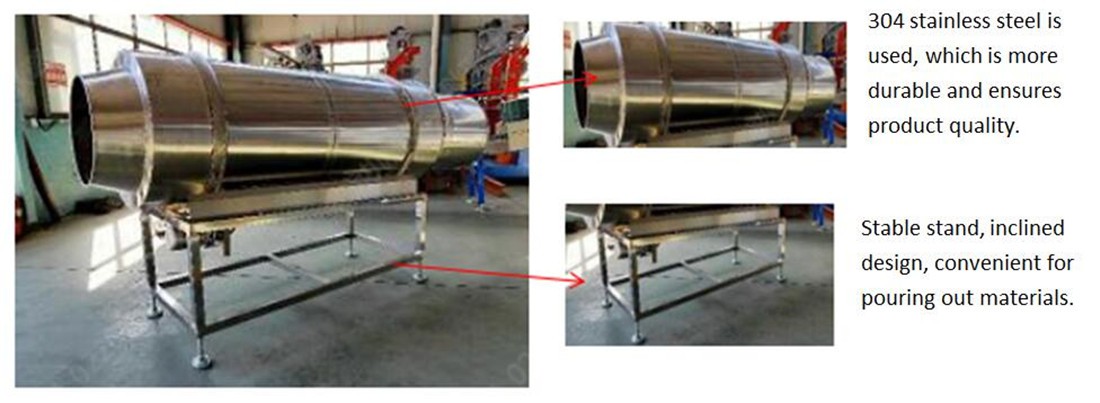

Machine: Single flavouring drum
Power: 0.75 kw
Output: Match with the extruder
Function: Spray seasoning powder evenly on food surface.
Features: 1. High automation, labor saving, all high-quality stainless steel material.
2. Simple operation, convenient installation and maintenance.
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory located in Wanda Industrial Park, Changqing Area, Jinan City, Shandong Province. If you plan to visit our factory, just tell us your time schedual, our colleague will pick you up at the airport and drive you to our factory.
Q: How to install the machine?
A: We will provide installation video and instruction manual.
Q: Do you have formula?
A: Yes, of course. The detailed formula will be provided for free after we start the order.
Q: What should we do if our machines wearing parts need to be changed?
A: We can offer the wearing parts too.
Q: What’s the main raw material?
A: The raw materials are mainly include corn flour, rice flour, corn grain, rice grain and so on. You can experiment with different proportions to create new kind product.
Our Services
Before sales:
1. Recommend the most suitable machine configuration.
2. Provide machinery detailed information.
3. Provide the production line flow chart.
During sales:
Design the production line according to customer’s factory real situation.
Provide the whole production line layout.
Test machine before delivery to ensure there is no problem with the machine.
After sales:
One year warranty service.
Local installation service.
Supplied with repair and installation manuals.
Online video installation guide.
Our Certification
About Packing & Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
• Shipping, train, express, or upon clients' demands.
