Corn Chips Production Line
1.certification：CE ISO SGS
2.Motor:Siemens，ABB or Chinese Brand
3.Electrical components: Schneider, Delta, or Chinese brands
4.capacity：100-500kg/h
5.Screw type: twin-screw complete screw, combined screw
6.Material：stainless steel
7.Extruder type: square barrel, round barrel
Description
Product Detail
Automatic Corn Chips Production Line
Corn chips production line uses flour, cornstarch, and wheat flour as main raw materials to produce particles of various shapes, such as shell type, screw type, Spiral, tubular particles. After these granules are fried and seasoned with different seasonings, they become crispy and delicious snack food.
Raw Material
Corn flour, wheat flour, rice flour, corn starch and other grains flour etc.
Product Dample

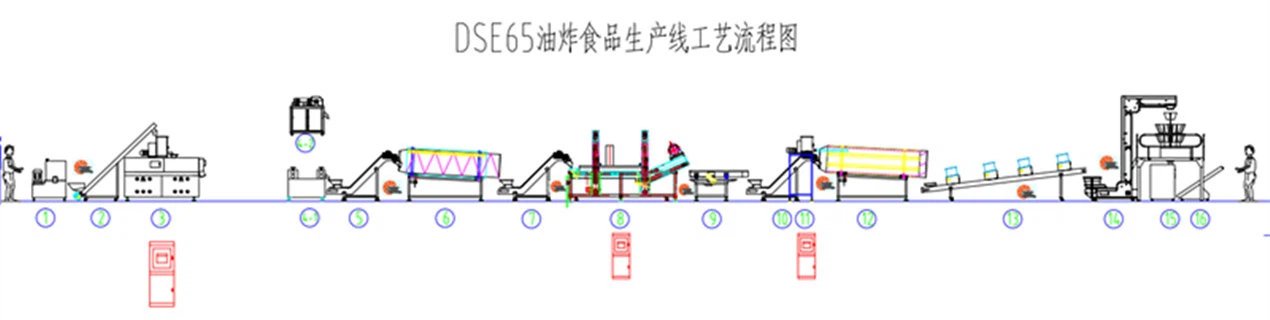

Flow Chart
Mixer → Screw conveyor → Extruder → Cutting machine → Hoister → Fryer → Vibration → Deoiling → Hoister → Single roller → Cooling → Packing machine
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Output |
Size of production line |
|
DSE 65 |
74 kw |
52 kw |
100-150 kg/h |
17x1.3x2.2(m) |
|
DSE 70 |
105 kw |
75 kw |
200-260 kg/h |
20x1.5x2.2(m) |
|
DSE 85 |
205kw |
150 kw |
350-500kg/h |
30x1.5x2.6(m) |
Introduction of Extruder
Twin-screw extruder consists of feeding system, extrusion system, cutting system, heating system, lubrication system and control system.
1. Frequency conversion speed regulation, which can be adjusted according to the state of the material.
2. Forced lubrication system to ensure smooth transmission.
3. Self-cleaning function, stop without removing the screws.
4. Use the control cabinet to control the heating zone temperature and motor speed.
Main Machine Details
(The accessories of fried snack making machine are made of well-known brands. We can also customize them according to your needs of machine materials and electrical parts brands.)
Mixer
To mix the raw materials evenly, fast speed, no leakage.
Type: Vertical and horizontal type
Motor: 3kw, 4kw, 7.5kw etc.
Material: stainless steel
Extruder (Square barrel type)
Model: DSE65F, DSE 75F, DSE85F
Capacity: 100kg/h to 500kg/h
Material: stainless steel
Cutting machine
Forming
Easy to operate
Material: stainless steel
Fryer
Frying the food continuously
Material: stainless steel
Our Engineers
Our engineer can design plant layout based on your factory condition.
Why Choose Us?
1. If you don’t know about the corn flakes production line in the early stage, we will provide different plans according to your budget, and will also send you the most perfect plan for your reference.
2. If you have any ideas about the production line, we can communicate together, we are a factory, we can definitely meet your needs.
3. Our machines have exported to many countries in the world, such as the United States, Germany, Russia, South Korea, Pakistan, India and so on. All customers are satisfied with our machines and services, and will choose to buy from our company again when they need it.
4. After we complete the production of the machine, we will debug and inspect the equipment to ensure that the machine is qualified before leaving the factory.
Packing & Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
• Shipping, train, express, or upon clients' demands.
