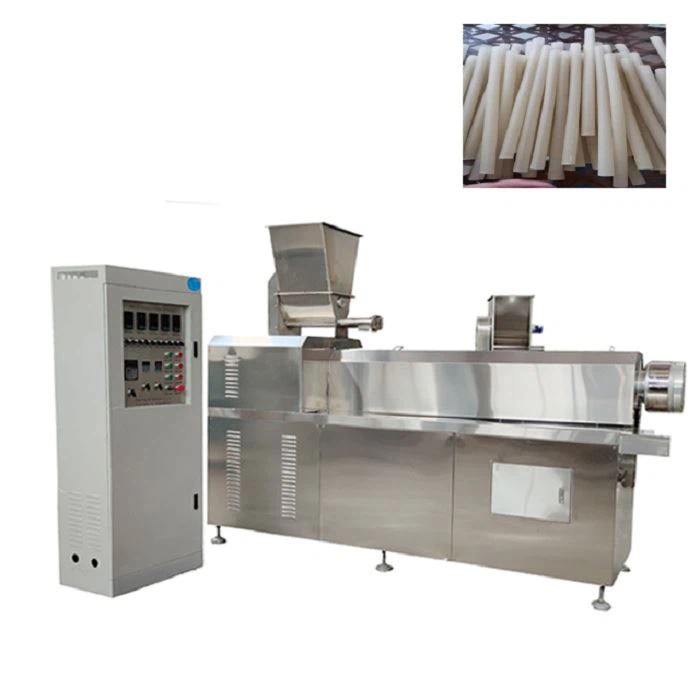

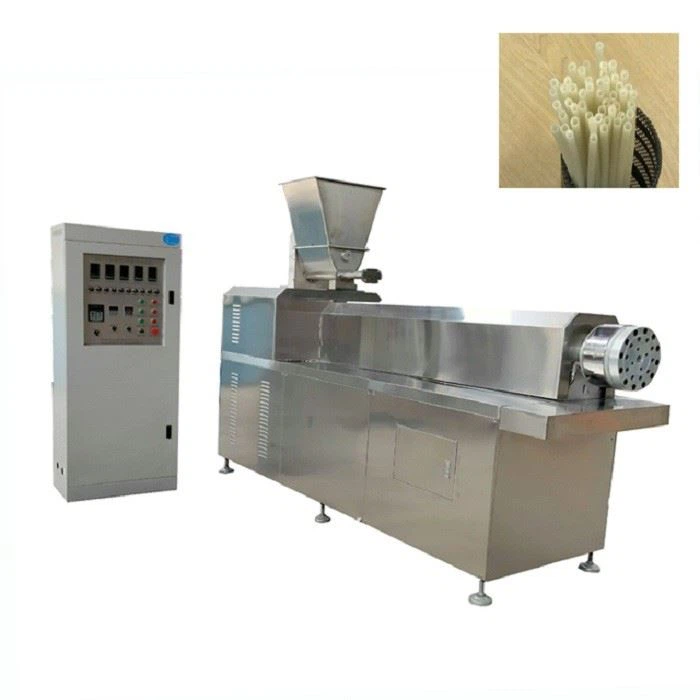

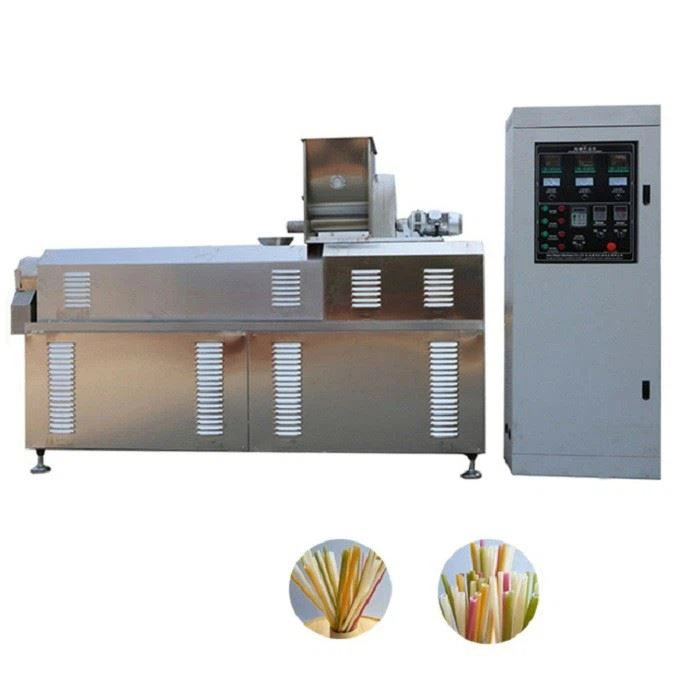

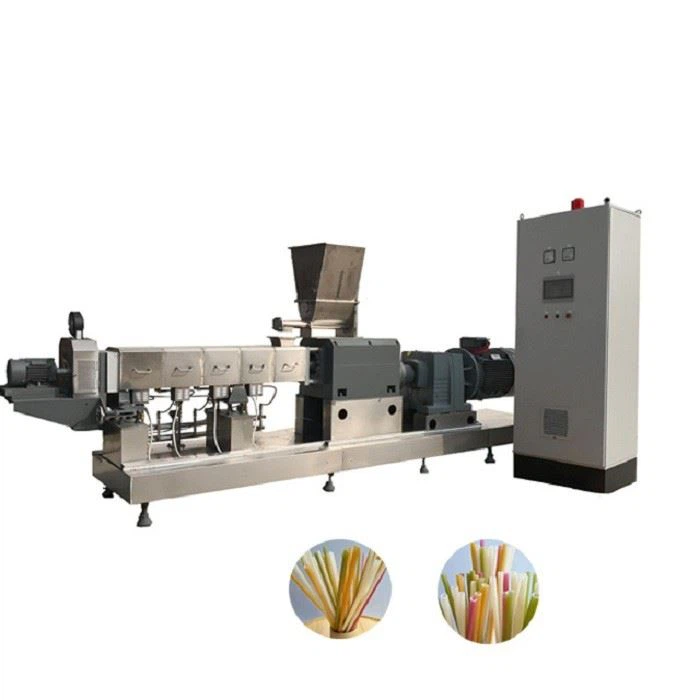

Automatic Rice Straw Making Extruder Machine
Certification: CE SGS ISO
Bearing brand: NSK/IKO
Main motor brand: Siemens or Chinese brand
Capacity: 250-300 kg/h
Voltage: three phase 380v 50hz(can be customized)
Barrel type: square barrel/round barrel
Main motor: 75kw
Screw type: combined screw
Description
Products Description
The degradable and edible rice straw production line machine is a new type of bio-based and renewable biodegradable material, which is made of starch raw materials proposed by renewable plant resources (such as corn, cassava, etc.). The starch raw material is saccharified to obtain glucose, and then fermented by glucose and certain strains to produce high-purity lactic acid, and then synthesize polylactic acid with a certain molecular weight by chemical synthesis. It has good biodegradability. After use, it can be completely degraded by microorganisms in nature under specific conditions, and finally produces carbon dioxide and water without polluting the environment. This is very beneficial to protecting the environment and is recognized as an environmentally friendly material.
Product Samples
The automatic rice straw machine uses rice flour and cassava flour as the main raw materials. After a lot of verification, it does not affect the absorption of fluid milk products, that is, it will not melt, and it can be eaten without pollution and can achieve the purpose of environmental protection.
Production Line Process
1. The single-screw extruder consists of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a control system, and is mainly used for the processing of rice straws.
2. The feeding system, drive system and rotary cutting system of the extruder all adopt frequency conversion speed regulation, with strong power and balanced operation.
3. The extruder screw, barrel and mold are all designed with a circulating cooling system to ensure the temperature balance of the raw materials during extrusion.
4. According to different raw materials, choose single or double screw feeding system, the feeding is uniform, stable and reliable.
Production Line Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
SSE100 |
77kw |
50kw |
100-150kg/h |
2900*880*1900mm |
|
SSE120 |
108kw |
75kw |
200-260kg/h |
21000*1300*2200mm |
|
DSE75F |
160kw |
75kw |
250-300 kg/h |
25000*1500*2400mm |
Machine Details
Mixer
Motor power: 3/4/7.5kw
Output: 25/50 /100 kg/time
Mixing time: 3-5 min/time
Material: stainless steel
Single screw SSE100 extruder
Model: SSE100
Main motor: 30kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Heating power: 18kw
Capacity: 100-150kg/h
Size: 2900*880*1900mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Cutting machine
Motor power: 0.37kw
Cutting motor: 0.75kw
Capacity: Match with the extruder
Material: Stainless steel
Size: 2000x800x1000mm
Main motor: 0.37 kw
Output: 0-500kg
Cool motor: 0.72kw
Material: Contact material is stainless steel
Function: Lower the temperature of the food, easy to package.
Electric hot air circulation oven
Main power: 20kw
Size: 2000*1200*1400mm
Circulating fan: 4 * 0.25kw
Material: The contact material part is stainless steel
(1) The single-screw extruder consists of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a control system, and is mainly used for the processing of rice straws.
(2) The feeding system, drive system and rotary cutting system of the extruder all adopt frequency conversion speed regulation, with strong power and balanced operation.
(3) The extruder screw, barrel, and mold are all designed with a circulating cooling system to ensure the temperature balance of the raw materials during extrusion.
(4) According to different raw materials, single or double screw feeding system is selected, and the feeding is uniform, stable and reliable.
(5) The screw is processed by special technology, which is wear-resistant, anti-fatigue and has a long service life.
(6) Different screw length-to-diameter ratio structures meet different process requirements.
Our Service
1. Provide you with professional consultation on market, equipment, technology, raw materials, packaging and other aspects.
2. Assist you in equipment selection, process design, plant layout optimization, and door-to-door service if necessary.
3. According to your products, we can design a compensation plan for raw material changes and conduct on-site demonstrations. Various basic formulations are available.
4. According to your needs, special design, manufacture and application test can be carried out, and targeted training can be provided.
5. Design a reasonable packaging and transportation plan for you, handle transportation on behalf of you, and send technical personnel to install and debug and train personnel.
6. The equipment is guaranteed for one year, with long-term discounts and spare parts.
About Packing & Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
• Shipping, train, express, or upon clients' demands.
