Automatic Rice Straw Machine
Certification: CE SGS ISO
Bearing brand: NSK/IKO
Main motor brand: Siemens or Chinese brand
Capacity: 250-300 kg/h
Voltage: three phase 380v 50hz(can be customized)
Barrel type: square barrel/round barrel
Description
Products Description
Rice straw is a new type of edible green straw product. The main raw materials are rice and cassava (cassava is the raw material for making pearls in pearl milk tea), and it is produced by extrusion extrusion process. The appearance of rice straws is not much different from that of ordinary straws. The surface has a frosted texture, which is strong and tough. The rice straw can adjust the color of the rice straw according to different ingredients. The color is rich. It can be soaked in cold drinks for 5-8 hours, and can be soaked in hot drinks for 1-3 hours to meet the needs of various drinks. The rice straw can be completely degraded, and the degradation speed is fast, it does not pollute the environment, and meets the requirements of the laws and regulations of green environmental protection in many countries.
Product Samples

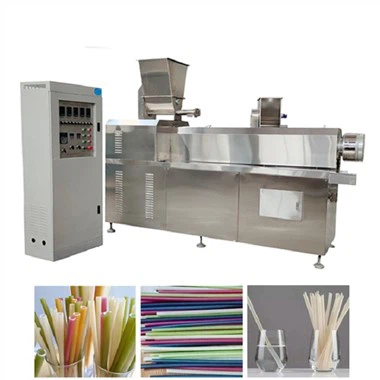

The rice straw forming machine is composed of a feeding system, a drive system, a rotary cutting system, etc. It adopts frequency conversion speed regulation and has the characteristics of strong power and balanced operation; the extruder is equipped with a water cooling system to ensure the temperature balance of the raw materials during extrusion; for different Raw materials, single selection, twin-screw feeding system, uniform feeding, stable and reliable; the screw is processed by a special process, wear-resistant, and has a long service life; different screw length-to-diameter ratio structures meet different process requirements.
Production Line Process
Mixer: mix all the raw materials evenly
Screw Conveyor: Convey mixed raw materials to extruder
Twin screw Extruder: Extrude rice straw,through change the moulds to make different size rice straw
Cooling and cutting machine: Cutting the needed rice straw length.
Dryer: Dry the moisture of rice straw,usually 60-80℃,so that rice straw can be storage for a long time.
Production Line Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
SSE100 |
77kw |
50kw |
100-150kg/h |
2900*880*1900mm |
|
SSE120 |
108kw |
75kw |
200-260kg/h |
21000*1300*2200mm |
|
DSE75F |
160kw |
75kw |
250-300 kg/h |
25000*1500*2400mm |
Machine Details
Mixer
Single screw SSE100 extruder
Cutting machine
Cooling machine
Dryer
Our Service
1. We can design machine layout for you according to your factory drawing.
2. We can send you rice straw formula,so that can help you make this project smoothly.
3. About installation,if you need,we can send engineer to your factory to help install machine,We also can provide you installation videos and documents to help install,provide video call and online service at any time.
About Packing & Shipping
Plastic film package or wooden box,but will make sure machines safety when delivery.
