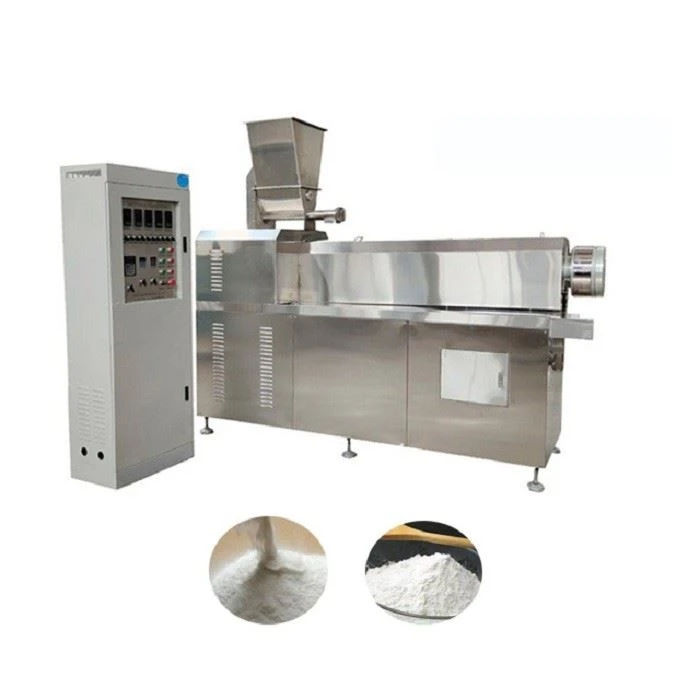

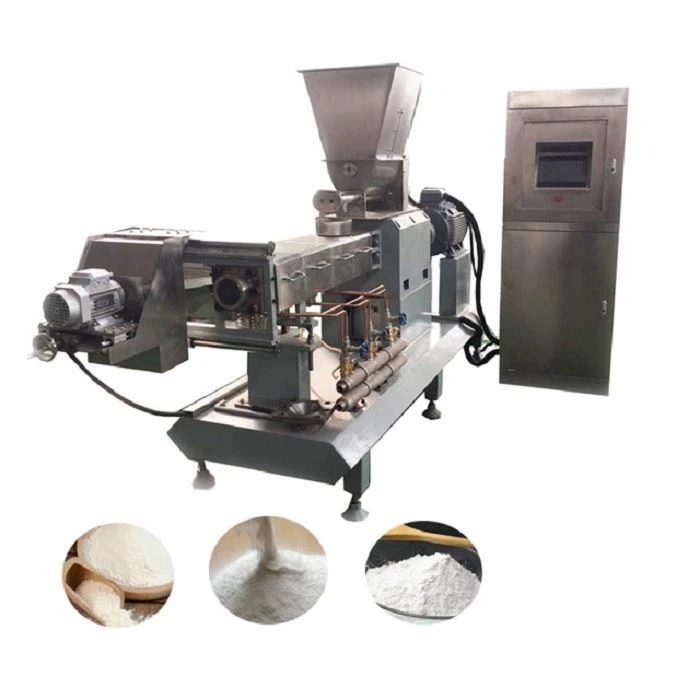

Twin Screw Extruder For Modified Starch
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Inverter brand: Delta/Pioneer/Schneider
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Screw material: 38CrMoAl/12CrMoV/6542
Description
Product Features
Pregelatinized starch is a kind of natural starch as raw material, which has been denatured and improved. It has many important properties, including: solution thickening, good water solubility, suspension or colloidal stability, protective colloid effect, film forming, water retention, adhesive performance, non-toxic, tasteless, biocompatibility, touch Transgender etc. In the construction industry (pellet binder, briquette binder common
Interior wall putty powder, gypsum-based putty powder, wallpaper glue, etc.) can improve construction performance.
1. Good rapid thickening ability and certain water retention.
2. The dosage is small, and a very low dosage can achieve a high effect.
3. Improve the anti-sliding ability of the material.
4. Improve the operating performance of the material. Compared with ordinary pregelatinized starch, the construction operation is smoother, the hand feels easy, it is not sticky or sinking, and it is easy to apply thick and smooth.
5. Extend the opening time of materials.
Product Samples
Production Line Flow Chart
Flow chart: Mixer--Screw conveyor--Extruder--Air conveyor--Dryer--Cooling conveyor--Mid hoister--Crushing unite
Production Line Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
DSE65 |
72kw |
50kw |
100-150kg/h |
19000*1300*2200mm |
|
DSE70 |
92kw |
65kw |
240-260kg/h |
14000*2000*4000mm |
|
DSE75F |
70kw |
50kw |
200-250kg/h |
32000*1100*1800mm |
Main Machinery
Model: DSE65
Main motor: 22kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Heating power: 10kw
Capacity: 100-150kg/h
Size: 19000*1300*2200mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Model: DSE70
Main motor: 37kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Oil pump: 0.37kw
Heating power: 20kw
Capacity: 200-250kg/h
Screw material: 38cCrmoAl
Model: DSE75F
Main motor: 37kw
Feeding: 0.75kw
Rotary cutting: 1.1kw
Heating power: 16kw
Capacity: 200-250kg/h
Size: 3200*1100*1800mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Our Advantage
The twin-screw extruder consists of feeding system, extrusion system, heating system, transmission system, rotary cutting system and control system. The main engine adopts advanced frequency converter speed regulation technology The technology makes the equipment more powerful and runs smoothly; the screw is made of wear-resistant high-alloy material and has a longer service life; the visual automatic temperature control system makes the temperature control more intuitive.
T
Our Certification
We have been in this industry for more than ten years and have obtained CE and SGS certificates
Technical Engineers
Our engineers have rich experience in testing and producing machines and are leaders in this industry. Under the leadership of engineers, we have mature technological processes and installation and commissioning services to ensure that we provide customers with satisfactory services.
FAQ
Q: What if there is a problem with the machine that we can't solve by ourselves?
A: You can contact our sales staff at any time, we will consult engineers for you. If you need, our engineers can also go to your local area to help you solve the problem
Q: Do you have any certifications?
A: We have CE, SGS, BV certifications.
Q: What is your payment terms ?
A: 30% T/T in advance, 70% balance before shippment after inspection.
Q: Do you have your own factory?
A: Yes, we have. Welcome to visit our factory!
About Packing & Shipping
• After the goods are produced and the final payment is received, we will arrange delivery as soon as possible. Customers can choose the mode of transportation (by sea, by train, by air, etc.), and we can also check the shipping cost for customers' reference.
