Modified Starch Making Machine
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Inverter brand: Delta/Pioneer/Schneider
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Screw material: 38CrMoAl/12CrMoV/6542
Description
Product Features
Modified starch is a type of starch that has undergone chemical or physical treatments to alter its properties. These modifications may include changes in its solubility, viscosity, stability, or gelatinization characteristics. Modified starch is commonly used in a variety of food applications as a thickener, stabilizer, emulsifier, or texture enhancer. It can improve the texture, appearance, and shelf life of processed foods while also providing functional benefits such as increased freeze-thaw stability, improved heat resistance, or reduced retrogradation. Some common types of modified starch include pregelatinized starches, cross-linked starches, acetylated starches, and hydrolyzed starches.
Product Samples
Pregelatinized starch is a kind of modified starch which is easy to process and widely used. When it is used, it only needs to be made into paste with cold water, which avoids the trouble of heating and gelatinizing. Widely used in many industries such as medicine, food, cosmetics, feed, oil drilling, metal casting, textile, paper making, etc.

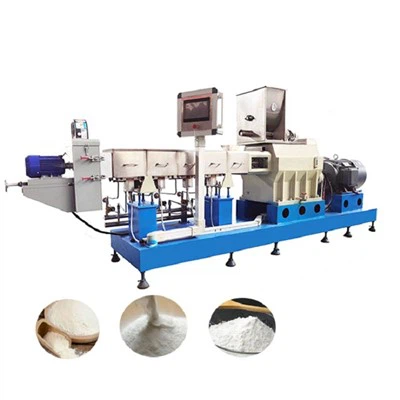

Production Line Picture
Flow chart: Mixing-Extruder-Cooling-Drying-Crushing
Production Line Video
Machinery Parameter
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
DSE65 |
73kw |
53kw |
100-150kg/h |
19000*1300*2200mm |
|
DSE70 |
95kw |
64kw |
240-260kg/h |
14000*2000*4000mm |
|
DSE75F |
74kw |
5kw |
200-250kg/h |
32000*1100*1800mm |
Main Machinery
Model: DSE65
Main motor: 22kw
Capacity: 100-150kg/h
Size: 19000*1300*2200mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Function:Extrude pellet,so that can be crush to powder in the crushing unit.
Model: DSE70
Main motor: 37kw
Capacity: 200-250kg/h
Screw material: 38cCrmoAl
Model: DSE75F
Main motor: 37kw
Capacity: 200-250kg/h
Size: 3200*1100*1800mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Our Advantage
1. There have independent control cabinet,eay to operate and learning.
2. Special machine design for modified starch,to adapt product feasure,suitable for market.
3. Twin screw extruder easy to self cleaning,can customize combined screw for you according to your need,through adjust screw order to make different products.
Our Certification
We have passed CE and SGS certification,so we can make sure our machine quality.
Technical Engineers
FAQ
Q: How long it spend to delivery to our country?
A: Usually takes about 30days.But specific will according to your location
Q: What kind of certifications do you have?
A: We have CE, SGS, BV certifications.
Q: What is your payment terms.
A: Usually is 30% T/T in advance, 70% balance as balance payment before shippment after inspection.
Q: Are you a manufacturer or a trading company?
A: We are manufacturer with our own factory.Our factory location is Wande industial park,Changqing district,Jinan city,Shandong Province.China.
About Packing & Shipping
• After the goods are produced and the final payment is received, we will arrange delivery as soon as possible. Customers can choose the mode of transportation (by sea, by train, by air, etc.), and we can also check the shipping cost for customers' reference.
