Corn Starch Pregelatinized Production Machinery
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Electrical components: Schneider, Delta, or Chinese brands
Capacity: 400-500kg/h
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Screw type: Integral screw/combined screw
Extruder type: Twin screw extruder
Barrel type: Square barrel/round barrel
Description
Product Pictures
The production process of modified starch is a chemical process. The Corn Starch Pregelatinized Production Machinery combines the processes of conveying, mixing, temperature rise and pressure increase, shear melting, etc. to complete the thermochemical denaturation process of starch. Because it is completed on a single piece of equipment, it is easy to operate and occupies a small area, so its production capacity is higher than that of other equipment. The twin-screw extruder can continuously produce various modified starches without pollution. High blending efficiency, good process control, and uniform starch are the main advantages of twin-screw extruders. Therefore, the twin-screw extruder is an economical process for rapid and continuous production of modified starch.

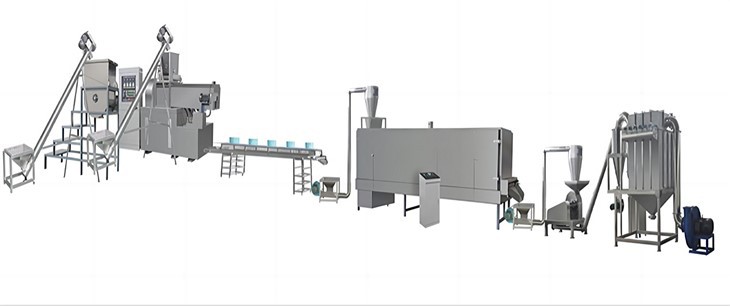

Production Line Picture
Production Line Video
Technical Parameters
The pre-gelatinized starch equipment produced by our company has been designed to adjust the machine cavity and screw structure, so that the functions of modified starch have been diversified. The modified starch products produced are suitable for textile, food, paper, building materials, casting, petroleum Drilling and other fields.
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
DSE65 |
72kw |
50kw |
100-150kg/h |
19000*1300*2200mm |
|
DSE70 |
92kw |
65kw |
240-260kg/h |
14000*2000*4000mm |
|
DSE75F |
70kw |
50kw |
200-250kg/h |
32000*1100*1800mm |
|
DSE85 |
108kw |
76kw |
400-500kg/h |
30000*1500*2600mm |
Main Machinery

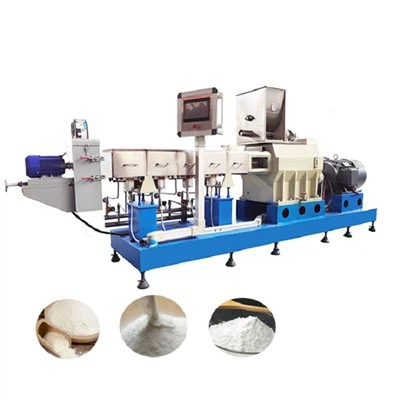

Extruder
Model: DSE65
Main motor: 22kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Heating power: 10kw
Capacity: 100-150kg/h
Size: 19000*1300*2200mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Air conveyor
Power: 1.1kw/1.5kw/2.2kw
Capacity: 0-2000kg/h
Material: Stainless steel
Dryer
Type: Electric type (we also have oil/gas type and steam type)
Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8
Capacity: 100kgh to 10tons/h
Material: Stainless steel
Milling machine system
Model: FS-480
Installed power: 15kw
Capacity: 100-300 kg/h
Dimension: 1.3*0.7*2m
Our Engineer
Our services
1. Introduce the production process to customers and configure appropriate production lines
2. If it is not convenient for the customer to visit the factory in person, we can arrange an online video tour of the factory or inspection
3. We can give away more free spare parts
4. We have long-term cooperation with reliable freight forwarders who can help customers transport goods
