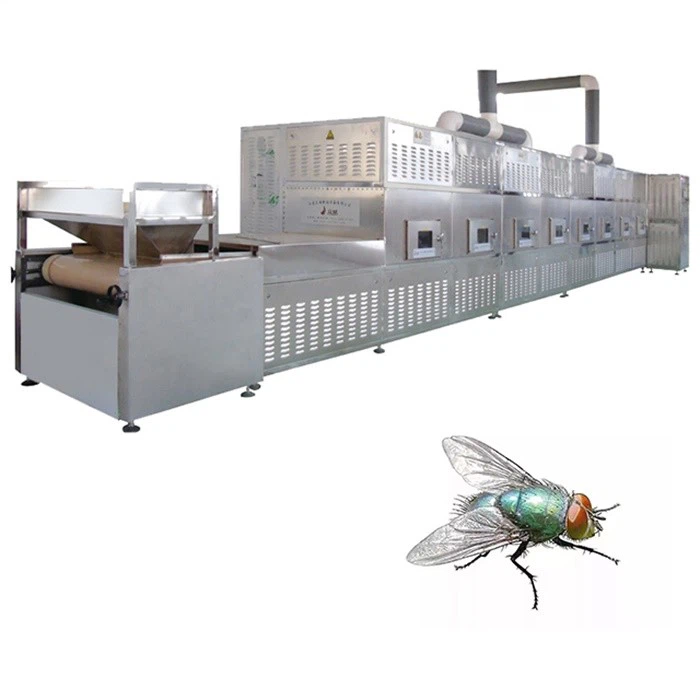

Insect Microwave Drying Equipment
Industrial microwave flowers dryer
1,Certification:CE
2,Electric component:Siemens or Chinese brand
3,Guarantee:12 months
4,Voltage:Can be customized according to your local voltage
5,Production Time:About 30days
Description
Product Description
Microwave equipment is widely used in food, pharmaceutical, wood, chemical, tea, ceramics, paper products and other industries, providing functions such as drying, heating, sterilization, greening, thawing, sintering, and extraction. Application structure: tunnel type, box type, cabinet type
Principle of Industrial Flower Microwave Drying Machine
Microwave drying is a new type of drying method. When drying, the microwave energy directly acts on the medium molecules and converts it into heat energy. Because the microwave has penetrating properties, the inside and outside of the medium can be heated at the same time without heat conduction, so the heating speed is very fast. For foods with a water content below 30%, the drying speed can be shortened. Hundreds of times. At the same time, regardless of the shape of the object, since the inside and outside of the medium of the object are heated at the same time, the temperature difference between the inside and outside of the material is small, and the heating is uniform, and there will be no external coke and internal growth in conventional heating, which greatly improves the drying quality.
Product Video
Machine Parameters
|
Machine model |
Power (kw) |
Sterilization capacity (kg/h) |
Dehydration rate (kg/h) |
Size (mm) |
|
SF-20HMV |
20 |
190-240 |
16-20 |
8640*1220*2200 |
|
SF-30HMV |
30 |
300-380 |
24-30 |
10960*1200*2200 |
|
SF-40HMV |
40 |
390-500 |
30-40 |
10960*1500*2200 |
|
SF-50HMV |
50 |
500-630 |
40-50 |
12120*1500*2200 |
|
SF-60HMV |
60 |
600-700 |
48-60 |
13200*1500*2200 |
|
SF-80HMV |
80 |
800-1000 |
64-80 |
13280*1700*2200 |
|
SF-100HMW |
100 |
1000-1250 |
80-100 |
15600*1700*2200 |
|
SF-150HMV |
150 |
1500-1850 |
120-150 |
17920*1900*2200 |
|
SF-200HMW |
200 |
2000-2500 |
160-200 |
22560*1900*2200 |
Product Sample
Machine Details
- Flexible and customized conveyor belts
- Easy-to-operate PLC control system, saving labor
Machine Advantage
- Sterilization and alcoholization effect: Microwave treatment can obtain excellent insecticidal effect. When the water content in tea and flowers is less than 12%, it is beneficial to enhance the insecticidal effect, so that the mold in it will not survive and prevent Mildew effect.
- Cell wall breaking effect: Microwave drying and killing green tea has the effect of cell wall breaking, which improves the extraction rate of effective ingredients.
Our Company
Shandong Forward Machinery Co., Ltd. is a high-tech enterprise integrating research and development, sales, design, production and service of industrial microwave machines and extrusion equipment. The company has advanced production equipment and an excellent technical team, and is a professional manufacturer of extruders and microwave equipment with a large scale and strong technical strength.
Customer Service
We exported the machines to many countries all around the world, such as Nigeria,Zambia,South Africa,Mexico,India,Thailand etc. All the customers speak highly of our machines and service, and have many old customers all over the world.
FAQ
Q: How long is your production time?
A: Takes about 30days.
Q: Could you Provide me machine details?
A: Sure,i will manage all the machine information for you accordingly
Q: What is your guarantee?
A: We provide 12 months guarantee for machines.
Packing and Delivery
Different package can be customized accordingly,suitable for long distance delivery,protect machine very well.
