Flower Microwave Drying Equipment

Industrial microwave flowers dryer
1,Certification:CE
2,Electric component:Siemens or Chinese brand
3,Guarantee:12 months
4,Voltage:Can be customized according to your local voltage
5,Production Time:About 30days

Description
Product Description



Microwave equipment can be used for drying of flowers, plastic flowers, multi-headed chrysanthemums, acacia beans, roses, black magic, gerbera, lilies, carnations, craft flowers, etc. It can also be used for drying condiments, spices, medicines, tea, etc.



Principle of Industrial Flower Microwave Drying Machine

Microwave can instantly penetrate the material to be heated, and it only needs to be heated for a few seconds to a few minutes without preheating. Stopping heating is also instantaneous without residual heat. Microwaves generate heat due to dielectric loss. Objects with a large dielectric loss coefficient selectively absorb microwaves, and parts that do not need to be heated will not absorb microwaves, avoiding meaningless heating; because the heated object is heated, the surrounding air and The device does not heat and will not cause heat loss, so the thermal efficiency is high; because all parts of the heated object generate heat at the same time, the inside and outside of the entire object can be heated evenly, and there will be no large temperature difference between the surface and the inside of the object due to general conduction heating; equipment The power is continuously adjustable, and the heating state can be adjusted at any time; in addition to the effect of rapid heating, microwaves can also cause water molecules and dye molecules to vibrate, and promote the dissolution and diffusion of dyes.

2



Product Video





Machine Parameters



Machine model

Power (kw)

Sterilization capacity (kg/h)

Dehydration rate (kg/h)

Size (mm)

SF-20HMV

20

190-240

16-20

8640*1220*2200

SF-30HMV

30

300-380

24-30

10960*1200*2200

SF-40HMV

40

390-500

30-40

10960*1500*2200

SF-50HMV

50

500-630

40-50

12120*1500*2200

SF-60HMV

60

600-700

48-60

13200*1500*2200

SF-80HMV

80

800-1000

64-80

13280*1700*2200

SF-100HMW

100

1000-1250

80-100

15600*1700*2200

SF-150HMV

150

1500-1850

120-150

17920*1900*2200

SF-200HMW

200

2000-2500

160-200

22560*1900*2200



Product Sample

product-1270-400

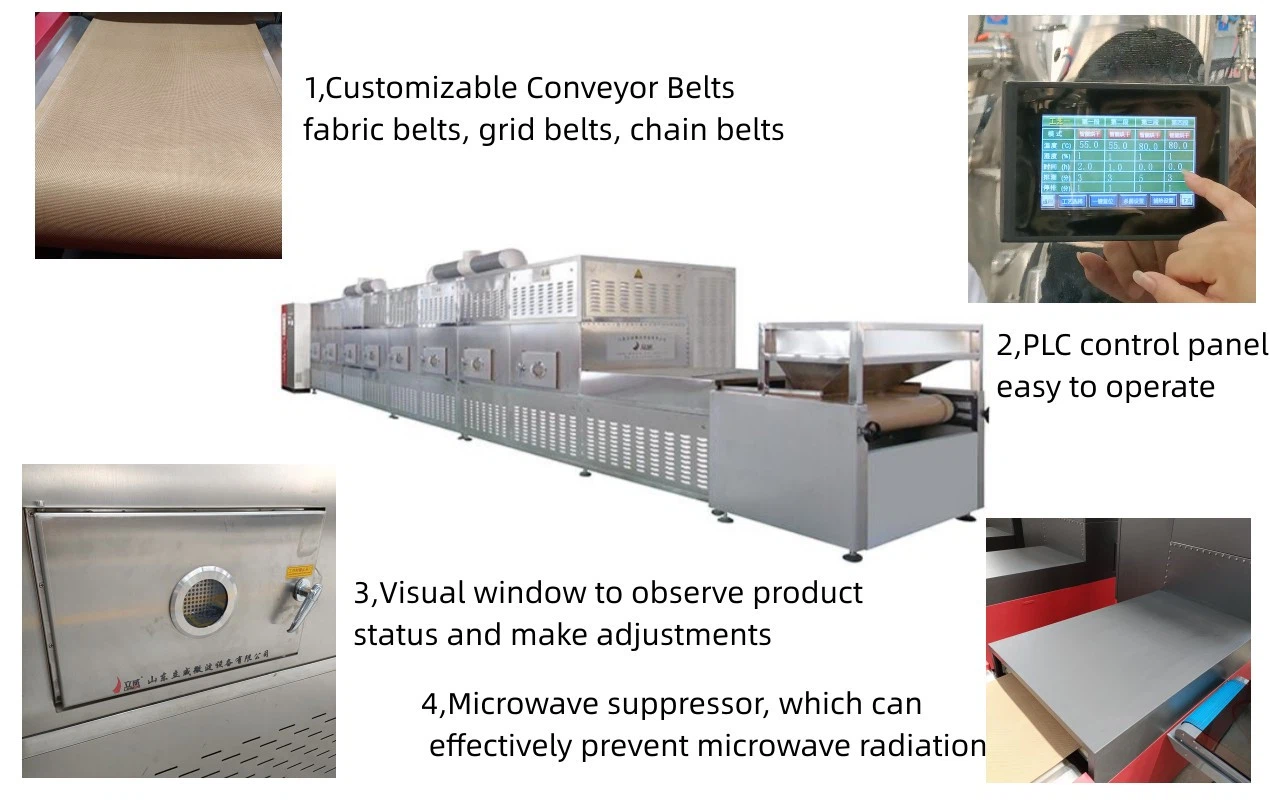

Machine Details

product-1270-800

  1. Flexible and customized conveyor belts
  2. Easy-to-operate PLC control system, saving labor



Machine Advantage



  1. Sterilization and alcoholization effect: Microwave treatment can obtain excellent insecticidal effect. When the water content in tea and flowers is less than 12%, it is beneficial to enhance the insecticidal effect, so that the mold in it will not survive and prevent Mildew effect.
  2. Cell wall breaking effect: Microwave drying and killing green tea has the effect of cell wall breaking, which improves the extraction rate of effective ingredients.



Our Company

Shandong Forward Machinery Co., Ltd. is a high-tech enterprise integrating research and development, sales, design, production and service of industrial microwave machines and extrusion equipment. The company has advanced production equipment and an excellent technical team, and is a professional manufacturer of extruders and microwave equipment with a large scale and strong technical strength.

product-1270-800



Customer Service

We exported the machines to many countries all around the world, such as Nigeria,Zambia,South Africa,Mexico,India,Thailand etc. All the customers speak highly of our machines and service, and have many old customers all over the world.

product-1270-500



FAQ

Q: How long is your production time?

A: Takes about 30days.

Q: Could you Provide me machine details?

A: Sure,i will manage all the machine information for you accordingly

Q: What is your guarantee?

A: We provide 12 months guarantee for machines.



Packing and Delivery

Different package can be customized accordingly,suitable for long distance delivery,protect machine very well.

product-1270-693
