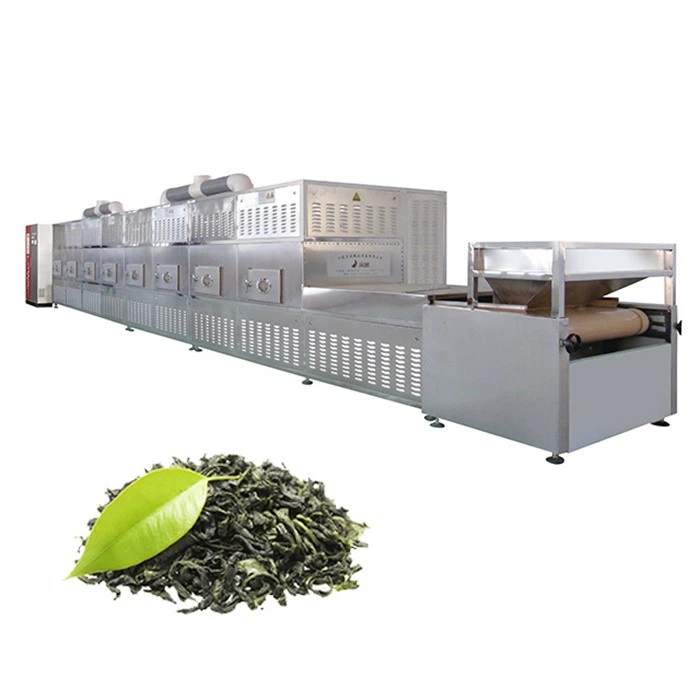

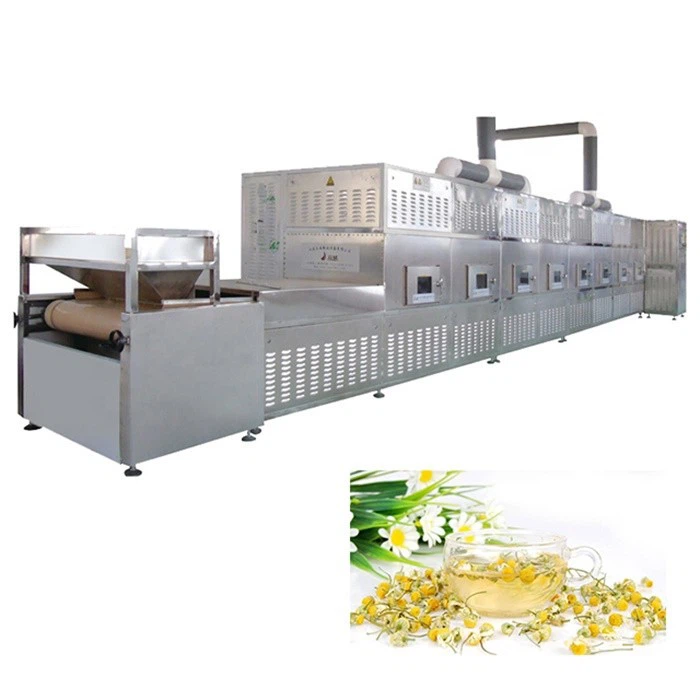

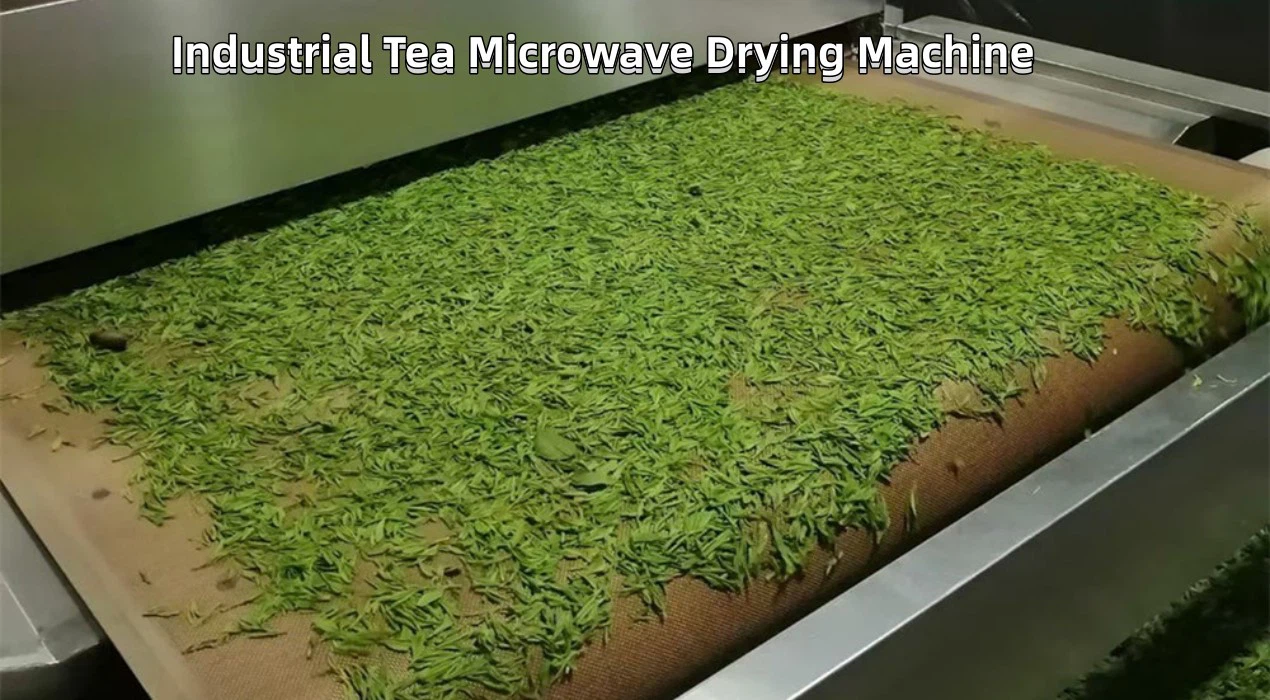

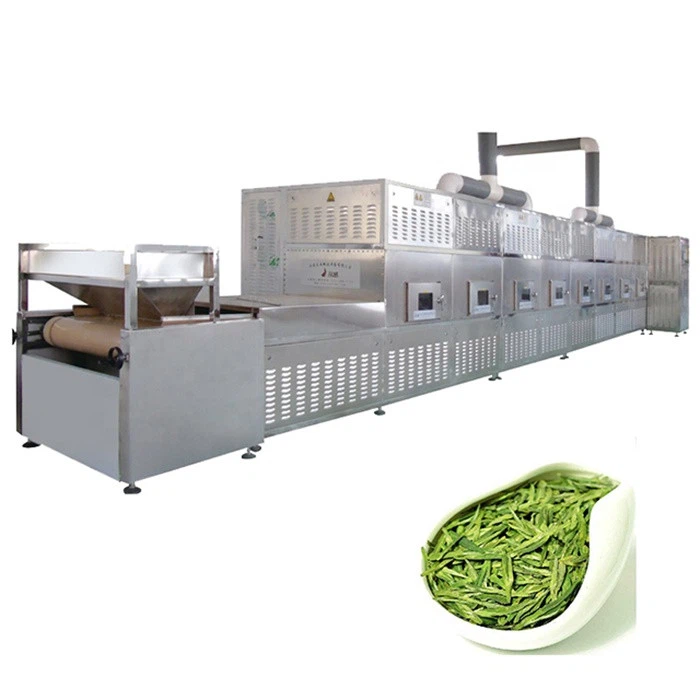

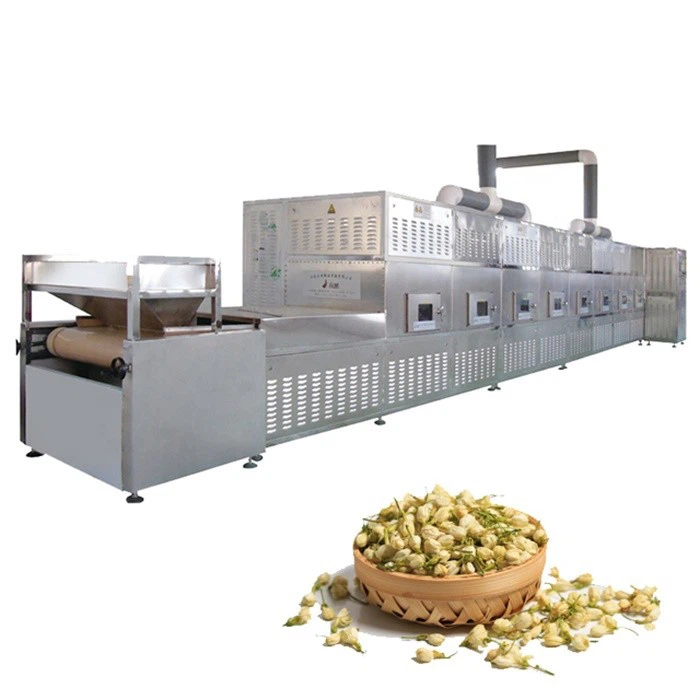

Industrial Tea Microwave Drying Machine



According to the drying method, the tea drying and greening machine can be divided into microwave drying, hot air drying, metal conduction drying and radiation drying. Different drying methods result in different quality tea leaves due to differences in heat transfer, heating methods, leaf temperature fluctuations, and evaporation rates.

From hand-made tea to machine-made tea, from firewood heating to microwave heating, and then to the popularization of microwave tea drying and finishing machines, modern microwave drying and finishing technology gradually replaces manual labor. The advancement of science and technology drives the development and different fields innovation





(1) The drying temperature of tea leaves is generally controlled at 80°~130°, and the items in the vertical multi-layer drying box are dehydrated and dried layer by layer, and finally the wet air is directly emptied from the top layer, and the contact time between the wet air and the items is very short (5 seconds to 12 seconds), and at the same time, open the observation hole of each layer a little, and drain the moisture layer by layer at any time, so as to completely avoid the "retting" that occurs when the wet wind contacts with the object for a long time.

(2) The drying box has at least four layers of structure, which can be turned over in a cycle and dried layer by layer.

Compared with the traditional hot air dryer and Industrial Tea Microwave Drying Machine: the heating process of the general hot air dryer is external heating, the appearance is dry, and the heat transfer is inside. The direction of water diffusion and transfer is opposite to its direction, which affects the evaporation of water. However, microwave heating is internal heating, and the heating speed is fast. Therefore, in the drying process of Industrial Tea Microwave Drying Machine, the water transfer speed of the inner layer is faster, and the drying speed is faster than hot air drying, which has the advantages of high drying speed, energy saving and environmental protection, high production efficiency, uniform drying, clean production, and easy realization. The advantages of automatic control and improvement of product quality have attracted more and more attention in various fields of drying.









Machine model	Power (kw)	Sterilization capacity (kg/h)	Dehydration rate (kg/h)	Size (mm)
SF-20HMV	20	190-240	16-20	8640*1220*2200
SF-30HMV	30	300-380	24-30	10960*1200*2200
SF-40HMV	40	390-500	30-40	10960*1500*2200
SF-50HMV	50	500-630	40-50	12120*1500*2200
SF-60HMV	60	600-700	48-60	13200*1500*2200
SF-80HMV	80	800-1000	64-80	13280*1700*2200
SF-100HMW	100	1000-1250	80-100	15600*1700*2200
SF-150HMV	150	1500-1850	120-150	17920*1900*2200
SF-200HMW	200	2000-2500	160-200	22560*1900*2200





1. Customizable conveyor Belts, fabric belts, grid belts, chain belts.
2. PLC control cabinet, easy to operate.
3. Visual window to observe product status and make adjustments.
4. Microwave suppressor, which can effectively prevent microwave radiation.



1. Fast heating speed: Microwaves directly heat the inside and outside of tea leaves and flowers at the same time, without preheating, and can be processed after turning on the machine. In traditional production, there is a preheating process, which affects the heating speed.
2. Uniform heating: microwave drying is to irradiate the tea leaves and flowers evenly through the electromagnetic waves generated by the magnetron, and heat the inside and outside at the same time, without burnt leaves, burnt edges, broken residues, etc., and the product quality is good; The temperature is not too high, the change of chlorophyll is less, the color is green and durable, the loss of fragrance is less, and the drying is even.
3. Sterilization and alcoholization effect: Microwave treatment can obtain excellent insecticidal effect. When the water content in tea and flowers is less than 12%, it is beneficial to enhance the insecticidal effect, so that the mold in it will not survive and prevent Mildew effect.
4. Cell wall breaking effect: Microwave drying and killing green tea has the effect of cell wall breaking, which improves the extraction rate of effective ingredients.
5. Improve work efficiency: The microwave tea drying and fixing machine adopts automatic loading and unloading. The operator only needs to press the button to monitor the operation of the equipment and inspect the degree of finishing of the tea. The whole finishing and drying process only needs 1-2 people.
6. Pollution-free and environment-friendly equipment: Microwave de-greening and drying, has the functions of sterilization and alcoholization, and this machine equipment does not cause high temperature, smoke and noise in the environment. It is an ideal pollution-free, "energy-saving and emission-reducing "Environmentally friendly equipment.



Shandong Forward Machinery Co., Ltd. is a high-tech enterprise integrating R&D, sales, design, production and service of industrial microwave machine and extrusion equipment. The company specialises in the production of microwave dryers, microwave sterilisers, vacuum machines, puffed snack food production lines, core filling snack food processing lines, pasta production lines, artificial rice production lines, pet food production machines, fish feed production lines and so on. The company has advanced production equipment and excellent technical team, is a large, strong technical strength of the extruder machine and microwave equipment professional manufacturers.



We exported the machines to many countries all around the world, such as ltaly, Bolivia, Russia, Turkey, Australia, Indonesia, India etc. Almost all the customers speak highly of our machines and service, and own many old customers from all over the world.

1. One year complete warantly.

2. Free consulation serivice before during and after sales.

3. Provide basic prodution techniques and formules.

4. Overseas installation and traning of equipment maintance and operating personally.

5. Debugging and inspecting of equipment until everything is functional before leaving the factory.



Q: How long is your delivery time?

A: Generally speaking, it is 7-10 days if the machines are in stock. Or it is 30 days if the goods are out of stock.

Q: Could you supply all the parameters about the tea Microwave Drying Sterilizing Machine Equipment?

A: Of couse. We are delighted to supply all the informtion that you want to know.

Q: How about the after sale service?

A: We will send our engineers to your factory for installation and training.

Q: How should I know the process of manufacturing if we pay the down payment?

A: We will supply you an exact delivery time as soon as we received your deposit. During the manufacturing, we will make reports for you to let you know the process.



Stretch film packaging or wooden box packaging, according to customer needs, can be customized.
