Fish Food Extruder

Shandong Forward Machinery Co., Ltd. is a leading manufacturer specializing in high-quality fish feed production equipment. With extensive industry experience, we have established ourselves as a trusted provider of innovative and reliable solutions; our advanced equipment is designed to meet diverse production needs while ensuring efficiency, durability, and superior performance.

Solutions for other production capacities:

100–150 kg/h, 200–250 kg/h, 300–500 kg/h, 600–800 kg/h, 800–1000 kg/h, 1200–1500 kg/h, 1500–2000 kg/h, 2000–3000 kg/h, 3000–4000 kg/h, 4000–5000 kg/h, 9000–10,000 kg/h, 14,000–15,000 kg/h.





Our company offers a complete fish feed production line covering all essential stages: from ingredient dosing, grinding, and mixing to extrusion, pelleting, drying, coating and flavoring, cooling, and final packaging. Each unit in the production line is designed to ensure high efficiency, consistent quality, and optimal nutritional value in the finished product.

Recognizing that production needs vary from client to client, we offer flexible solutions, allowing you to discuss specific units tailored to your actual requirements with us. Our expert engineers are available to customize equipment and develop detailed flow diagrams, helping you clearly visualize the entire production process.

In addition to the main machinery and equipment, we supply a wide range of auxiliary systems-such as steam and compressed air supply systems-to provide a complete, integrated solution. Whether you are installing a new production line or upgrading an existing facility, our integrated fish feed manufacturing solutions are designed to increase your production capacity and enhance product quality.

	Name	Quantity	Model
1	Receiving Hopper	1	JLD
2	Pulse dust removal	1	CCQ
3	Bucket elevator	1	TSJ
4	Primary sieve	1	CQS
5	Magnetic barrel	1	YCT
6	Bucket elevator	1	TSJ
7	Screw conveyor	1	LXSL
8	Autobatching system	1	ZDPL
9	Mixer	1	BFJ
10	Bucket elevator	1	TSJ
11	Magnetic barrel	1	YCT
12	silo	1	LC
13	Grains milling machine	1	FSJ
14	Bucket elevator	1	TSJ
15	Permanent magnet barrel	1	YCT
16	silo	1	LC
17	Pneumatic valves	1	QDKG
18	controller	1	KZG
19	Mixer	1	BFJ
20	Transfer silo	1	HCC
21	Plat Form	1	PT
22	Bucket elevator	1	TSJ
23	Double-axis preconditioner	1	TZQ
24	DSE95 extruder	1	PHJ
25	negative air conveyor	1	FYFS
26	Steam dryer	1	ZQKX
27	Z type Hoister	1	ZTSJ
28	Double layers Vibration Sieve	1	SCZD
29	Stainless Steel mesh Belt Hoister	1	ZTS
30	Flavoring Roller	1	TWT
31	Double tank sprayer	1	STPYJ
32	Z type Hoister	1	ZTS
33	Counter current cooler	1	NLLQ
34	Z type Hoister	1	ZTS
35	Packing Machine	1	BZJ





Our company offers various solutions for fish feed production lines. Based on customer needs and local conditions, we can develop a tailored production plan to design the most suitable line, thereby helping you successfully carry out your projects.



1. Project Type: Fish feed production plant in Russia (Capacity: 2–2.5 tons/hour)

Extruder Model: Twin-screw extruder DSE95

Project Overview

Client Profile: The client operates a local grain processing plant with an abundant supply of raw materials and recognized the immense potential of fish feed production. They commissioned us to develop a customized solution; following approximately six months of consultation and negotiation, the production line plan was finalized. The plant is currently operating smoothly, and the client is highly satisfied with the project outcome.

B. Installation and Commissioning: 40–50 working days.

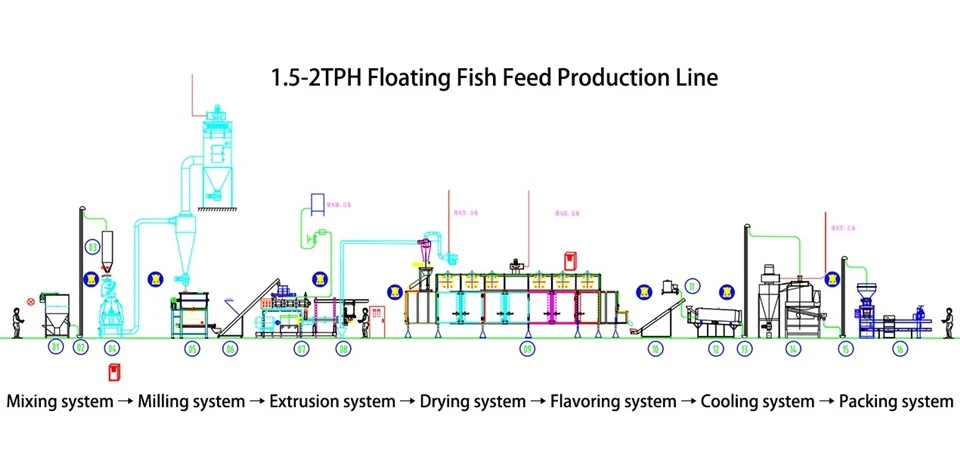

C. Production Process Flow: Automatic Batching System → Primary Mixer → Grinding System → Secondary Mixer → Extrusion System → Drying System → Coating System → Cooling System → Packaging System





2.Project Type: 1-1.5 T/H fish feed machine in Uzbekistan

Extruder Model: DSE95 Twin Screw Extruder

Overview

A.Client Type: The client is a well-known local entrepreneur with multiple businesses. They planned to enter the fish feed production industry, so they contacted our company to discuss the production line's output and equipment configuration in detail. They also visited our company and were satisfied with the equipment quality. The client's production line has now been running smoothly for several days without any problems.

B. Installation and debugging: 20-30 working days.

C. Production process: Automatic batching system → Primary mixer equipment → Crushing equipment → Secondary mixer equipment → Extrusion equipment → Drying equipment → coating equipment → Cooling equipment → Packaging equipment





Q1: Is the production line easy for non-specialists to operate?

Yes, the system is designed for ease of use, featuring a central control system and a visual user interface; operators simply need to select parameters and control start/stop functions. We also provide free on-site training covering basic operation and troubleshooting. The system supports saving multiple configuration profiles that can be quickly recalled, thereby reducing the time and effort required to train non-specialist staff.

Q2: Can this production line adapt to varying production needs?

Absolutely. The line offers flexible configuration options: low-capacity models (400–500 kg/h) are suitable for startups, while high-capacity systems (3–4 tons/h) meet industrial-scale production demands. Existing lines can be upgraded by replacing key components (such as the extruder) without needing to replace the entire system, providing a cost-effective way to accommodate future increases in production volume.

Q3: What is the market outlook for the fish feed produced by this line?

The outlook is very promising; with the growth of the global aquaculture industry, the demand for nutritious, high-quality fish feed is steadily rising. The system is capable of producing specialty products-such as high-protein feed or formulas tailored to specific fish species-that align perfectly with current market trends. Furthermore, its efficient, low-cost production capabilities enable manufacturers to capitalize on opportunities and secure substantial profits in the rapidly growing global fish feed market.
