Automatic Fish Feed Pellet Machine Plant
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Voltage: 380v/50hz three-phase or customized.
4. Shapes: Clients' Demands.
5. Warranty: 1 Year.
6. Feed types: Floating & Sinking.
Description
description
As a kind of feed processing equipment, the wet type fish feed extruder can make fish pellets from corn, bean pulp, corp stalk, grass, rice hull, and so on. The wet-type fish feed extruder machine is widely used in making both floating fish feed and sinking feed pellets for aquaculture farms, feed mills, livestock farms, and poultry farms. Different from the dry type floating fish feed pellet mill, the wet type is equipped with a boiler that can continuously steam the materials to make pellets. it is a crucial machine for making high-quality fish feed pellets.
Product Video
Final Product Show
Most fish food pellets include animal protein and plant protein, Plant protein adopts corn flour, rice flour, wheat flour, soybean flour, and peanut cake powder..Animal protein includes fish meal, shrimp meal, crab meal, sleeve-fish meal, and so on. You can add another ingredient according to the local fish live requirements.
flow chart

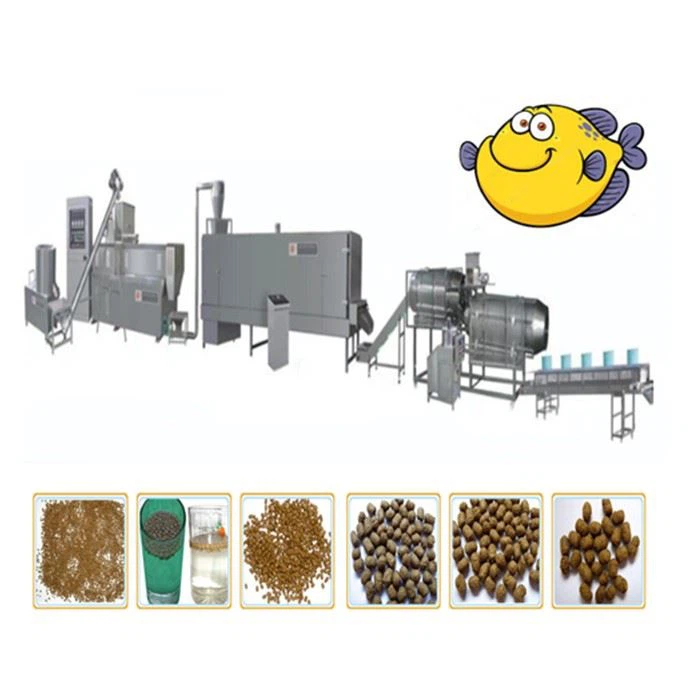

The fish food processing line is suitable for making dry fish food pellets (catfish, aquarium, Tilapia, Freshwater fish tropical fish, etc.)
① Mixer ② Screw conveyor ③ Twin-screw extruder ④ Air conveyor ⑤ Dryer ⑥ Single-drum flavoring line ⑦ Cooling machine ⑧ Packing machine
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Machine Details
Name: DSE65 double screws extruder
Main motor: 22kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 12kw
Output: 100~150kg/h
Screw length: 1280mm
Screw diameter: 65mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Name: DSE70 double screws extruder
Main motor: 30kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 14kw
Output: 200~250kg/H
Screw length: 1520mm
Screw diameter: 70mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Name: DSE75 double screws extruder
Main motor: 37kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 14kw
Output: 300~350kg/h
Screw length: 1520mm
Screw diameter: 75mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Name: DSE75S double screws extruder
Main motor: 37kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 14kw
Output: 400~500kg/h
Screw length: 1520mm
Screw diameter: 75mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Features
1. This kind of fish feed extruder machine has a simple structure, wide application, and low noise
2. lt can improve the quality and floating time of the fish feed pellets.
3. Salmonellosis and bacterial infections of the raw materials will be eliminated after being processed by high temperature and pressure.
4, We offer different die molds to meet the various needs of the diameters of feed pellets
5. The high-quality steel is adopted to guarantee the long service life of the extruder.
6. The jacketed construction of the extruder is adopted to control the extruding temperature by adding the materials with hot steam or cooling water
7. The fish feed pellets are more economical than the compound powder feed
Certificates
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry.
2. Q: How can I get to your company?
A: That's great you can visit our factory, welcome! You can get a flight to Jinan Airport. Our office is just about 40-45-minute drive away from Jinan Airport. We are so glad to arrange for our car to pick you up!
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arriving at the customer's side.).
After this period we will definitely support you when needed.
You will be welcome to contact us with any problem that may happen.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer.
Or you can get local contractors to do the commissioning and we send one supervising engineer.
Why Choose Us
1. 24 hours a day online customer service can reply your message.
2. We can design different plans according to your specific needs.
3. Our engineers with more than 20 years of experience can give you professional advice.
4. We can sign CIF terms and help you to be responsible for the transportation to your country port.
5. We can provide you with the best product formula (data obtained through continuous testing and research).
6. We provide a complete 1-year machine quality guarantee and life-long after-sales service.
Packing & Shipping
• Inside the package is plastic film, outside is a wooden or plywood case.
• Only plastic film nude packing with wooden pallets.
