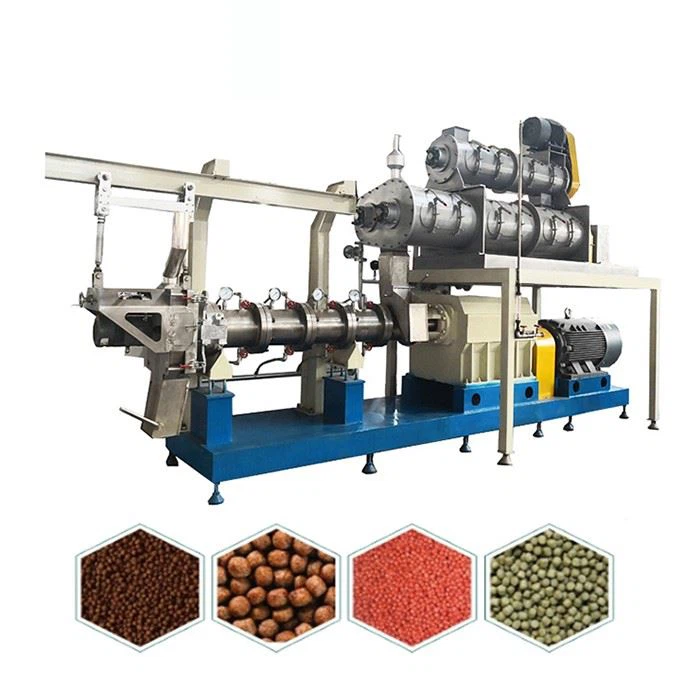

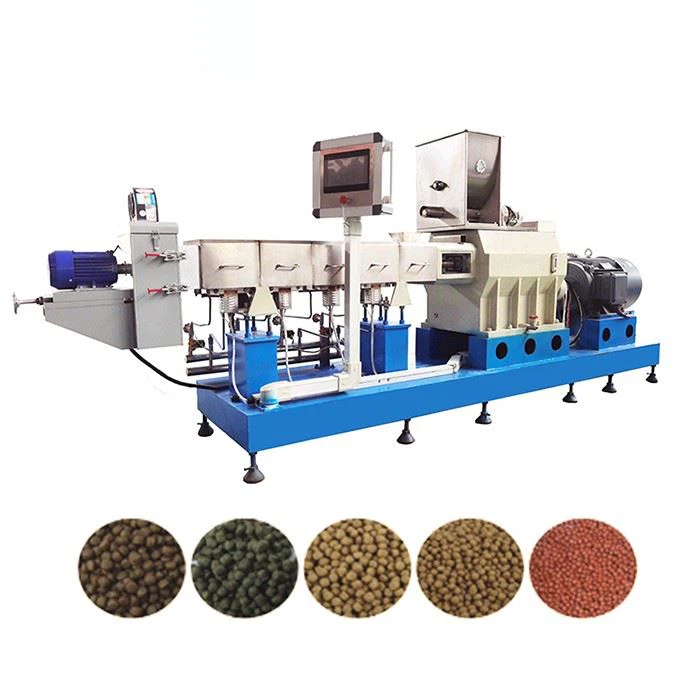

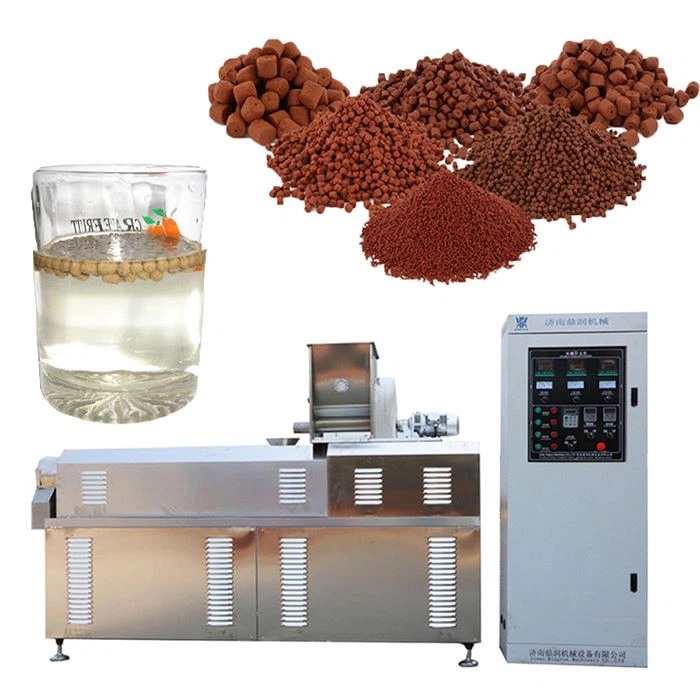

Fish Feed Making Extrusion Machine
1. Certification: CE ISO SGS.
2. Motor:Siemens, ABB or Chinese Brand.
3. Consumption: low energy and labor consumption.
4. Size: 0.5-10mm.
5. Energy: electricity, gas,diesel,steam.
6. Voltage:as Customer's Requirement.
Description
machine Video
Introduction

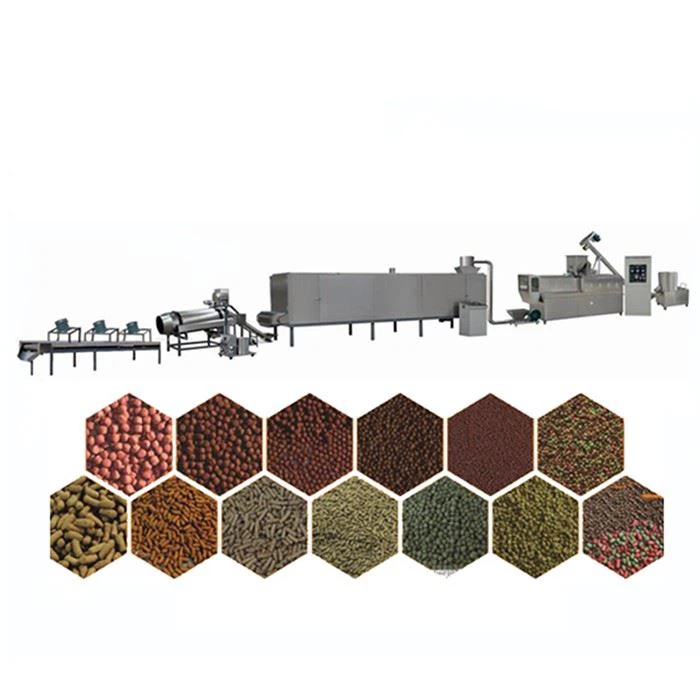

Fish Feed Making Extrusion Machine production line is a great way to provide your customers with nutritious and high-quality products. It is easy to use and requires low investment, which makes it the best choice for small businesses.
The production line features advanced single-screw extrusion technology and stainless steel construction.
Its components are fully kneaded to make feed pellets of different sizes. The finished product has no burrs and has angular edges, which ensures that the nutrients and vitamins will be retained.
Final Food
In terms of breeding methods, floating fish feed has a wide range of applicability. It is suitable for fishery, pond farming, rice field farming, flowing water farming, cage farming, factory farming, large surface intensive farming, and so on.
In terms of breeding species, both freshwater fish and seawater fish can efficiently get the floating feed, such as fish, shrimps, crabs, lobsters, conventional fish, or other famous and excellent species.
Raw Material
This equipment uses corn, rice, soybean, meat, animal wastes as raw materials, and can be expanded to produce different particle shapes, suitable for different pets.
Main Machine Parameters
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Main Machine Details

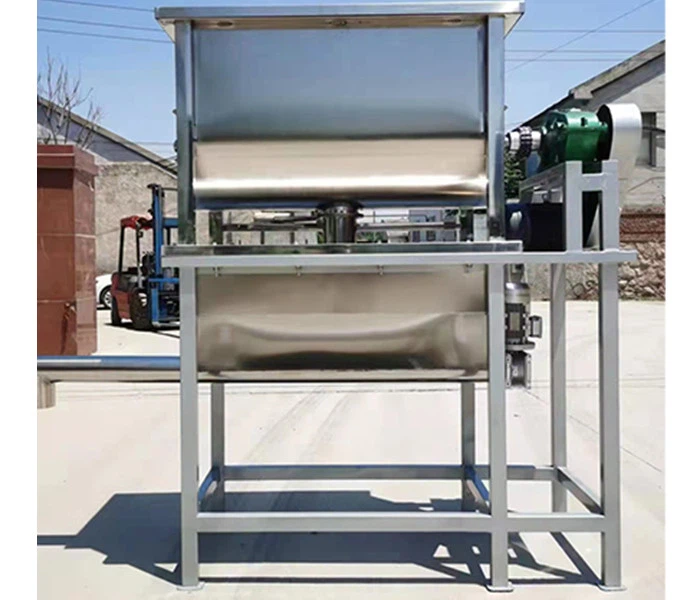

Name: Double-layer mixer
Main motor: 11kw
Output: 500kg/time (5~8min each time)
Material: Stainless steel
Capacity: both 1005L
Function: Mainly used for mixing various powdery or granular raw materials, dry and wet, mixing and mixing on the top, the bottom is the storage silo to add the discharge dragon, the height of the discharge opening can be customized according to requirements.

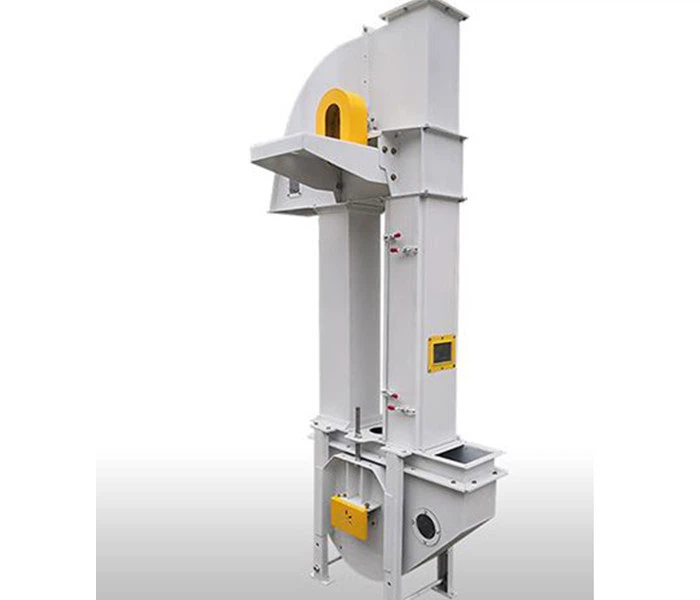

Name: Bucket elevator
Main motor: 2.2kw
Output: 1000-2000kg/h
Material: PVC
Function: The material is conveyed from low to high, and the environment is sealed in the whole process, with no leakage and pollution, and product quality is guaranteed.

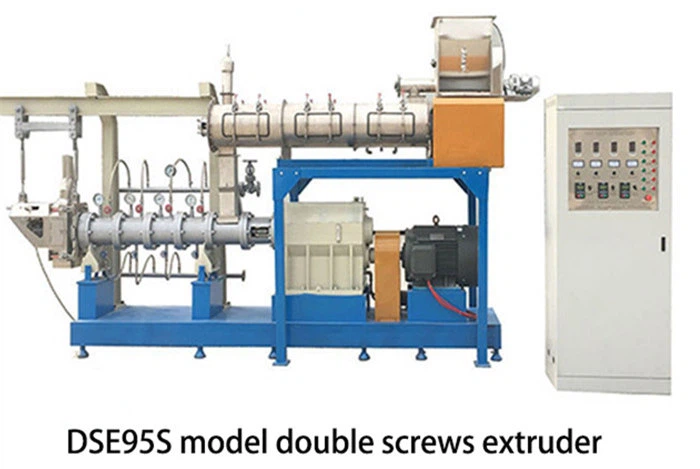

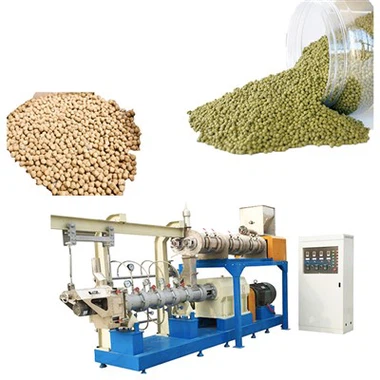

Name: DSE95S double screws extruder
Main motor: 90kw (frequency control)
Feeding motor: 1.5kw (frequency control)
Rotary cutting motor: 3kw (frequency control)
Output: 1000~1500kg/h
Screw length: 2100mm
Screw diameter: 95mm
Screw material: 38CrMoAl
Modulator power: 3kw
Oil pump motor: 0.75kw

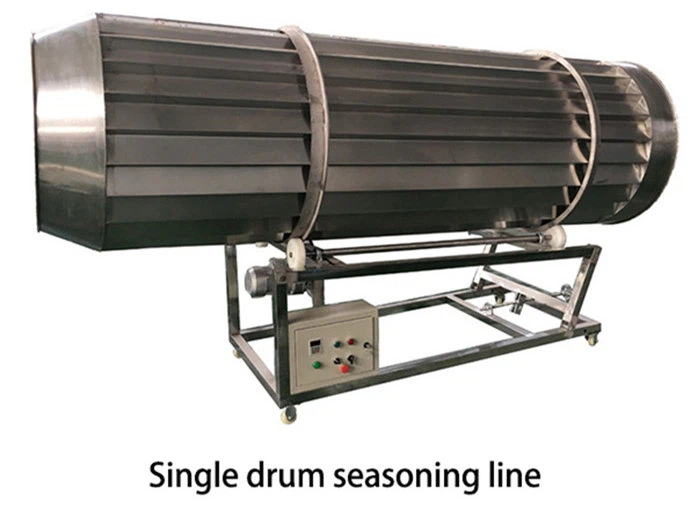

Name: Single drum seasoning line
Output: 0-2000kg/h
Main motor: 0.75KW
Material: stainless stee
Function: Through continuous rotation, the grease sprayed by the fuel injector is evenly covered on the product.
With a frequency conversion speed regulation system, the base of the movable equipment is convenient and quick.

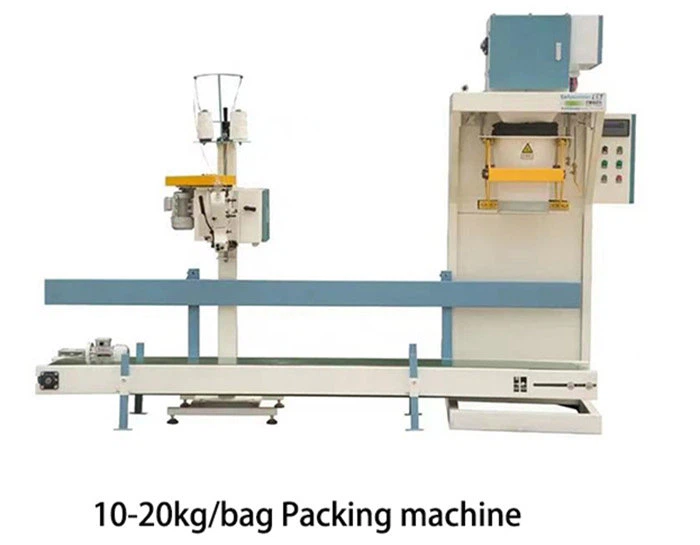

Name: 10-20kg/bag packing machine
1. Packing speed: 200~280 bags/hour forsingle bucket scale, 400~550 bags/hour for double bucket scale
2. Dynamic accuracy: +0.2%.
3. Power supply voltage: AC220V, 380V, 50HZ.
4. Gas source pressure: 0.4~0.6Mpa.
5. Gas sourceless: 0.1m3/min.
features
Wide Usage: It not only can make floating fish feed pellets for fish, crabs, and shrimp but also can make food for pets.
Continuous Production: Its scientific design and stable performance ensure continuous production
Various Die Moulds Available: They can be used to make different sizes of feed by replacing the die molds.
High-Quality Feed: With the conditioner design, raw materials can be cooked, so the final produced feed is of high quality. At the same time, it can ensure smooth feed production.
Easy Operation and Small Size: The whole set of fish feed manufacturing machines can be easily operated and it takes small space.
Our service
*Customized solutions and one-to-one personalized service
*High-quality and fast after-sales service
*Provide on-site training to the relevant personnel on equipment operation and regular maintenance.
*Make regular after-sale visits to customers to help you solve related problems encountered in the use of equipment.
*Provide high-quality and low-price spare parts, and provide equipment upgrade and new product development support.
*We are professional in feed pellet manufacturing, if you have a need for a fish feed production line, just contact us and tell us your needs, and we will recommend you the most suitable equipment and offer the best price!
Packing & Shipping
Packed by standard wooden case or wrapped in the plastic film then shipped by container for Fish Feed Processing Making Machine.
