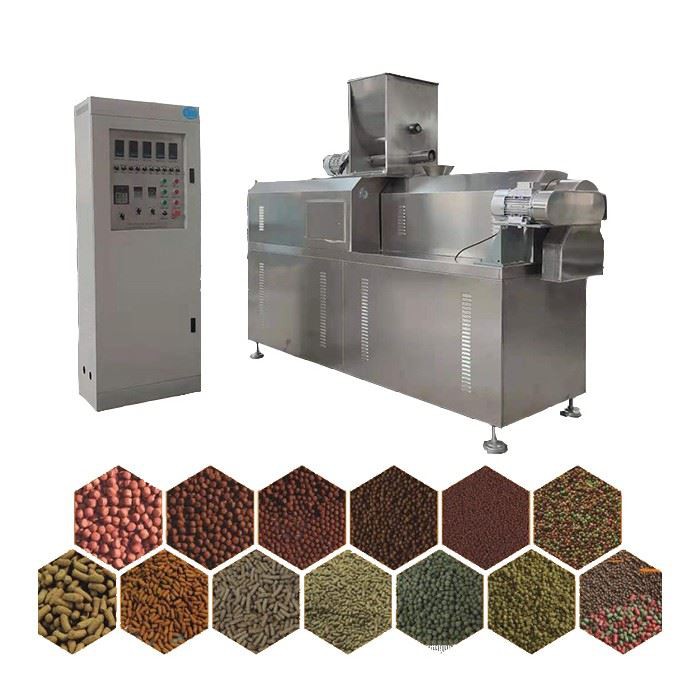

Floating Fish Feed Processing Making Machine





Our floating fish feed production line-making machine can be used to produce various sizes of high-protein floating feed and sinking feed. Our machines can be configured according to output capacity requirements. For fish farms and fish feed mills, we will conduct one-to-one customized production according to the electrical power capacity and the client’s workshop space. The size of the mold is designed and made based on the fish species and the age of the fish.



According to different raw materials, we can equip dry extruders and wet extruders in the production line for customers. We can also provide hammer mills, teeth disc mills, super fineness mills, etc. to process raw materials. Our multi-energy heating dryer can dry out the moisture from fish food pellets to ensure good storage of the fish feed. We can also provide packaging machine solutions to meet your packaging and storage requirements.

The same production line can produce different types of fish feed: floating or sinking fish feed. sure, by changing the mold, the formula can also produce other feed: dogs, cats, fish and so on.



maize (corn), soybean oil meal/cake, rapeseed oil cake, wheat flour, barley flour, vitamins, microelements, fish powder, cassava, etc.



Mixing system --- Extrusion system --- Drying system --- Flavoring system --- Cooling/Packing system





Model	Installed Power	Real power	Output	Dimension
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)











The raw material is uniformly fed into the screw extrusion chamber of fish feed extruder by the feeder, and the volume of the extrusion chamber gradually decreases along the moving direction of the material, and the expanding pressure of the material gradually increases. At the same time, the movement of the material in the extrusion chamber is accompanied by strong shear, rubbing, and friction.



Sometimes, according to the need, the electric heating sheet can be added outside the expansion chamber to assist heating. Such combined action will make the material temperature rise sharply, and the starch in the material will gelatize. The whole material becomes a melted plastic colloid. Till the moment the material is discharged from the extrusion mold hole, the pressure suddenly drops to 0.1Mpa, water quickly turns into steam and its volume is increased, so the volume of material is also expanded. The vapor further emits and makes material moisture content decrease, while the temperature decreases quickly.



Then the material converges immediately and makes a lot of micropores in the condensed colloid material. The continuously extruded columnar or flaky puffed products are cut by a rotary cutter and cooled, sometimes subsequent drying and spraying additives (such as fat, vitamins, etc.) procedures are also needed.

1. Our company has nearly 20 years of experience in food and feed production and export.

2. Our technicians can provide formulas for different fish.

3. We provide one-year quality assurance and supply spare parts at low prices for a long time.

4. Our engineers can come to install debug and train your technicians.

5. We provide professional machines and processes, and can also design according to your factory.



Inside package is plastic film, outside is a wooden or plywood case (based on the your need).
