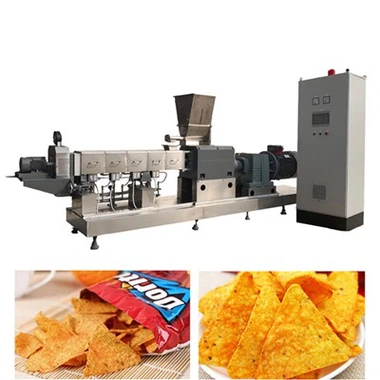

Puffed Snacks Making Machine
1.certification：CE ISO SGS
2.Motor:Siemens，ABB or Chinese Brand
3.Electrical components: Schneider, Delta, or Chinese brands
4.capacity：100-500kg/h
5.Screw type: twin-screw complete screw, combined screw
6.Material：stainless steel
Description
machine video
final snacks Sample
The
Production line introduction
This corn puff processing line consists of five important procedures. Mixing -- Extruding -- Drying -- Flavoring -- Packing
Raw materials will be evenly mixed with water. Then different shapes of products will be produced by extruding. After extrusion, these products will go into the dryer for water evaporation. With the help of a double tumbler flavoring machine, customers will get many delicious flavors.
① Mixer → ② Screw conveyor → ③ Extruder → ④ Air conveyor → ⑤ Dryer → ⑥ Hoister → ⑦ Flavoring line → ⑧ Cooling conveyor
extruder details
1. High flexibility of the allocation;
2. Long lifetime of the machines;
3. Widely products can be made by the same machines;
4. Low investment, high profits;
5. Easy operation;
6. Labor- saving;
7. Full stainless steel;
8. High automation;
9. Raw materials are easy to get all over the world;
10. CE certificate.
11. Machine parts brands can be indicated.
extruder model
(We have a variety of Corn snacks making machine models for you to choose)
|
Model |
Installed Power |
Power Consumption |
Output |
Size of production line |
|
DSE 65 |
74 kw |
52 kw |
100-150 kg/h |
17x1.3x2.2(m) |
|
DSE 70 |
105 kw |
75 kw |
200-260 kg/h |
20x1.5x2.2(m) |
|
DSE 85 |
205kw |
150 kw |
350-500kg/h |
30x1.5x2.6(m) |
Machine configuration
Mixer
To mix the raw materials evenly, fast speed, no leakage.
Type: Vertical and horizontal type
Motor: 3kw, 4kw, 7.5kw, etc.
Material: stainless steel
Extruder
To extrude the raw materials and make them to the required shape and size of the puff snacks food by mould.
Model: DSE65, DSE70, DSE85
Capacity: 100kg/h to 500kg/h
Material: stainless steel
Dryer
Baking puff snacks food.
Type: electrical, steam, gas fired, diesel fired heating type
Model: KX-3-5, KX-5-5, KX-5-8, KX-7-5, KX-7-8
Capacity: 100kg/h to 10 ton/h
Material: stainless steel
Flavoring roller
Mix the oil and flavors on the surface of the food.
Type: single and double flavoring drum
Capacity: 100kg/h to 500 kg/h
Material: stainless steel
Cooling conveyor
To cool and transport the finished food.
Material: stainless steel
twin screw advantages
A twin-screw extruder is one of the most popular machines used for producing puffed snacks. This amazing equipment has been designed to transform raw ingredients into delicious, crispy snacks that everyone loves.
The process of making puffed snacks begins with the mixing of all the ingredients, such as flour, starch, and water. These materials are then fed into the twin-screw extruder, where they are heated by internal friction as they are being processed. This heat forces the materials to expand and form the basis for our tasty, puffed snacks.
The twin-screw extruder works by using two interlocking screws that rotate in opposite directions. As the material moves through the extruder, the screws compress and then force it through a small opening called a die. This causes the material to expand rapidly, forming the characteristic light and crispy texture of puffed snacks.
The extrusion process can also add unique flavors and textures to the snacks. This can be achieved by adding seasoning and other ingredients, either before or during the process. For example, cheese powders, spices, and other natural or artificial flavorings can be incorporated into the dough or sprayed onto the puffed snacks as they exit the extruder.
In conclusion, the use of a twin-screw extruder is essential for producing delicious puffed snacks. The combination of heat, pressure, and unique ingredients can create a wide range of flavors and textures that appeal to people of all ages. Whether you prefer savory or sweet snacks, there is something for you to enjoy in the world of puffed snacks.
Our advantages
①Related consultation about equipment, process, packaging, and standardized layout of the plants prior to the project. We can also pay a visit to the customer to survey the size and area of the workshop, then deeply customize the most reasonable and scientific configuration of the production line and equipment, and realize the overall turnkey project;
②The operation of equipment in the project, Technical consultation, and training;
③ Provide system solutions for your efficient production and match your needs;
④We can provide specialized design and manufacture according to your requirements;
⑤We can help you upgrade and remold the existing product lines to eliminate weaknesses and improve production efficiency;
⑥Our demonstration workshop integrates experiment, demonstration, and training to provide you with professional value-added services;
⑦Our demonstration workshop can test your products and processes to select the right process equipment for you. You can also test your new recipe and technology here.
Packing and shipping
