Cheese Puff Machine
1.certification：CE ISO SGS
2.Motor:Siemens，ABB or Chinese Brand
3.Electrical components: Schneider, Delta, or Chinese brands
4.capacity：100-500kg/h
5.Screw type: twin-screw complete screw, combined screw
6.Material：stainless steel
Description
Product Detail

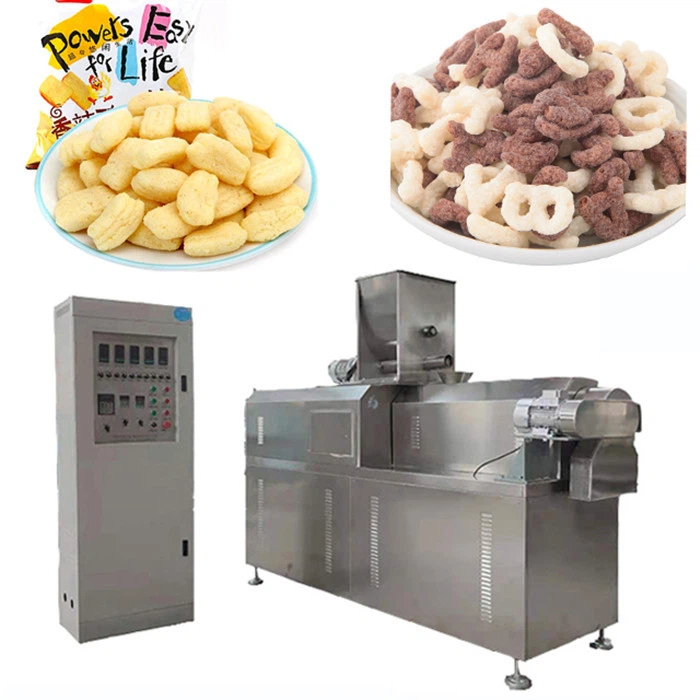

Automatic Cheese Puff Machine Production Line
Cheese puff machine production line is advanced in technology and highly automated. The production process includes mixing,extruded, baked, seasoned, cooled and packaged. This production line can make different kinds of puffed or fried food, and the shape, size and taste of snacks can be customized according to needs.It is also possible to produce sandwiched snacks, such as chocolate filled pillow, cream filled pillow, cereal bars, etc., by changing the mold and process technology.
Product Sample
Puff food extruder line can produce the following samples by changing the mold:
Flow Chart
① Mixer → ② Screw conveyor → ③ Extruder → ④ Air conveyor → ⑤ Dryer → ⑥ Hoister → ⑦ Flavoring line → ⑧ Cooling conveyor
Principle of Puffing Extruder
The material enters the barrel of the extruder from the hopper, and with the rotation of the screw, the change of the screw structure, the increase of the pressure, and the external heating from the barrel and the material between the two screws and the friction between the screw and the barrel Under strong stirring, mixing and shearing, the temperature of the material rises to fully gelatinize the raw material starch. In the closed sleeve, the water will not evaporate quickly. When the material is instantly extruded from a mold with a certain shape, the pressure is released quickly. The material expands accordingly, and the moisture is quickly lost from the material, so that the product is quickly cooled to about 80°C, thereby being shaped and maintaining its expanded shape.
Technical Parameters
(We have a variety of Corn snacks making machine models for you to choose)
|
Model |
Installed Power |
Power Consumption |
Output |
Size of production line |
|
DSE 65 |
74 kw |
52 kw |
100-150 kg/h |
17x1.3x2.2(m) |
|
DSE 70 |
105 kw |
75 kw |
200-260 kg/h |
20x1.5x2.2(m) |
|
DSE 85 |
205kw |
150 kw |
350-500kg/h |
30x1.5x2.6(m) |
Main Machine Details
(The accessories of corn snack making machine are made of well-known brands. We can also customize them according to your needs of machine materials and electrical parts brands.)
Extruder (twin screw)
Square barrel type
Model: DSE65F, DSE 75F, DSE85F
Capacity: 100kg/h to 500kg/h
Material: stainless steel

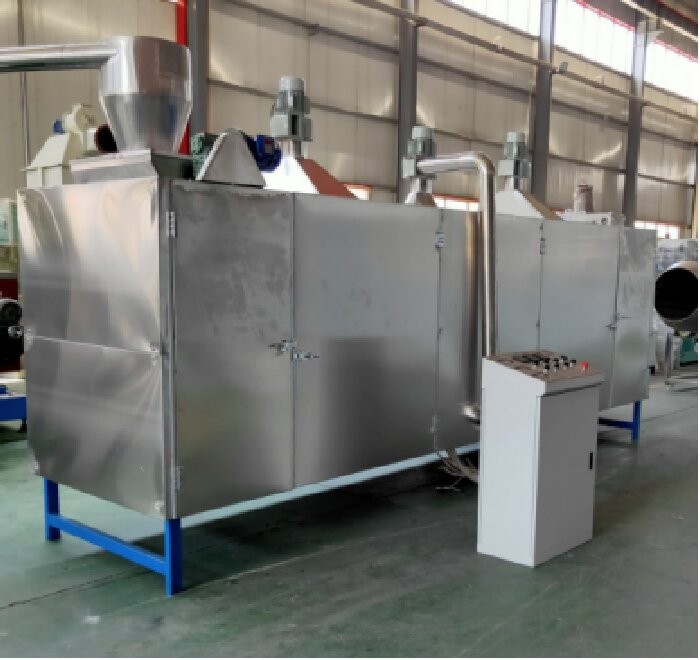

Dryer
Baking puff snacks food.
Type: electrical, steam, gas fired, diesel fired heating type
Model: KX-3-5, KX-5-5, KX-5-8, KX-7-5, KX-7-8
Capacity: 100kg/h to 10 ton/h
Material: stainless steel
Flavoring roller
To mix the oil and flavors on the surface of the food.
Type: single and double flavoring drum
Capacity: 100kg/h to 500 kg/h
Material: stainless steel
Cooling conveyor
To cool and transport the finished food.
Material: stainless steel
FAQ
Q: Can I watch the factory by video?
A: Yes, if it‘s not convenient for you to come to our factory, you can watch the factory online.
Q: In addition to electricity, are there other energy sources that can be chosen?
A: We can provide gas type dryer for your choice.
Q: Are there wearing parts?
A: Yes, when we provide you with a quotation, we will provide the corresponding wearing parts list.
Q: How many days does the installation cycle take?
A: If the installation materials are ready, the installation can be completed in about a week.
Packing & Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
• Shipping, train, express, or upon clients' demands.
