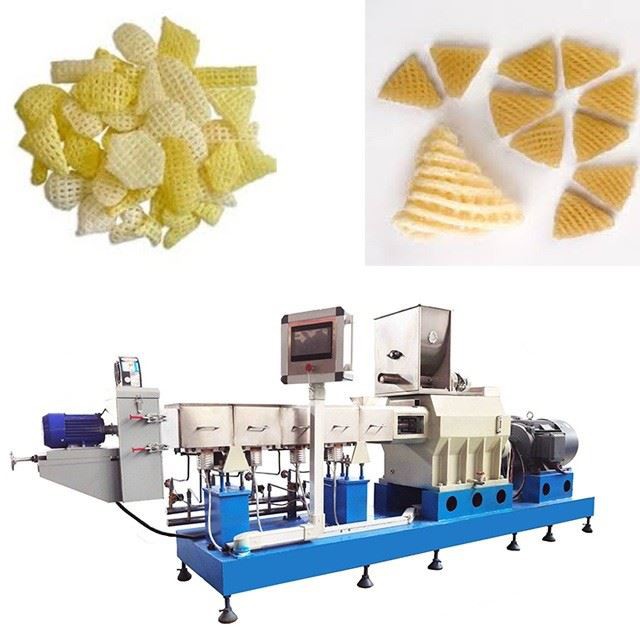

2d 3d Puff Snack Pellet Machine

1. Raw material preparation
First, you need to choose high-quality raw materials. Generally speaking, common raw materials include corn starch, potato starch, tapioca starch, etc. In addition, appropriate amounts of seasonings and pigments can be added according to needs, and water can be added in a certain proportion and mixed.
2. One squeeze
The mixed raw materials are added to the extruder and extruded under high temperature and high pressure. At this time, the raw materials will be extruded into regular shapes, such as circles, squares, etc. At the same time, due to the action of high temperature and high pressure, the starch granules will break, which is beneficial to subsequent puffing.
3. Second extrusion
The processed materials are added to the secondary extruder for re-extrusion. At this time, the material will be squeezed into fine particles and rapidly expanded under high temperature and pressure.
4. Forming and curling
Depending on the product's requirements, puffed food can be further shaped or curled.

Fried type:

Mixer - Screw conveyor - Extruder - Piercing machine - Cutting machine - vibration screen - Dryer - Fried machine - Mid hoister - Single flavoring drum

Dimensions: 3500*1200*2200mm,

Effective frying area: 2500*600*70mm

Transmission power: 0.55KW

Llifting power: 0.37KW*2

Heating power: 63KW (21,42, 63KW can be adjusted by yourself

This fryer adopts a double-layer mesh belt structure electric heating type heating, there is a paddle stiming device in the front section, which is suitable for frying.

The machine material plays a certain stining role to prevent the materials from sticking to each other. This kind of structural system has less oil capacity, and the tumover rate of frying oil is fast, which is beneficial to improve the quality of frying oil.

Function: Filter out the oil and dregs

Power: 0.37kw

Capacity: Match with the extruder

Size: 1300x800x800mm

Material: stainless steel

Feature: Smooth operation and high efficiency

Machine: Single flavouring drum

Power: 0.75 kw

Output: Match with the extruder

Function: Spray seasoning powder evenly on food surface.

Features: 1. High automation, labor saving, all high-quality stainless steel material.

2. Simple operation, convenient installation and maintenance.

As a reputable and reliable machinery manufacturer, our top priority is to provide our clients with the most suitable machine configuration for their specific production needs. Our highly skilled engineers and technical support staff are always ready to analyze and evaluate the production requirements of our clients to identify the ideal machine configuration for their operations. We fully understand that the right machine configuration is essential for the efficient and cost-effective production of goods.

To ensure that our clients are fully informed about our machines, we provide them with detailed information on the specifications, features, and benefits of our machinery. This enables our clients to make informed decisions when selecting a machine that meets their production needs and budget. We also provide detailed product brochures containing all the information that our clients need to make a well-informed decision.

One of our key strengths lies in our ability to provide our clients with a production line flow chart that illustrates the various stages involved in their production process. This helps our clients to visualize the entire production process, including the various equipment and machinery involved. Based on this flow chart, our clients can make informed decisions about the equipment they need to acquire to optimize their production process.

In summary, we are always proactive in recommending the most suitable machine configuration based on the production needs of our clients. We provide detailed information on our machines and production line flow charts, enabling our clients to make informed decisions when selecting the right equipment for their operations. With our unwavering commitment to customer satisfaction, you can be assured of our dedication to providing you with optimal machinery solutions for your business needs.
