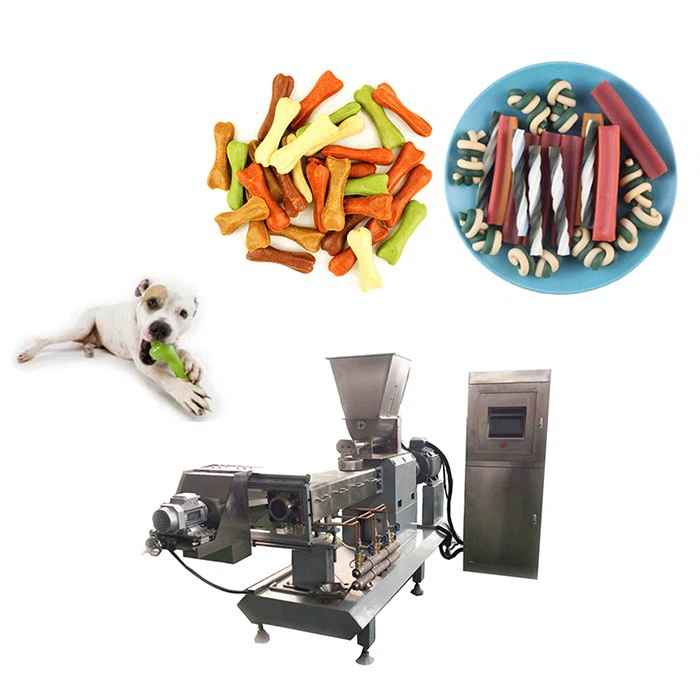

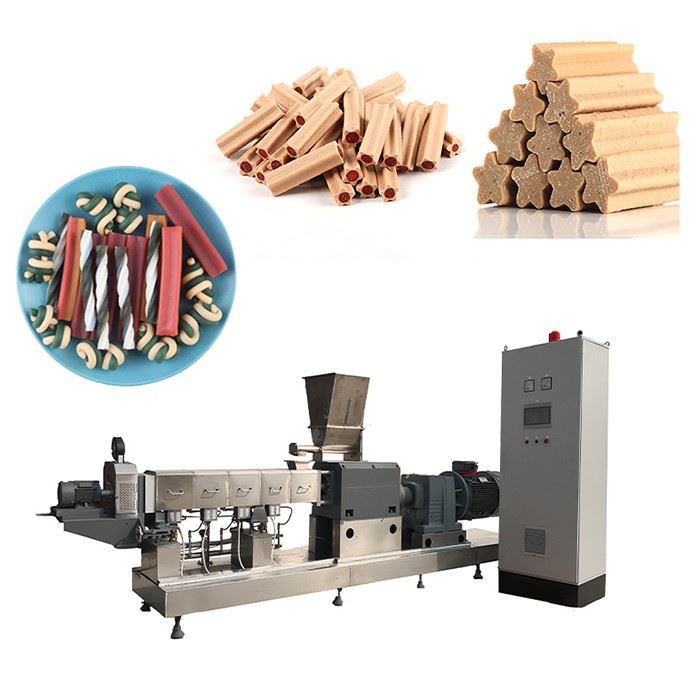

Pet Chew Treat Making Machine
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Key Selling Points: Long Service Life.
4. Usage: Feed machine.
5. Service: Provide service at any tim.
Description
Introduction
1. The whole pet food production line is fully continuous and automatic.
2. The shape and size of the final pet food can be changed by changing the mold. Machine performance and product quality are at the highest level.
3. Our production line has the advantages of high efficiency, low consumption, and convenient operation and maintenance.
4. The materials and production are very scientific, and it can also help pets solve oral problems.
5. The structure is extruded by an extruder, and can be made into various shapes such as rod shape and bone shape.
6. This kind of food not only provides protein, fat and vitamin nutrition for pets, but also satisfies the natural hobbies of dogs.
Product Simple
Dog chews can be made in different colors and different shapes. But one extruder can only make one color, if you want to make two-color or three-color dog chews, you need two or three extruders
Main Raw Materials
Corn starch,potato starch,meat meal.
Product Video
Parameter
We have machines of different models and different outputs for customers to choose, which can meet more needs of customers
|
Model |
Main motor |
Heating power |
Output |
Size |
|
SSE100 |
32kw |
28kw |
100-150kg/h |
26*4*3m |
|
DSE75F |
75kw |
33kw |
250-300kg/h |
40*5*3.5m |
|
DSE95F |
134kw |
55kw |
400-500kg/h |
50*5*4.5m |
Flow Chart of Dog Chew Machine Production Line
Mixer--Single screw extruder/Twin screw extruder--Cooling machine--Cutting machine--Dryer---Cooling machine--Packing machine
One extruder can only produce one color. If you want to make two-color or multi-color dog chews, you need two or more extruders
Machine Details
1.Extruder equipped with cooling system, can cool the barrel temperature better, ensuring better final product quality.
2.Use 38CRMOAL screw material.Also can customize CR12MOV or 6542 materials screw for you.
3.There are many holes in the die head, which can ensure that multiple dog chews are extruded at the same time, improving production efficiency
After-sale service
1. Free consultation service before, during and after sales.
2.Free project planning and design services.
3.Free installation and commissioning of equipment until everything is functional.
4. Free management of equipments long distance shipping.
5.Free training of equipment maintenance and operating personally.
Certification
Packing and Delivery
1.Outside package :Standard export plywood case for cereal bar production line
2.Inner package:Stretch film and and plastic film for humidity.
