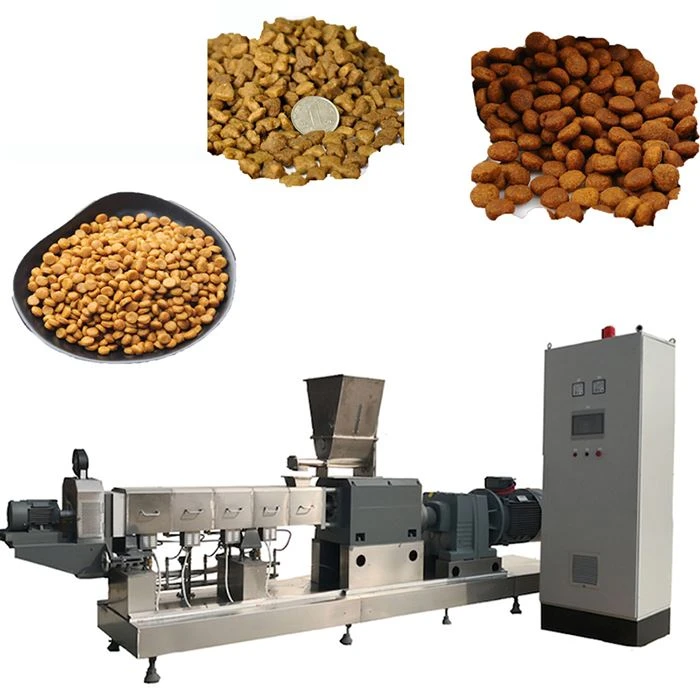

Dog Food Making Production Line Machine

1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Main Extruder: Twin screw extruder.
4. Raw material: Fish Powder, corn Four…
5. Type: Pet feed processing Line.
6.Dimension(L*W*H): Customization.

Send Inquiry

Description

Pet Food Sample

Pet food is solid food specifically designed for dogs, cats, fish, and other pets. Its function is primarily to provide pets with the most essential nutrients for survival, growth and well-being. It has complete nutrition, high digestion and absorption, scientific processes, healthy levels, simple diet and preventive benefits against certain diseases.

Pet Food Machine Video

Flow Chart

Crushing Machines - Colloidal Fat Machines - Mixers - Animal Feed Extruders - Air Transport Machines - Dryers - Grinding Machines - Grinding Machines.

Machine Details

We can customize the vehicle to fit your specific power needs and your budget, whether small or large.

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)

Name: Mixer

Maximum power: 5.5 kW

Production: 300 kg/cycle (6–10 minutes/cycle)

Material: Stainless steel

Function: Shredded material is mixed with a specific amount of water. Easy to operate.

The outlet flap opens automatically after mixing is complete.

Type: Twin-screw extruder DSE95S

Main motor: 110 kW (frequency converter).

Feeding motor: 1.5 kW (frequency inverter).

Cutting motor: 3 kW (frequency inverter).

Productivity: 1800–2200 kg/h

Screw length: 2100 mm

Screw diameter: 95 mm

Screw material: 12CrMoV

Modulator power: 3 kW

Maximum motor: 90 kW

Energy: Warm air

0.75 kWh

Name: Cooling box

Main motor: 0.37 kW

Capacity: 1000-2000 kg/h

Cooling power: 0.75 kW

Material: The outer protective plate is stainless steel, and the frame is carbon steel.

Mesh belt: width 500 mm, chain carbon steel, pitch 25.4, mesh material 204 pitch 5 pitch 10, mesh diameter 1.0, thread diameter 1.2, string shaft diameter 8 mm, material 201.

1. In an extruder, material placed under high temperature and pressure is transferred to the open end of the extruder and passes through a material shaping die and knife.

2. Animal feed industries use wheat meal, bone meal, and fish meal as raw materials.

3. The machine can arrange the die and create a variety of shapes.

4. The output is 100kg/hr - 5000kg/hr.

5. Stopping the self-cleaning process allows cleaning without causing damage.

6. Voltage in China: 3 phase: 380V/50Hz, single phase: 220V/50Hz, we can do like different countries.

7. All machines are made of stainless steel. Its line design has reasonable and high automation. The screws are made of alloy steel.

Certifications

about our service

1). Free consultation before, during and after sale;

2). Free project planning and design;

3). Free installation and operation of the equipment until it is fully operational;

4). Free remote control of the equipment;

5). Free training on equipment maintenance and self-operation;

6). Free new production methods and films;

7). One year and lifetime warranty;

8). Engineers available to service the equipment overseas.

9). Technical support.

10). Provide English version of installation/operation/maintenance manual.

FAQ

Q: What types of products can you produce?

A: Dog food, pet food, fish food.

Q: How long is the delivery time?

A: We usually require 40-45 days for large-scale orders, depending on the finished product and production capacity.

Q: What about the installation service?

A: It depends on the price list of all equipment. It usually takes 2-3 weeks. We will provide an installation manual, including commissioning, as well as operation for quality control and testing various formulas.

Q: What is the warranty period for the equipment?

A: 1 year for the screw and barrel. Because it's a modular design, replacing worn parts is common, unlike complete screw assemblies where the entire unit doesn't need to be replaced.
