Dog Feed Pellet Production Extruder
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Material quality: SS304.
4. Energy: electricity, oil diesel, gas, steam.
5. Core Components: Gear, Motor, Bearing.
6. Key Selling Points: Automatic.
Description
Product Video
Products Description
A Dog Feed Pellet Production Extruder production line is an industrial process of making pet foods. It has an output capacity of 100-5000kg/h and is highly flexible and reliable. The dog food produced by this Dog Feed Pellet Production Extruder is unique, novel, high-quality, and has good palatability.

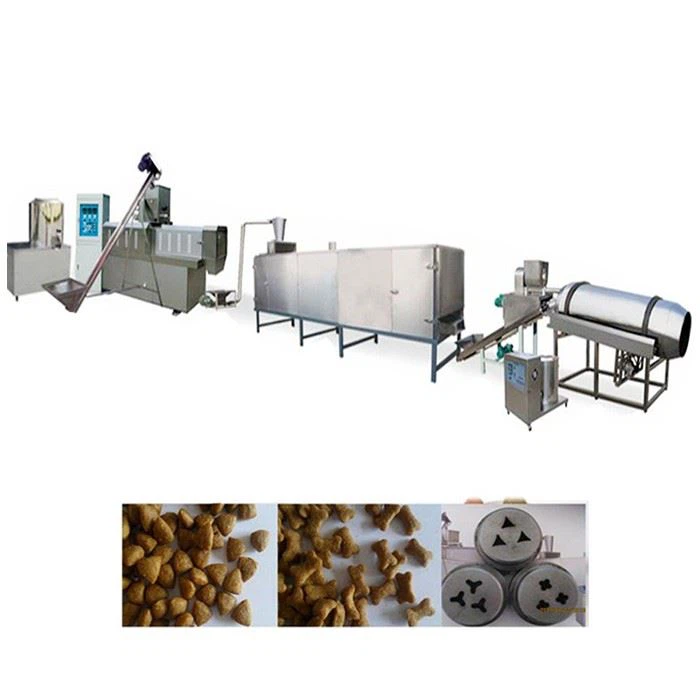

pet food flow chart
Mixing system---Extrusion system----Drying system----Flavoring system---Packing system
Product Sample
（1）A dog food production line is a kind of pet-feeding machinery that uses a high puff degree corn powder cereal as the basic raw material.
（2）The pellets can be of different shapes, contain vitamins, minerals, and other nutrients, and can also be coated with flavors or colors.
（3）The final products can be stored in various containers and are highly nutritious.
（4）The pet food production line is capable of producing various types of feed, including dry pellets, floating feed for fish, and cat foods.
Technical Parameters
All machines are suitable for industrial three-phase voltage: 380V/50Hz, single-phase: 220V/50Hz, we can make according to the local voltage of customers in different countries.
|
Model |
Installed Power |
Real Power |
Output |
Dimension |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Extruder Details
Name: Mixer
Main motor: 4kw
Output: 50kg/time (5~6min each time)
Material: Stainless steel
Function: Mix the raw materials according to the proportion and add a certain proportion of water for mixing.
The operation is simple and the cleaning is convenient.

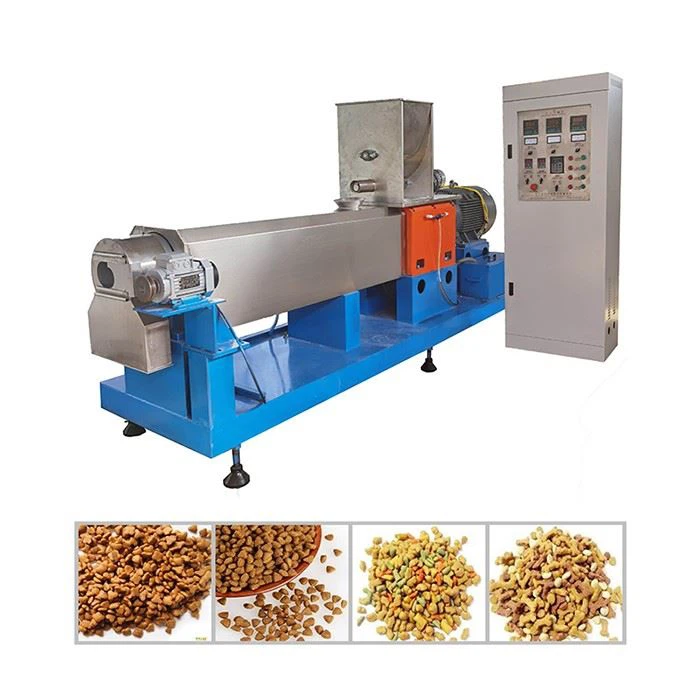

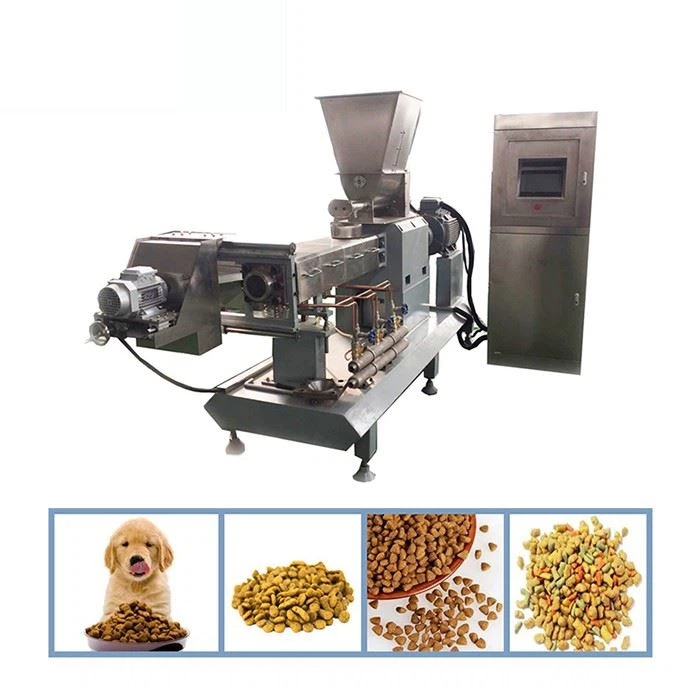

Name: DSE65 double screws extruder
Main motor: 22kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 12kw
Output: 100~150kg/h
Screw length: 1280mm
Screw diameter: 65mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Name: Double drum seasoning line
Output: 0-500kg/h
Main motor: 0.75KW
Material: Stainless steel
Function: Through continuous rotation, the grease sprayedby the fuel injector is evenly covered on the product.
With a frequency conversion speed regulationsystem, the base of the movable equipment isconvenient and quick.
advantages
（1）The dog food production line is easy to operate and easy to learn.
（2）The machine makes sure that the product is produced at the right temperature and under the proper conditions.
（3）Its novel shape and structure ensure stability and ease of maintenance.
（4）The food produced is highly nutritious and has a delicate organization.
（5）This equipment can help you to meet the demands of your canine friends.
Certifications
We provide the certificates of the equipment and our factory for you in order to guarantee the quality and profession.
FAQ
1. Are you Pet Food Machine manufacturer or trader?
A: Certainly we are manufacturer. Welcome to visit us to check it!
2. Do you supply formula for dog food extruder to buyers?
A: Yes, we supply free formula to buyers.
3. What kind of fuels we can choose during the pet food line?
A: You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation.
4. How much are a Pet Food production line needs?
A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.
5. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
6. Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
Package & Shipment
Packing: inside plastic bag, outside wooden case (Based on the customers' need adopt the wooden case or wooden pellets, etc.) for dog food production line.
Transportation: shipping, train, express or upon clients' demands for pasta making machine.
