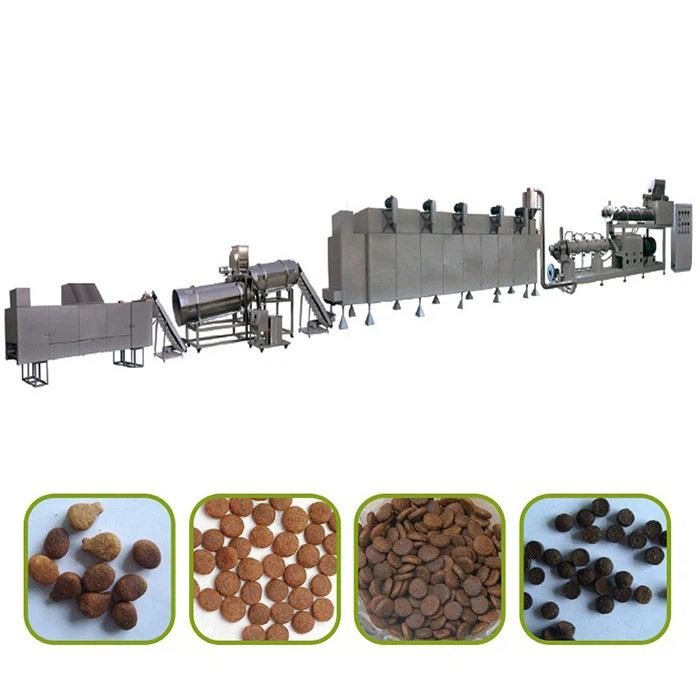

Cat Dog Food Making Extruder Machine

Pet food processing machines endow pet food with novel shapes, unique tastes and colors, and adapt to the ever-growing pet food market with the most scientific nutritional ratio and easy digestion. The technical advantages obtained by our efforts in extruders for many years are fully reflected in pet food production lines. The operation is simple, easy to learn, and precise parameter control ensures that the product is completed in a specific temperature, pressure, humidity and time. Reasonable structural design, special materials, and fast self-cleaning performance ensure the stability of the machine and facilitate maintenance. A variety of shapes and flavors are available to suit a variety of pet food requirements.







Raw material selection: The raw materials of pet dog food and cat food include carbohydrates, protein, fat, vitamins and minerals and other ingredients. Producers need to carefully select raw materials that meet the standards and mix different raw materials in a certain proportion, usually adding water and spices when mixing.



We have a variety of dog food making machine models for you to choose, We can also customize the machine according to your specific capacity needs and budget, whether it is a smaller capacity or a larger capacity.

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)



1. PLC touch screen centralized control is adopted, which is more accurate and convenient.

2. The main motor and distribution box adopt direct-coupled transmission, which has low energy consumption.

3. NSK brand imported bearings are used, with good stability.

4. High-quality screw material, (6542) high hardness, long service life.

5. Combination screw is adopted, which can be used in a wide range, and can be combined arbitrarily to adapt to different product formulas.

6. The cantilever type rotary cutting system is adopted, which is safer, more accurate and faster.

The pet food production line is widely applicable to the production of fox, mink, monkey food, bird food, dog food, cat food and puffed corn, etc. It is an ideal choice for different manufacturers.
The dog food produced by mixing many nutritious raw materials, puffing or extruding, drying, dehydration, seasoning and other processes, the water content is generally below 12%. This kind of food is because of its comprehensive and balanced nutrition. Long shelf life, convenient feeding and portability, and affordable prices are more and more accepted and sought after by people. At the same time, it is also easy to digest and absorb. The digestibility of this type of dog food can reach about 70%. In addition, it The unit heat energy can reach 6.27~6.69KJ/kg, which is very rich in energy.

Twin-screw extruder is a kind of extruder with large aspect ratio manufactured by our company. High output, low energy consumption, energy saving, the machine adopts a large gearbox to change speed, the operation is very stable, and the failure rate is extremely low.

After the screw of the extruder is lengthened, the adaptability of the material is more extensive. At the same time, because the material stays in the machine cavity for a long time, it can be better matured and mixed. At the same time, the screw speed is correspondingly accelerated, and the output can be achieved at the same time. Use frequency conversion speed regulation to realize low-speed start-up and smooth operation. Suitable for all kinds of pet feed, aquatic feed, mink and fox feed, snack food, grain puffing, abalone feed, etc. The raw material is suitable for a wide range, and it belongs to multi-functional large-scale puffing processing equipment.

We can provide you with some necessary certificates, such as SGS certificates, or some special certificates you need.





1. We can provide pre-sales, sales and after-sales services;

2. We can make a project plan according to your specific needs;

3. We can test the machine for smooth production before shipping;

4. We can provide shipping from the seller's factory to the buyer's designated location;

1. According to customer needs, the inner packaging is plastic film and the outer packaging is wooden box.

2. Only plastic film bare package and wooden pallet.

3. Shipping by sea, rail or road.
