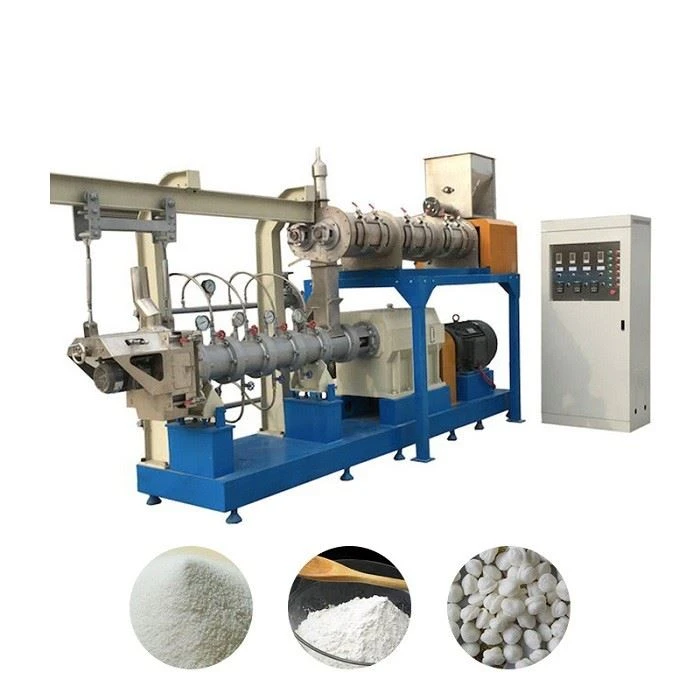

Denatured Starch Processing Line
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Electrical components: Schneider, Delta, or Chinese brands
Capacity: 400-500kg/h
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Screw type: Integral screw/combined screw
Extruder type: Twin screw extruder
Barrel type: Square barrel/round barrel
Description
Final Product Pictures
Modified starch is a modified starch. This kind of starch has some special physical and chemical properties, and when added to food formulas, it can make the food have better performance when processed or eaten. The equipment is designed to adjust the machine cavity and screw structure to diversify the functions of modified starch. The series of modified starch products produced are suitable for textile, food, papermaking, building materials, casting, oil drilling and other fields. With the research With the deepening of the market, extruders will play an increasingly important role in the modified starch market. The machine consists of a feeding system, an extrusion system, a rotary cutting system, a heating system, a transmission system, and a cooling system.
Production Line Flow Chart Picture
Process composition:
1. Powder mixing machine: Different types of powder mixing machines are selected according to the different output of the production line.
2. Loading machine: The motor is used to power the spiral conveyor to ensure convenient and fast loading.
3. Extruder: Different models of twin-screw extruders are selected according to the output of the production line. The output can range from 100kg/h to 500kg/h. Corn starch, cassava starch, potato starch, etc. can be used as raw materials to produce puffed granules. .
4. Elevator: transport the pellets to the oven. The height of the elevator is determined according to the oven. An air blower can also be used.
5. Multi-layer oven: Most ovens are electric ovens. The temperature can be adjusted by the control cabinet between 0-200 degrees. The interior is a stainless steel double-layer mesh belt. The baking time can be adjusted according to the speed. There are three, five and seven layers. stainless steel oven;
6. Crusher: Choose different crushers according to the requirements for nutritional powder.
Machinery Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
DSE65 |
72kw |
50kw |
100-150kg/h |
19000*1300*2200mm |
|
DSE70 |
92kw |
65kw |
240-260kg/h |
14000*2000*4000mm |
|
DSE75F |
70kw |
50kw |
200-250kg/h |
32000*1100*1800mm |
|
DSE85 |
108kw |
76kw |
400-500kg/h |
30000*1500*2600mm |
Main Machineries on production line
Extruder
Model: DSE65
Main motor: 22kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Heating power: 10kw
Capacity: 100-150kg/h
Size: 19000*1300*2200mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Air conveyor
Power: 1.1kw/1.5kw/2.2kw
Capacity: 0-2000kg/h
Material: Stainless steel
Dryer
Type: Electric type (we also have oil/gas type and steam type)
Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8
Capacity: 100kgh to 10tons/h
Material: Stainless steel
Milling machine system
Model: FS-480
Installed power: 15kw
Capacity: 100-300 kg/h
Dimension: 1.3*0.7*2m
Our Engineers
Our services
1. We have professional making formula that can send to customer for reference
2. Our engineer can design production line layout according to factory's sitruation
3. We will test machine before delivery and take videos and pictures for customer
4. We have 24 hours online consultant services. If you have any problems, just feel free to contact us.
About Packing & Shipping
If the customer needs, we can arrange shipping by boat. The reliable freight forwarders we cooperate with will transport the goods to the customer's destination port
