Dry Type Fish Feed Making Extruder





Our fish feed pellet size can be from 0.5mm to 20mm. We can customize molds for customers. However, fish feed below one millimeter uses ultrafine powder as a raw material. If the particles are too small to be extruded directly from the extruder, a crusher is required to crush the particles into particles below one millimeter.



Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran, wheat bran, fish powder, bone powder etc.

We will provide very detailed formula if customer needs.



After years of development, we have developed many machines with different outputs to meet the needs of customers and the market to the greatest extent.

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)

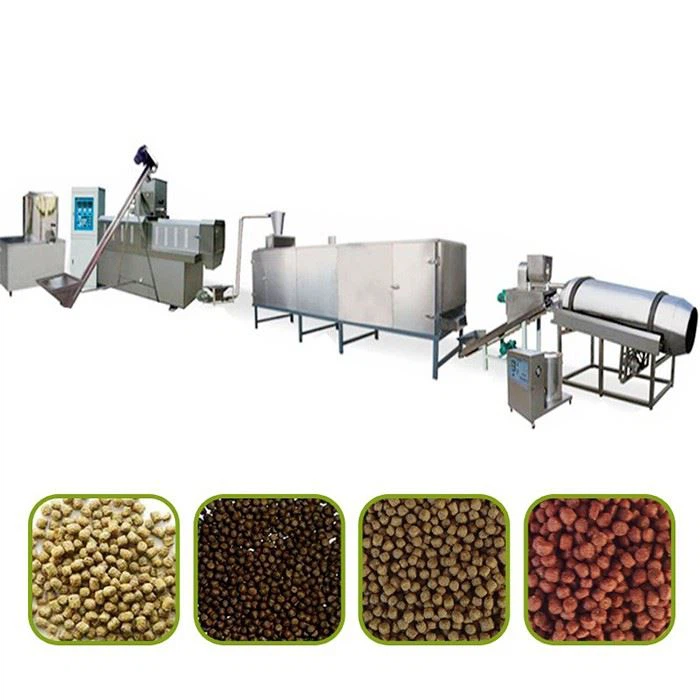

Mixer → Screw conveyor → Extruder → Air conveyor → Dryer → Flavoring → Cooling → Packing

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary are on client’s account.

Fish feed making machine accessories use well-known brands, and we can also customize according to your needs.

1. Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives.

2. Screw Conveyor is used to the convey the materials to the feeder of the extruder.

3. Double Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: transport, mixing, de-gassing, cooking and forming.

4. Vibrating Sifter is a conveyer. It uses to convey the raw material to next equipment, and at the same time, it sifts to prevent the raw materials sticking together.

5. Air Conveyer is a conveyer, which is responsible to convey the materials to the next equipment.

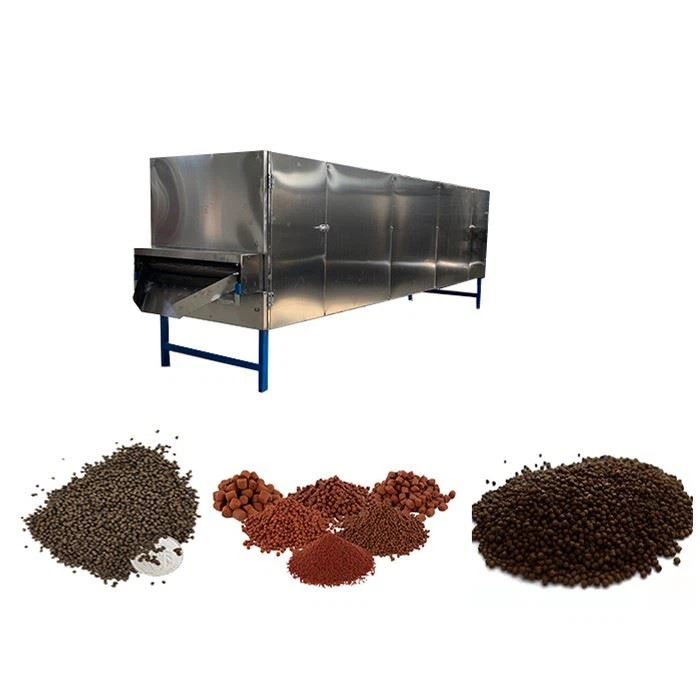

6. Dryer is used to dry a wide range of products, such as pet food, corn flakes, core filling food, etc.

7. Flavoring System is used to evenly spray the flavor powder and oil onto snacks.







Yongxin Liu (First Class Senior Engineer)

Graduated school: Shanghai East China University of Science and Technology

Practical experience: For 20 years, he has been devoting himself to the research of snacks food machine, leading more than 30 projects and overcoming numerous Technical difficulties for the company.



Enxin Xu (Second Class Senior Engineer)

Graduated school: Harbin University of Science and Technology

Practical experience: Mr. Xu specialises in the pet food machinery (cat/fish/dog and so on) research and study. Over the past two years，successfully complete 3 projects of 3-8 tons/hour and 20 projects of 0.5-2 tons/hour production line building work.



Sibin Xin (After-sales Group Ⅰ)

Practical experience: With 13 Years of Practical Experience, he has been to at least 80 countries, served more than 200 worldwide customers , and was highly praised by the clients.



Guoqiang Fan (After-sales Group Ⅱ)

Practical experience: 18 years practice experience, be conscientious and responsible, he have been to at least 30 countries, provided professional and effective after-sales service for more than 100 customers all over the word without any mistakes.



• Inside package is plastic film, outside is a wooden or plywood case(based on the customer's need).

• Only plastic film nude packing with wooden pallets.

• Shipping, train, express, or upon clients' demands.
