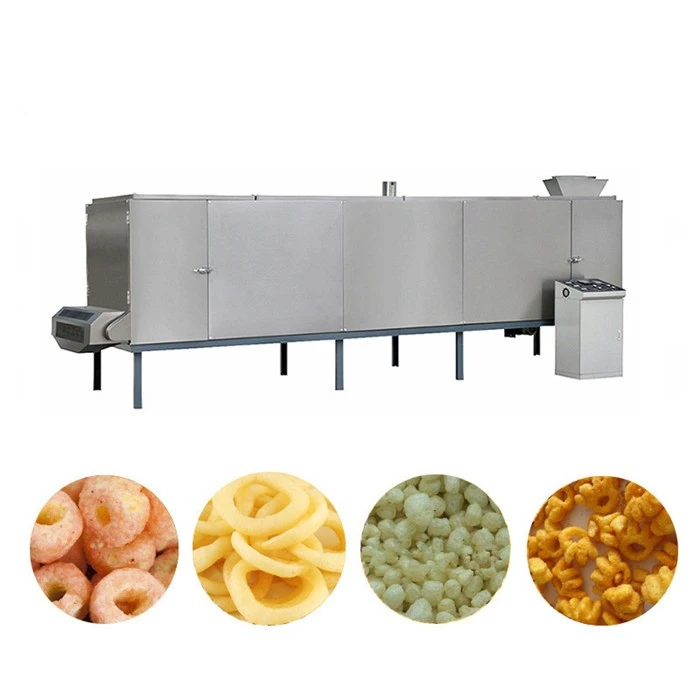

Puff Snack Pellet Extruder Machine

1.certification：CE ISO SGS
2.Motor:Siemens，ABB or Chinese Brand
3.Electrical components: Schneider, Delta, or Chinese brands
4.capacity：100-500kg/h
5.Screw type: twin-screw complete screw, combined screw
6.Material：stainless steel

Send Inquiry

Description

introduction

The puffed snack processing line is mainly made up of a raw materials treatment system, extrusion system, drying system, flavoring system, and controlling system. It has high stability and automatic performance, which offers the possibility to control the expansion of the extrudate through various means to control the texture of the final product.
This line's core technology is co-rotating twin-screw extrusion. Twin-screw extruder is the core of this line, enabling the continuous production of expanded snacks.

video

Product Sample

Puff food extruder line can produce the following samples by changing the mold:

Flow Chart

1. Mixing part: Use a mixer to mix powdered or liquid raw material with water. This mixer is made of stainless steel which is food grade with high mixing efficiency and uniformity.

2. Conveying part: Using a screw conveyor sends the mixed raw material to a double screw extruder. Using a screw conveyor conveying powdered material can avoid dust flying during conveying.

3. Extruding part: use a double screw extruder to extrude puffed snacks. The machine is a double-pressing screw design, which has high extruding pressure. The extruding sleeve is equipped with heating coils to puff the raw material into snacks. Change mold can make different finished puffed snacks.

4. Conveying part: Send snacks from extruder to dryer

5. Drying part: tunnel dryer to dry the snacks, drying temperature adjustable from electric panel

6. Conveying part: Use a skirt conveyor to send snacks to the flavoring part. The belt is food grade.

7. Flavoring part: The liquid sprayer can spray liquid flavors on snacks, and the powder sprayer can spray powdered flavors on snacks. On the flavoring machine, the front part is used for liquid spraying, the second half is used for powdered flavor spraying.

8. Cooling part: The cooling part is a cooling conveyor, This conveyor can move snacks from the flavoring machine at the same time cooling snacks by an air fan.

Technical Parameters

(We have a variety of Corn snacks making machine models for you to choose)

Model	Installed Power	Power Consumption	Output	Size of production line
DSE 65	74 kw	52 kw	100-150 kg/h	17x1.3x2.2(m)
DSE 70	105 kw	75 kw	200-260 kg/h	20x1.5x2.2(m)
DSE 85	205kw	150 kw	350-500kg/h	30x1.5x2.6(m)

Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.

Machines materials: All the machines are made of stainless steel.

Flexible, facilitating product innovation: A diversity of raw materials, using a wide range of ingredients (flour or meal using refined or whole cereals, exotic raw materials such as root vegetables, classical cereals, etc.) and process flexibility to enable changes in product features (particle size, moisture or variable fat content)

Cost-effective: High-temperature Short-Time time-intensified transformation process generating savings in raw materials, water, and energy; very hygienic processing and easy maintenance; compact design with reduced floor space requirements. Advanced automation designed by our experts ensures precise process control, resulting in consistent and repeatable quality.

Finished product capacity: 100 kg/h to 1000 kg/h.

Main Machine Details

(The accessories of corn snack making machine are made of well-known brands. We can also customize them according to your needs of machine materials and electrical parts brands.)

Extruder (twin screw)

Square barrel type

Model: DSE65F, DSE 75F, DSE85F

Capacity: 100kg/h to 500kg/h

Material: stainless steel

Dryer

Baking puff snacks food.

Type: electrical, steam, gas fired, diesel fired heating type

Model: KX-3-5, KX-5-5, KX-5-8, KX-7-5, KX-7-8

Capacity: 100kg/h to 10 ton/h

Material: stainless steel

Flavoring roller

To mix the oil and flavors on the surface of the food.
Type: single and double flavoring drum
Capacity: 100kg/h to 500 kg/h
Material: stainless steel

Cooling conveyor

To cool and transport the finished food.

Material: stainless steel

feature

1). Belt transmission between motor and gear box, reducing energy consumption.
2). Feeding, main driving device, and rotary cutting device adopt inverter to adjust the speed with a more powerful drive, stable running, and low consumption. Twin Screw Extruder corn Puff Snack Cheese ball-making machine.
3). Screw is made of alloy steel with long life. Segmental assembled screws are applied to more kinds of materials and products
4). An automatic lubrication system can lower down power consumption and prolong the life.
5). Double screws feed equal materials forcibly. Corn Puff Snack Processing Line with Cheap Price
6). Hanging mold and knife seat and bearing knife adjusting system can adjust the knives exactly and swiftly.

service

1). Free consultation service before, during, and after sales;
2). Free project planning and design services;
3). Free debugging of equipment until everything is functional;
4). Free management of equipment's long distance shipping;
5). Free training in equipment maintenance and operating personally;
6). Free new production techniques and formulas;
7). Provide 1 year complete warrantee and lifetime maintenance service;
