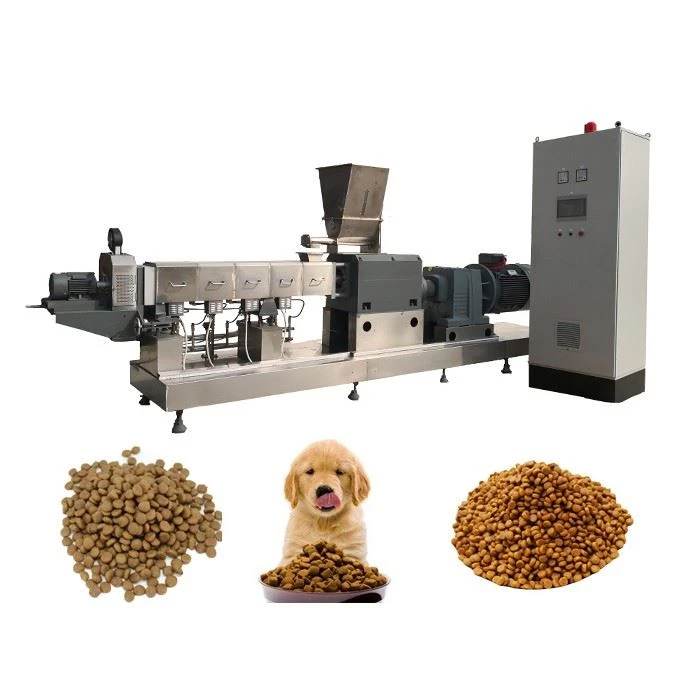

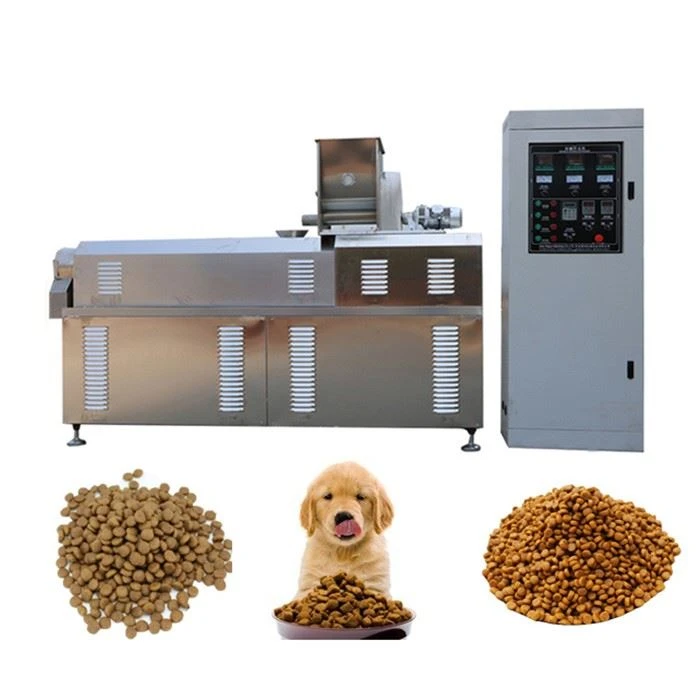

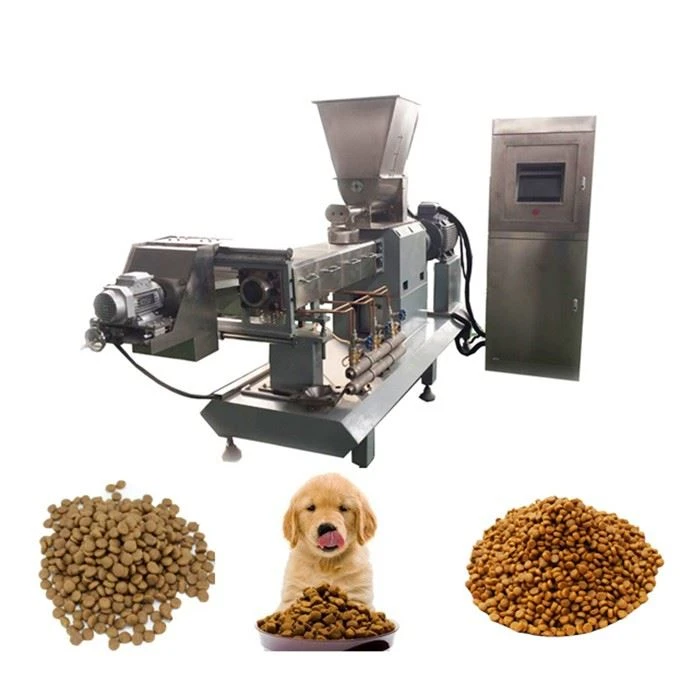

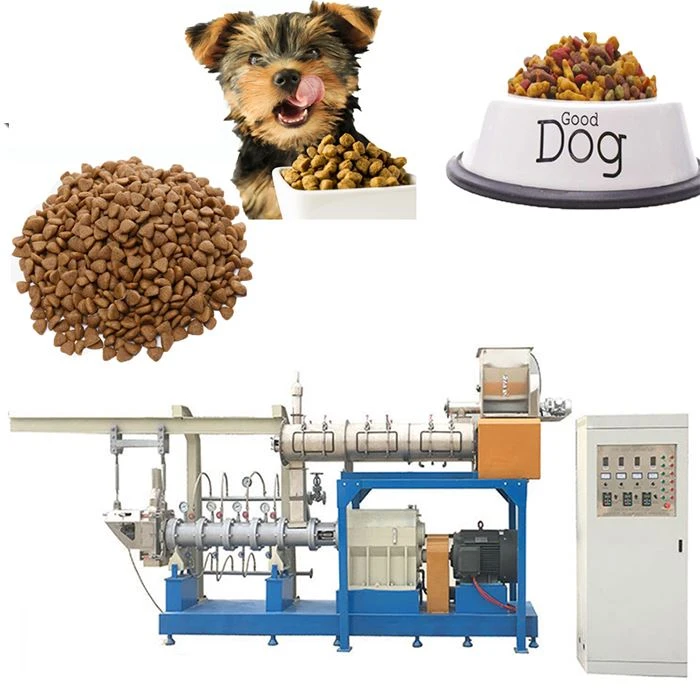

Pet Dog Cat Food Making Machine

1. Certification: CE ISO SGS.
2. Motor:Siemens, ABB or Chinese Brand.
3. Key Selling Points: Long Service Life.
4. Usage: Feed machine.
5. Service: 24h Online.
6. Packing: Wooden Case.

Send Inquiry

Description

Product Description

Dog food and cat food are nutritious food specially provided for pet dogs and cats, high-grade animal food between human food and traditional livestock and poultry feed.
Its function is mainly to provide basic life guarantee, growth and development and healthy nutrients for animal dogs. It has the advantages of comprehensive nutrition, high digestion and absorption rate, scientific formula, quality standard, convenient feeding and prevention of certain diseases.
Generally speaking, the dog food that we often see and talk about in our daily life is a commercial puffed dog food.

Product Video

Related Products

Various shapes can be selected by changing the mold.
Different shapes and sizes of feed can change the mold and adjust the degree of expansion
For example: heart shape, bone shape, circle, triangle, small fish shape, square, etc.

Dog Food Ingredients

Corn flour, rice flour, wheat flour, dehydrated poultry meat, corn gluten, animal fat, poultry protein, poultry liver, beet pulp, minerals, bone meal, fish meal, meat meal, egg powder, soybean oil, fructooligosaccharides, flax hulls Seeds, yeast extract (source of manganese oligosaccharides), DL-methionine, taurine, hydrolyzed crustacean product (source of glucosamine), hydrolyzed cartilage product (source of chondroitin), calendula flower extract (source of lutein) Component Analysis Average: Crude Protein: 32% - Crude Fat: 4%~12% - Crude Ash: 6.3% - Crude Fiber: 2.8% - Calcium 1.0% - Phosphorus: 0.85%

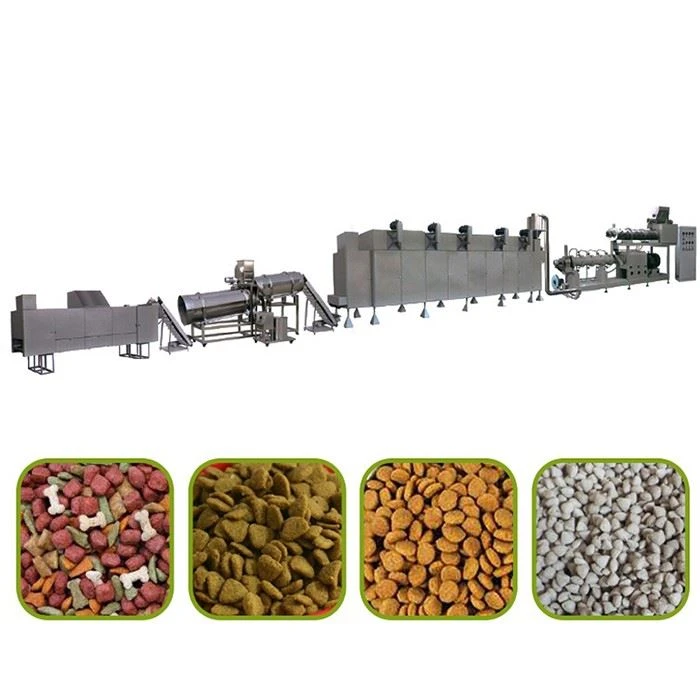

Flow Chart and Model

Raw material processing system - Extrusion system - Drying system - Flavoring system - Cooling system - Packing system

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)

We have a variety of dog food making machine models for you to choose, We can also customize the machine according to your specific capacity needs and budget, whether it is a smaller capacity or a larger capacity. (100-5000kg per hour)

Features of Dog Food Making Machine

Name: Mixer

Main power: 5.5kw

Output: 300kg/time (6-10mins/time)

Material: Stainless steel

Function: Add the crushed raw materials to a certain proportion of water to mix the raw materials, easy to operate.

With pneumatic valve, the mixing of raw materials is completed and the outlet is automatically opened.

Name: DSE75 double screws extruder

Main motor: 37kw (frequency control)

Feeding motor: 0.75kw (frequency control)

Rotary cutting motor: 0.75kw (frequency control)

Total heating power: 14kw

Output: 300~350kg/h

Screw length: 1520mm

Screw diameter: 75mm

Screw material: 38CrMoAl

Oil pump motor: 0.37kw, with oil tank, forced lubrication

Name: Electric dryer

Heating: electric heating

Circulating fan: 0.37kw

Moisture exhaust fan: 0.37kw

Function: Dry the product to remove moisture and increasethe shelf life.

Using frequency conversion speedregulation, the speed is slow, consistent, and stablewhich has a good protective effect on the motor, bearings, etc. and the chain transmission makesthe material drying time longer, the drying effectis good, and the heat utilization rate is high.

Name: 1~5kg/bag packing machine

1. Packing speed: 250~300 packs/hour for single bucket scale.

450~600 bags/hour for double bucket scale

2. Dynamic accuracy: +0.2%.

3. Power supply voltage: AC220V, 50HZ.

4. Gas source pressure: 0.4~0.6Mpa.

5. Gas source loss: 0.05m3/min.

Our Pet Dog Cat Food Making Machine production line is made by mixing many nutritious raw materials, then extruded and puffed by a twin-screw extruder, and then dehydrated by a belt dryer, sprayed by a spraying machine and seasoned. Special food, the water content is generally below 12%. This kind of food is more and more accepted and sought after by people because of its comprehensive and balanced nutrition, long shelf life, convenient feeding and carrying, and affordable price. At the same time, it is also easy to digest. With the characteristics of absorption, the digestibility of this kind of dog food can reach about 70%. This kind of dog food has become more and more popular in many families with pets.

Pet Food Classification

There are many kinds of dog food, and the classification standards are different, so the types of division are also different. The broad division is basically distinguished according to the form of dog food.
1: According to the dog food manufacturing process: ordinary dog food, high-end sandwich dog food
2: According to the dog food manufacturer: industrialized commercial dog food, home-made dog food
3: According to the functions and uses of dog food: maintenance nutrition dog food, growth and development nutrition dog food, health care and healthy dog food, etc.
4: According to the content of nutrients: core premixed dog food, concentrated dog food, full price compound dog food, etc.
5: According to the type and purpose of the dog: dog farm dog food, family pet dog food and meat dog farm food, etc.
6: According to the brand and place of origin: original imported dog food, imported repackaged dog food, domestic OEM dog food, joint venture dog food, domestic independent brand dog food, etc.
