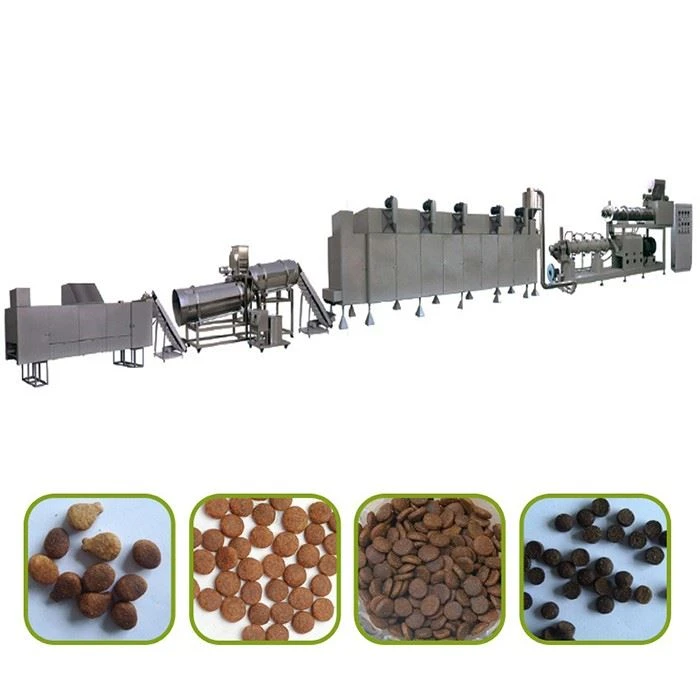

Pet Cat Feed Production Line Machine
1.Certification: CE ISO SGS.
2.Motor:Siemens, ABB or Chinese Brand.
3.Output:100-5000kg/h
4.Power:22/30/37/55/75/90/110/130kw
5.Voltage:3ph/380v/50hz or Customized
6.Material: Stainless steel
Description
Product Introduction
Our pet food production line machines are based on the production process of powdered compound feed, taking into account both raw material puffing and product puffing.
(1) Raw material puffing: The raw material enters the puffing machine after being cleaned and pulverized. After puffing, those that need to be cut are cut by the cutting machine and then enter the dryer. Measure and pack.
(2) Product puffing: After mixing the powdery product, it can directly enter the process of puffing, cutting, drying, etc., but the puffed fish and shrimp and other aquatic materials need to be finely pulverized before puffing and other processes. If the dried material needs to be sprayed with liquid (referring to oil and water-soluble vitamins), it should be sprayed with liquid first, and then cooled, crushed, sieved and measured for packaging.
Product Video
Final product
Dog food production machine production line can produce pet food like: cat food, dog food and fish food.
Raw Material
1. Meat meal or animal protein: This can be sourced from chicken, beef, lamb, or fish. It serves as the primary source of protein in the dog food.
2. Cereals or grains: Such as corn, wheat, barley, rice, and oats. These provide the necessary carbohydrate and fiber content for dog food.
3. Fats and oils: Such as animal fat, vegetable oil, or fish oil. They provide the essential fatty acids that dogs need for a healthy coat and skin.
Machine Model
We have a variety of dog food making machine models for you to choose, We can also customize the machine according to your specific capacity needs and budget, whether it is a smaller capacity or a larger capacity.
|
Model |
Power |
Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Features Of Twin Screw Dog Food Extruder Machine
advantages
1. The cat food machine model has a built-in screw and an extended screw sleeve. The material rotary cutting time is long, the temperature can be adjusted, and the output torque can be adjusted, so that the produced material has a high degree of expansion and a smooth surface.
2. It can also produce different feeds. This model can be used for floating aquatic feed pellets, sinking fish, shrimp and crab feed pellets, pet feed pellets, fishing feed pellets, etc.
3. The granulation structure with a wide range of international use adopts the form of soft knife bonding to realize step-less speed change, can cut the output into desired length products at will, and is not easy to produce burrs.
4. The design is novel, unique, simple in structure, easy to install and disassemble, and easy to operate.
5. The screw sleeve and screw are made of special wear-resistant and high-temperature-resistant alloy steel materials and are heat-treated, which has the advantages of wear resistance and long life.
6. It is equipped with a unique pressurized die device to ensure the feed output and quality and is equipped with an electric heating device to improve the feed expansion rate.
7. The main motor adopts high-quality Y series two-phase and three-phase motors to ensure strong power.
8. The speed-regulating feeding device is more convenient to operate, and the feeding is uniform to prevent the machine from being held up.
9. The discharge template is easy to replace. If you want to produce different raw materials, you only need to change the required mold shape and size.
Project Cases
600-800kg per hours fish food Making machine
Country: Turkey
Date: May 10th, 2018
2-2.5ton Floating fish feed pellet machine
Country: Mali
Date: July 18th, 2019
1-1.5ton/h Pet food-making machine
Country: Russia
Date: Nov 29th, 2020
3-3.5ton Slow sinking fish food machine
Country: Nigeria
Date: Feb 06th, 2017
3-3.5ton per hours Fish food pellet machine
Country: Africa
Date: Oct 29th, 2019
600-800kg/h fish feed machine
Country: Congo
Date: Jan 28th, 2022
Certifications
Our Company Services
1. Provide you with consultation on market, equipment, technology, raw materials, packaging and other aspects.
2. Assist you in equipment selection, process design, and plant optimization layout. If necessary, door-to-door service is available.
3. According to your products, we can design a compensation plan for raw material changes and conduct on-site demonstrations. Various basic formulations are available.
4. Design, manufacture and application test can be carried out according to your needs, and targeted training can be provided.
5. Design a reasonable packaging and transportation plan for you, handle transportation on behalf of you, and send technical personnel to install, debug and train personnel.
6. Equipment warranty for 1 year, long-term discounts, supply of spare parts.
Packing & delivery
We clearly adopt the safest packaging and transportation methods according to the actual situation. It can also be arranged according to the needs of customers.
