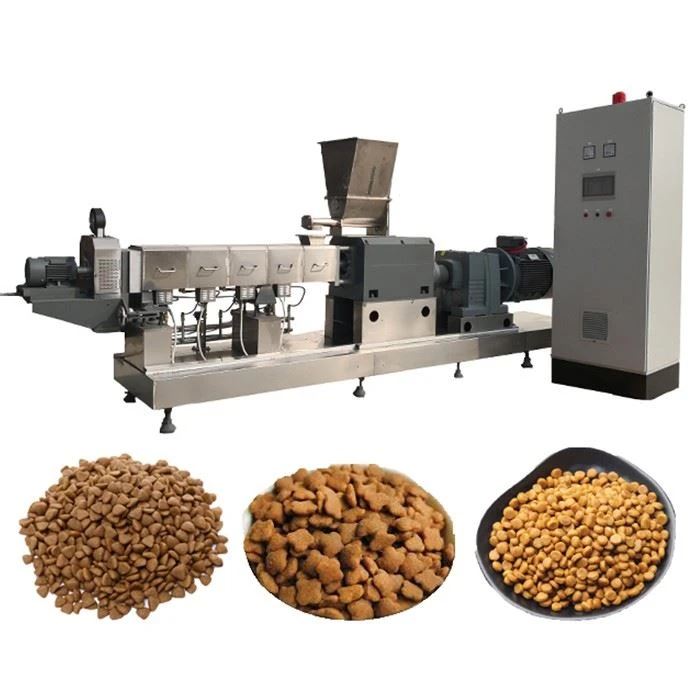

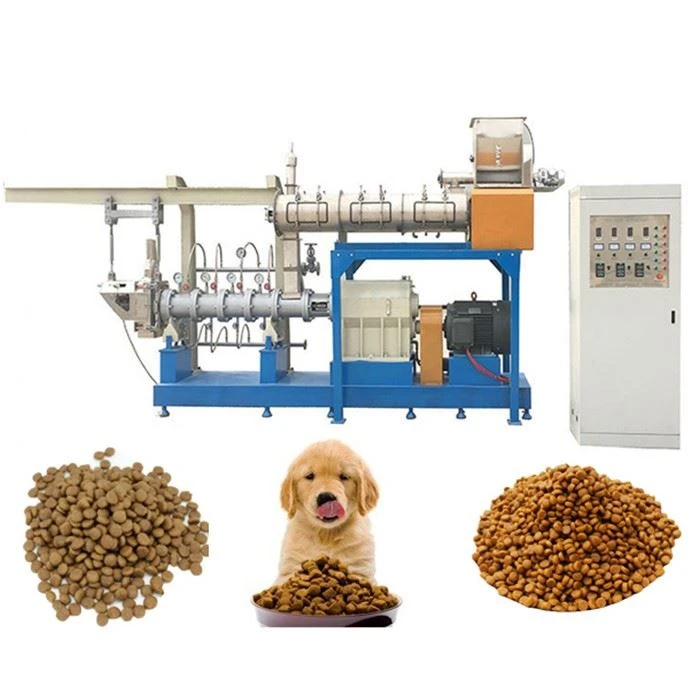

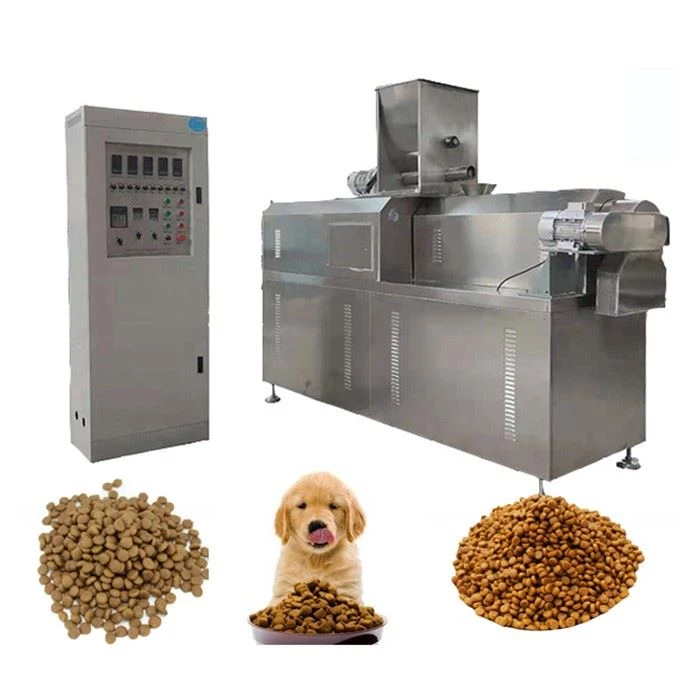

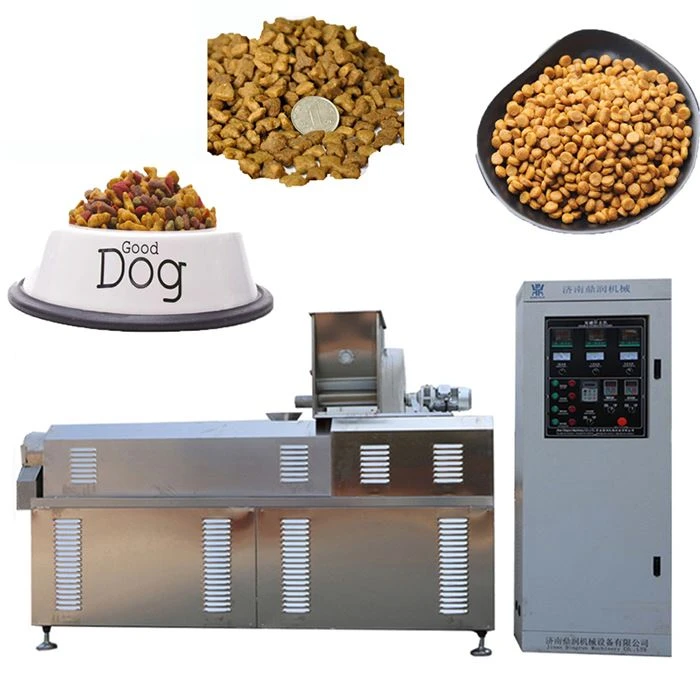

Dry Pet Dog Cat Food Machine
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Voltage: 3ph/ 380v/ 50 Hz, etc.
4. Dimension :17000*1300*2200mm(DSE65)
5. Type: Pet feed processing Line.
6. Port: Qingdao, Shandong Province, China.
Description
Product Video
Dog Food Sample
Dog food production machine production line can produce pet food like: cat food, dog food and fish food. It use the grains powder, vegetabel, fruit, meat, bone, fish meal, animal fat, salt as the raw material.
It can produce the prouct size 1mm-30mm to suitable for different age animal.
Description
A dry pet dog cat food processing machine is plant or animal material intended for consumption by dogs or other canines. In the extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.
Raw Material
The dry pet dog cat food machine production line uses grain meal, soybean meal, meat meal, fish meal, bone meal, rice bran, milk powder, etc. as raw materials. Double screw pet food extruder can use different ingredients in pet food formulations: wheat flour, corn flour, corn grits, soy meal, fresh meat, bone powder, or fish flour. and also can also include additives such as animal and vegetable fat and minerals, amino acids and vitamins, and flavor enhancers. The advanced extrusion concept is the latest technology for production in the aquatic feed and pet food industries.
Machine Model
We have a variety of pet dog cat food-making machine models for you to choose, the automatic dry dog food machine processing line can be applied to cats, dogs, fish, shrimps, birds, etc.
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Features of Dog Food Machine
Name: DSE95S double screws extruder
Main motor: 90kw (frequency control)
Feeding motor: 1.5kw (frequency control)
Rotary cutting motor: 3kw (frequency control)
Output:1000~1500kg/h
Screw length: 2100mm
Screw diameter: 95mm
Screw material: 38CrMoAl
Modulator power: 3kw
Heating: steam heating, high efficiency, andreliable performance
Oil pump motor: 0.75kw, with the condenser, filter element, internal circulation, and forced lubrication, reducing the temperature of the oil, cooling the distribution box and the bearing and prolonging the service life.
Name: Steam Dryer
Main motor: 1.5kw
Heating: Steam heating, high efficiency
Output: 0-2000kg/h
Circulating fan: 4kw*5
Moisture exhaust fan: 5.5kw
The top of the oven is equipped with acirculating fan and a moisture exhaust fan to ensure the same temperature in the oven to ensure the product drying effect.
Name: Cooling box
Main motor: 0.37kw
Output: 1000-2000kg/h
Cooling power: 0.75kw
Material: Stainless steel
Mesh belt: width 500mm, chain is carbon steel, pitch 25.4, mesh material 204 pitch 5 pitch 10mesh diameter 1.0, thread diameter 1.2string shaft diameter 8mm, material 201
Name: 5~10kg/bag packing machine
1. Packing speed: 220~280 bags/hour for single bucket scale
440~550 bags/hour for double bucket scale
2. Dynamic accuracy: +0.2%.
3. Power supply voltage: AC220V, 380V, 50HZ
4. Gas source pressure: 0.4~0.6Mpa
5. Gas source loss: 0.1m3/min.
advantages
（1）Unparalleled Efficiency
Our pet food extruder operates seamlessly, allowing for continuous production and impressive output capacity. Say goodbye to bottlenecks and maximize your productivity.
（2）Tailored to Perfection
We understand that pets have unique dietary needs and preferences. That's why our production line offers unrivaled customization options. From different recipes and flavors to diverse shapes and sizes, you can cater to the specific requirements of every pet.
（3）Consistent Quality, Every Time
With our extrusion process, you can rest assured that the quality and texture of your pet food will be consistently exceptional. The carefully controlled extrusion ensures that the nutritional value of the ingredients remains intact, providing pets with the nourishment they need.
（4）Extended Shelf Life
Our pet food processing line incorporates drying and cooling processes that contribute to preserving the freshness and extending the shelf life of your pet food products. Give pet owners peace of mind knowing that the food they purchase for their beloved pets remains wholesome and delicious.
（5）User-Friendly Operation and Maintenance
We believe in simplifying processes without compromising results. Our modern production lines are designed with user-friendly interfaces, making operation a breeze. Additionally, the easy-to-clean components reduce downtime and labor costs, allowing you to focus on what matters most: creating exceptional pet food products.
Our Services
1. Guaranty: One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any questions, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting services and are always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English. （optional）
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving the deposit
8. Installation: Send one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside. （optional）
Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
