Dry Food For Dog Machines
1.Certification: CE ISO SGS.
2.Motor:Siemens, ABB or Chinese Brand.
3.Place of Origin: Shandong, China
4.Apply: pet ,dog ,fish ,cat……
5.Type: Twin Screw Extruder
6.Advantage: Easy Control
Description

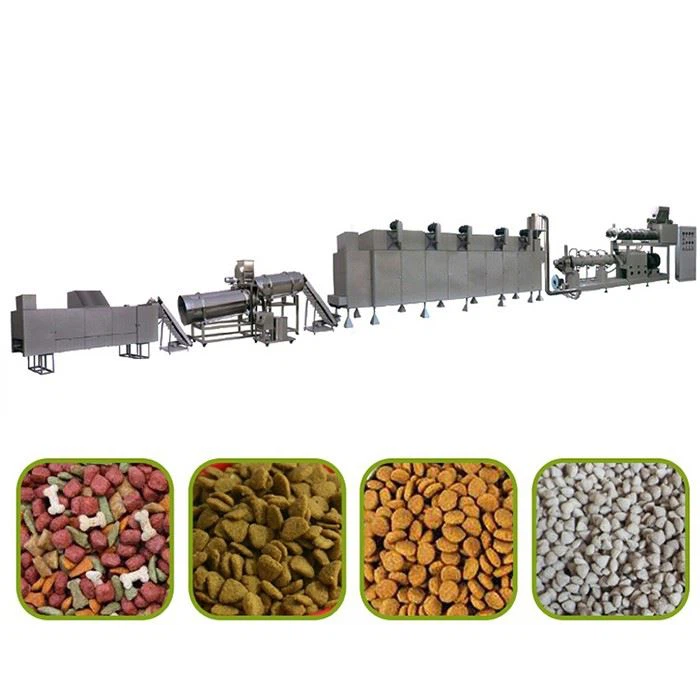

machine show
principle of pet food extrusion
Pet feed extrusion is a high-temperature, high-pressure food processing technology that gelatinizes starch and denatures protein in raw materials through the process of heating, pressure and expansion. It also destroys harmful microorganisms and parasites and improves the hygienic quality of feed. After puffing treatment, the nutrients in the feed are easier to digest and absorb by pets, and at the same time, the palatability of the feed can be improved, making the pet like it more.
final products
main Raw Material
extruder models
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Name: Mixer
Main motor: 4kw
Output: 50kg/time (5~6min each time)
Material: Stainless steel
Function: Mix the raw materials according to the proportion and add a certain proportion of water for mixing. The operation is simple and the cleaning is convenient.
Name: Screw conveyor
Main motor: 1.1kw
Material: Stainless steel
Output: 0-1000kg/h
Function: The raw materials mixed in proportion are transporteato the extruder, with simple operation, no leakageand no pollution.
Name: DSE70 double screws extruder
Main motor: 30kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 14kw
Output: 200~250kg/H
Screw length: 1520mm
Screw diameter: 70mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Name: Electric dryer
Heating: electric heating
Circulating fan: 0.37kw
Moisture exhaust fan: 0.37kw
Function: Dry the product to remove moisture and increase the shelf life.
Using frequency conversion speedregulation, the speed is slow, consistent, and stablewhich has a good protective effect on the motor, bearings, etc. and the chain transmission makesthe material drying time longer, the drying effectis good, and the heat utilization rate is high.
Advantages of pet feed extrusion
1.Improve palatability: The puffed feed tastes crisper and has a stronger aroma, which can improve the appetite and palatability of pets.
2.Easy to digest and absorb: The nutrients in the puffed feed are easier to digest and absorb by pets, which can improve the immunity of pets.
3.High hygienic quality: The puffing process can kill harmful microorganisms and parasites in the raw materials, improve the hygienic quality of the feed, and reduce the risk of pet illness.
4.Good stability: The expanded feed has good stability and shelf life, which can ensure the quality and taste of the feed.
Packing & Delivery
