Dry Dog Food Machine
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Voltage: 3ph/ 380v/ 50 Hz, etc.
4. Dimension :17000*1300*2200mm(DSE65)
5. Type: Pet feed processing Line.
6. Port: Qingdao, Shandong Province, China.
Description
Product Video
Dog Food Sample
Dog food production machine production line can produce pet food like: cat food, dog food and fish food. It use the grains powder, vegetabel, fruit, meat, bone, fish meal, animal fat, salt as the raw material.
It can produce the prouct size 1mm-30mm to suitable for different age animal.
Simple Description
The Dry dog food machine is suitable for making pet dry food such as dogs, cats, fish, etc. By changing the mold of the extruder, it can produce food of different sizes and shapes. Currently, we have different capacities to choose from, from 100kg/to h-5000kg/h. We can also provide recipes for pets of different ages.
* Our dry dog food machine is used to produce various dog food pellets. Adopt Double Screw Extrusion Technology, different from single screw extruder, its highly automatic, easy to operate and maintain, and stable performance are the reasons why popular in the pet food machine market nowadays.
* Different capacity production lines for customers' choice. Our smallest capacity production line is 100-150kg/h; bigger is 200-250kg/h; 350-500kg/h and 1000-5000kg/h
* Change the formula, the machine also can make fish feed pellets.
* And changing different molds we can get different shape of dog food pellets.
Raw Material
Our dry dog food machine processing line uses meat meal, bone meal, soybean meal, fish meal, etc. as the main raw materials, and adds appropriate minerals and trace elements to have the protein and other nutrients required by pets, with a balanced combination and exquisite taste. Very suitable for pets.
Machine Model
We have a variety of dog food making machine models for you to choose, the automatic dry dog food machine processing line can be applied to cats, dogs, fish, shrimps, birds, etc.
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Features of Dog Food Machine

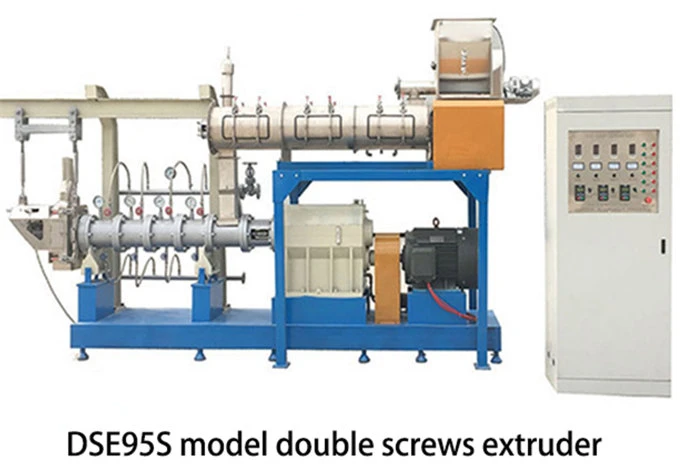

Name: DSE95S double screws extruder
Main motor: 90kw (frequency control)
Feeding motor: 1.5kw (frequency control)
Rotary cutting motor: 3kw (frequency control)
Output:1000~1500kg/h
Screw length: 2100mm
Screw diameter: 95mm
Screw material: 38CrMoAl
Modulator power: 3kw
Heating: steam heating, high efficiency, andreliable performance
Oil pump motor: 0.75kw, with the condenser, filter element, internal circulation, and forced lubrication, reducing the temperature of the oil, cooling the distribution box and the bearing and prolonging the service life.

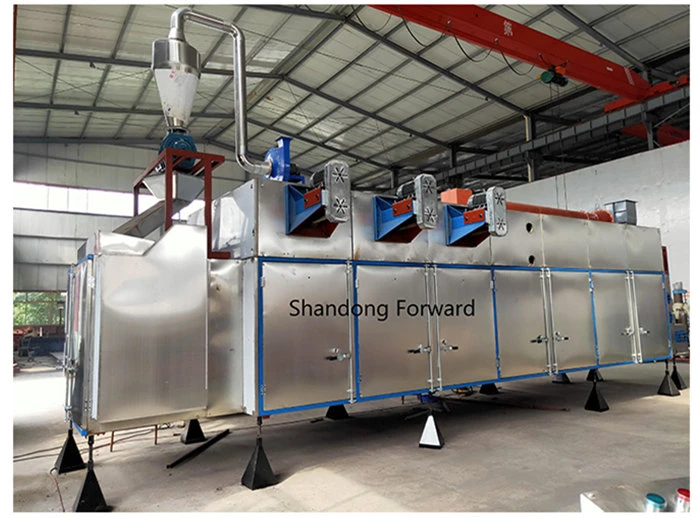

Name: Steam Dryer
Main motor: 1.5kw
Heating: Steam heating, high efficiency
Output: 0-2000kg/h
Circulating fan: 4kw*5
Moisture exhaust fan: 5.5kw
The top of the oven is equipped with acirculating fan and a moisture exhaust fan to ensure the same temperature in the oven to ensure the product drying effect.
Name: Cooling box
Main motor: 0.37kw
Output: 1000-2000kg/h
Cooling power: 0.75kw
Material: Stainless steel
Mesh belt: width 500mm, chain is carbon steel, pitch 25.4, mesh material 204 pitch 5 pitch 10mesh diameter 1.0, thread diameter 1.2string shaft diameter 8mm, material 201
Name: 5~10kg/bag packing machine
1. Packing speed: 220~280 bags/hour for single bucket scale
440~550 bags/hour for double bucket scale
2. Dynamic accuracy: +0.2%.
3. Power supply voltage: AC220V, 380V, 50HZ
4. Gas source pressure: 0.4~0.6Mpa
5. Gas source loss: 0.1m3/min.
1. Dry dog food machine continuous running, high quantity capacity, can meet strict production deadlines.
2. The dry dog food machine continuous processing is low in cost, precise process control and automation reduces waste and boost, easy cleaning and maintenance.
3. Dry dog food machine and cutting produces a very uniform end product of constant cross section and size. The process is extremely controllable and reliable, allowing high quality to be maintained throughout.
4. Dry dog food machine is adaptable, for application to a wide range of raw materials. Also, extrusion can produce pet treats in a variety of shapes and colors.
Our Services
Pre-sale services:
1). Provide professional advisory services
2). Communicating with customer and learn your requirement
3). Design the machine according to customer requirement
Services during the sales:
1). Debugging of equipment until everything is functional
2). Test machine for customers
3). Packing machines and delivery on time
After-sale services:
1). Provide installation, commissioning and training
2). Provide formula
3). Provide necessary technical support and update information
Packing & Shipping
• Inside package is plastic film, outside is a wooden or plywood case (based on the customer's need).
• Only plastic film nude packing with wooden pallets.
