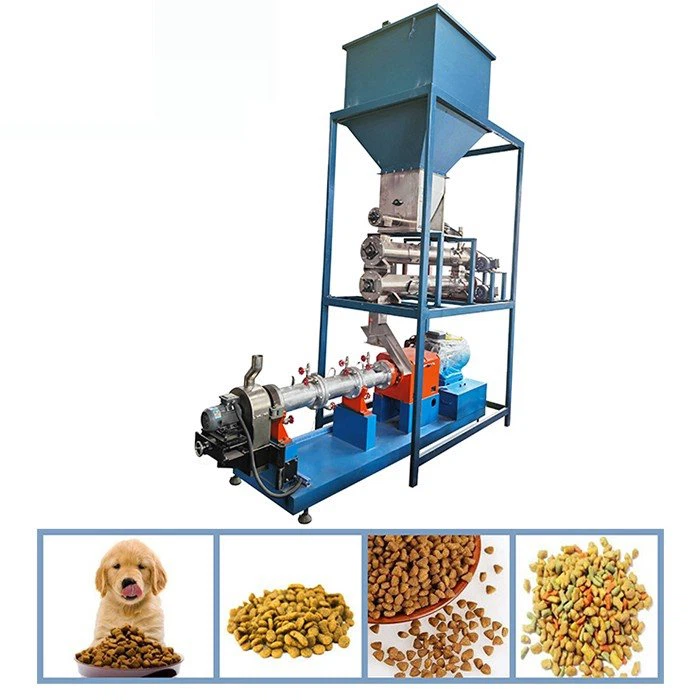

Dog Food Pellet Machine

1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Screw material: Alloy-38CrMoAl.
4. Bearings: NSK.
5. After-sales Service Provided: 24 Hours.
6. Key Selling Points: High Productivity.

Send Inquiry

Description

Product Description

1. Raw materials of Automatic pet food pellet making machine line:

Adopts corn flour, fish meal, bone meal, meat meal, soyabean powder etc as raw materials.

2. Products of Automatic pet food pellet making machine line:

Different shapes are made by adjusting the dies from extruder

3. Capacity of Automatic pet food pellet making machine line:

120-150kg/h, 200-250kg/h, 300-350kg/h, 400-500kg/h, 1t/h-1.5t/h, 2-5t/h.

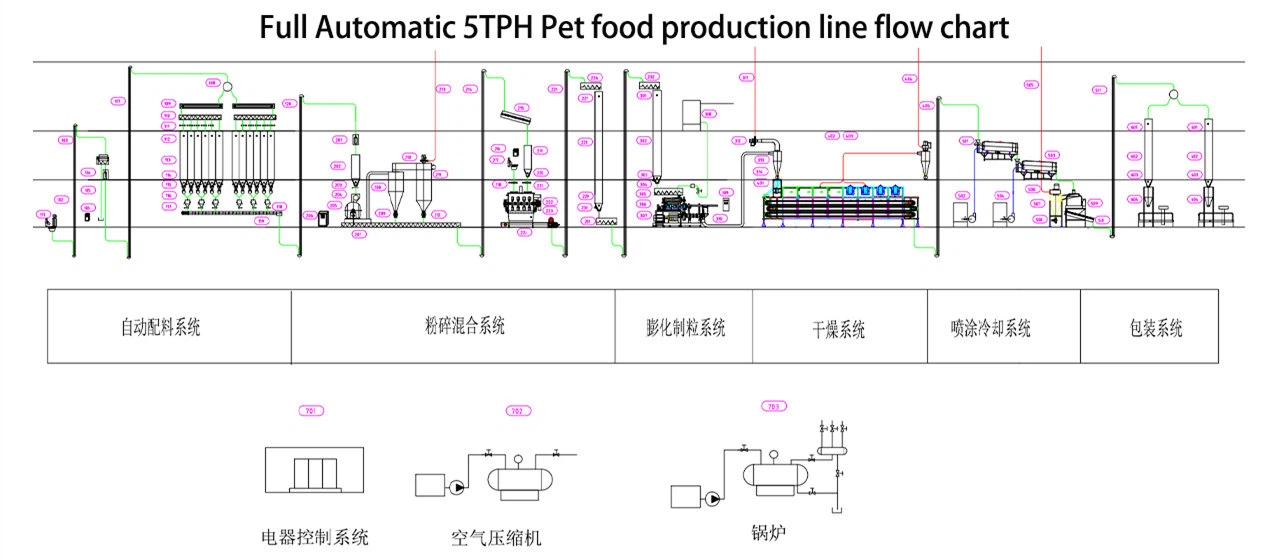

4. Flow chart of Automatic pet food pellet making machine line:

Mixing system - Extrusion system - Drying system - Flavoring system - Cooling/Packing system

Product Video

Sample Product

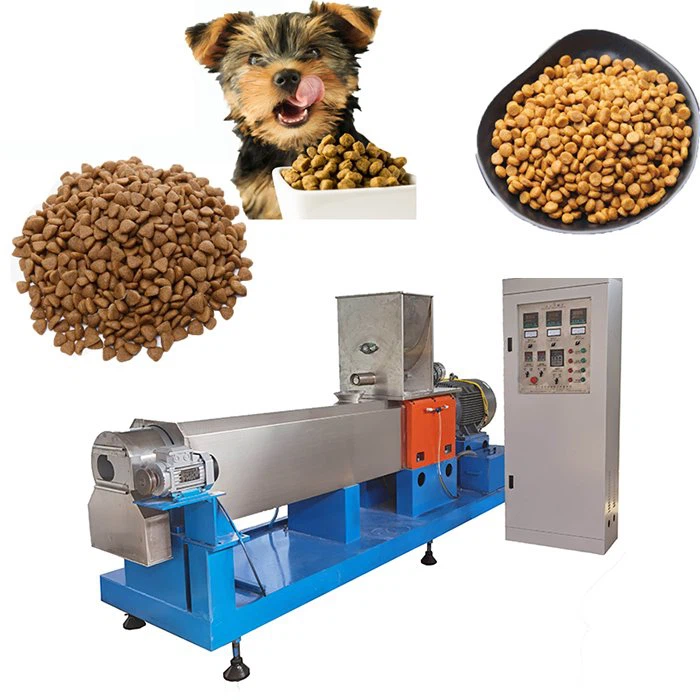

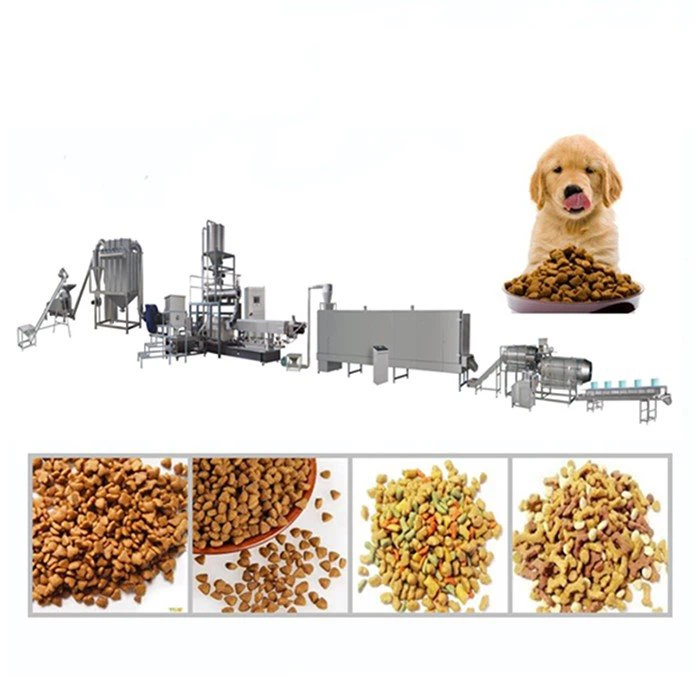

Dog food production machine production line can produce pet food like: cat food, dog food and fish food. changing different mold we can get different shape dog food pellet. Such as bone shape, heart shape, small fish shape, triangle shape, etc.

Machine Parameters

Different capacity production line for customer choose. Our smallest capacity production line is 100-150kg/h; bigger is 200-250kg/h; 350-500kg/h and 1000-5000kg/h, etc.

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)

Features of Some Machine

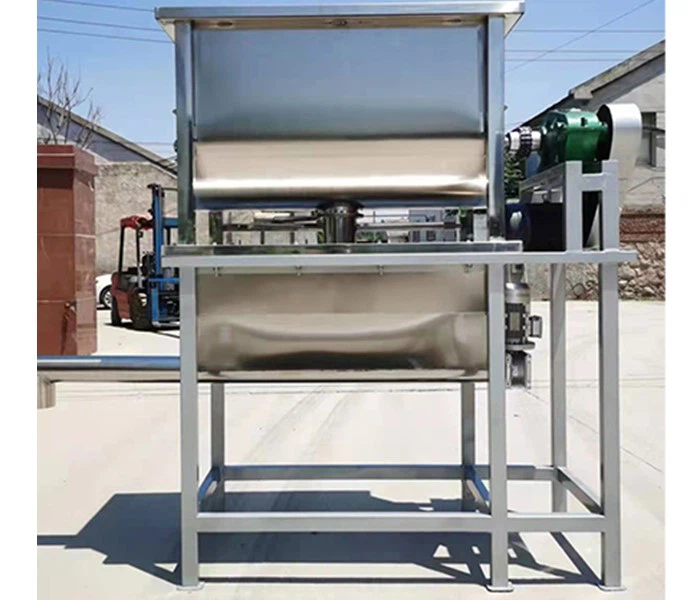

Name: Double-layer mixer

Main motor: 11kw

Output: 500kg/time (5~8min each time)

Material: Stainless stee

Capacity: both 1005L

Function: Mainly used for mixing various powdery or granular raw materials, dry and wet, mixing and mixing on the top, the bottom is the storage silo to add the discharge dragon, the height of the discharge opening can be customized according to requirements.

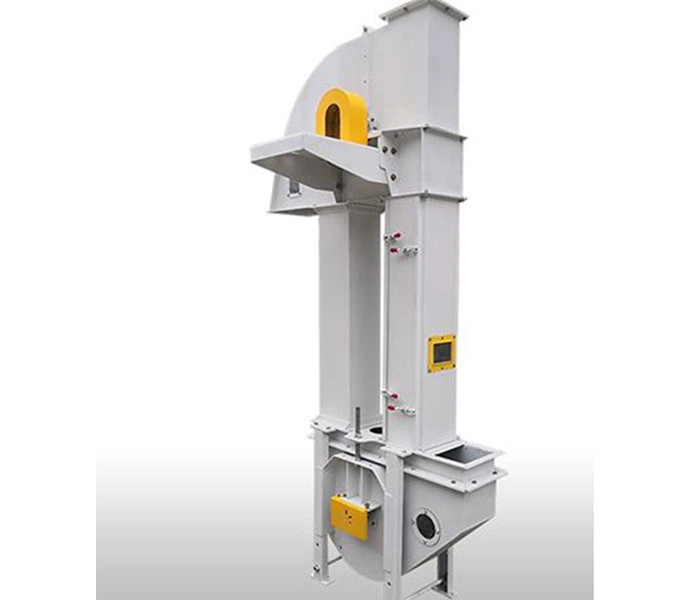

Name: Bucket elevator

Main motor: 2.2kw

Output: 1000-2000kg/h

Material: PVC

Function: The material is conveyed from low to high, and the environment is sealed in the whole process, no leakage and pollution, and product quality is guaranteed.

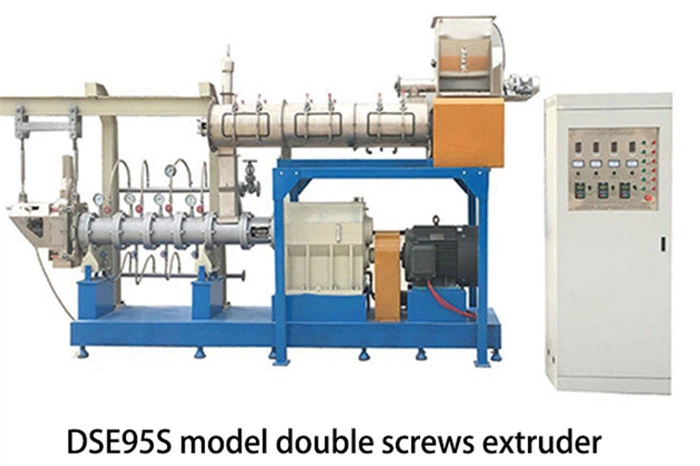

Name: DSE95S double screws extruder

Main motor: 90kw (frequency control)

Feeding motor: 1.5kw (frequency control)

Rotary cutting motor: 3kw (frequency control)

Output: 1000~1500kg/h

Screw length: 2100mm

Screw diameter: 95mm

Screw material: 38CrMoAl

Modulator power: 3kw

Heating: steam heating, high efficiency, andreliable performance.

Oil pump motor: 0.75kw, with the condenser, filter element, internal circulation, and forced lubrication, reducing the temperature of the oil, cooling the distribution box and the bearing.and prolonging the service life.

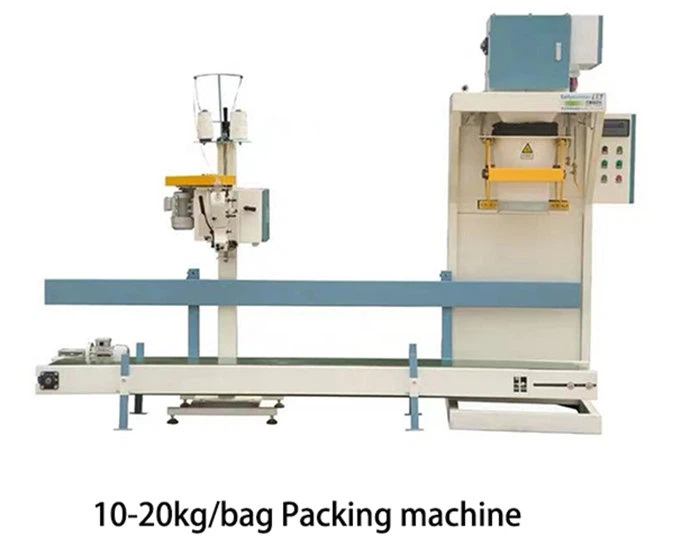

Name: 10-20kg/bag packing machine

1. Packing speed: 200~280 bags/hour forsingle bucket scale, 400~550 bags/hour for double bucket scale

2. Dynamic accuracy: +0.2%.

3. Power supply voltage: AC220V, 380V, 50HZ.

4. Gas source pressure: 0.4~0.6Mpa.

5. Gas sourceloss: 0.1m3/min.

1. Our dog pet food machine line's main motor use the SIEMENS and the relay is ABB.

2. Converter(used to control the speed of feeding system, cutting system and control system, can protect of the motor) use the brand of Delta, Pioneer, CHNT or Schneider.

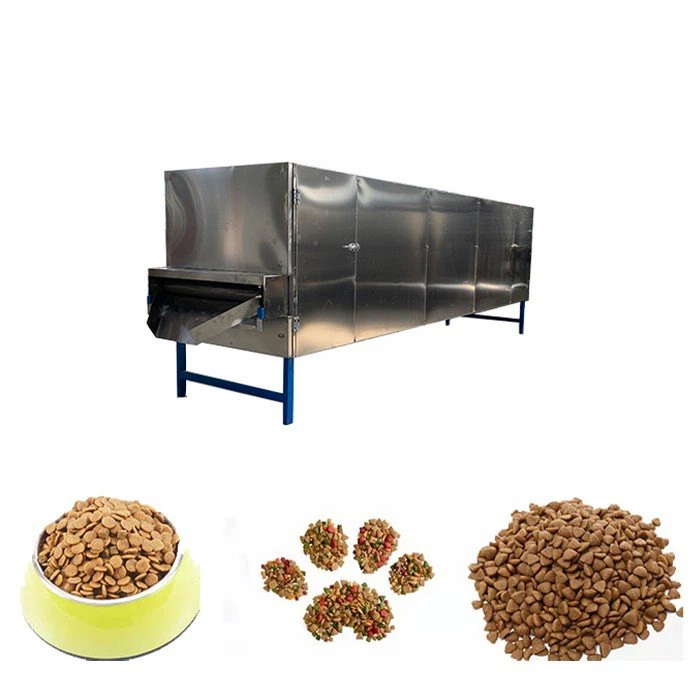

3. Oven &Dryer includes hot air cycle system, it has electricity, oil, steam, gas and it depends on your choice.

4. Certificate: CE, SGS, BV and we can provide the formula.

5. Guarantee time is 1 year.

6. After-sales Service Provided: Free spare parts, Field installation, Commissioning and training, Field maintenance and repair service, Video technical support, Online support.

Certifications

During more than 16 years food machine production, we got much experiences and many certificates, like the CE, SGS, High-tech certification from China government. We will cherish the recognition from all walks of life, and do our best to serve customers around the world.

FAQ

1. Are you manufacturer or trader?

A: Certainly we are manufacturer. Welcome to visit us to check it!

2. Do you supply formula to buyer?

A: Yes, we supply free formula to buyer.

3. What kind of fuels we can choose during the pet food making machine?

A: You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation.

4. How much are a machine needs?

A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.

5. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?

A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.

6. Do you supply packing machine?

A: We have long-term cooperation packing machine supplier, we will help to contact them.

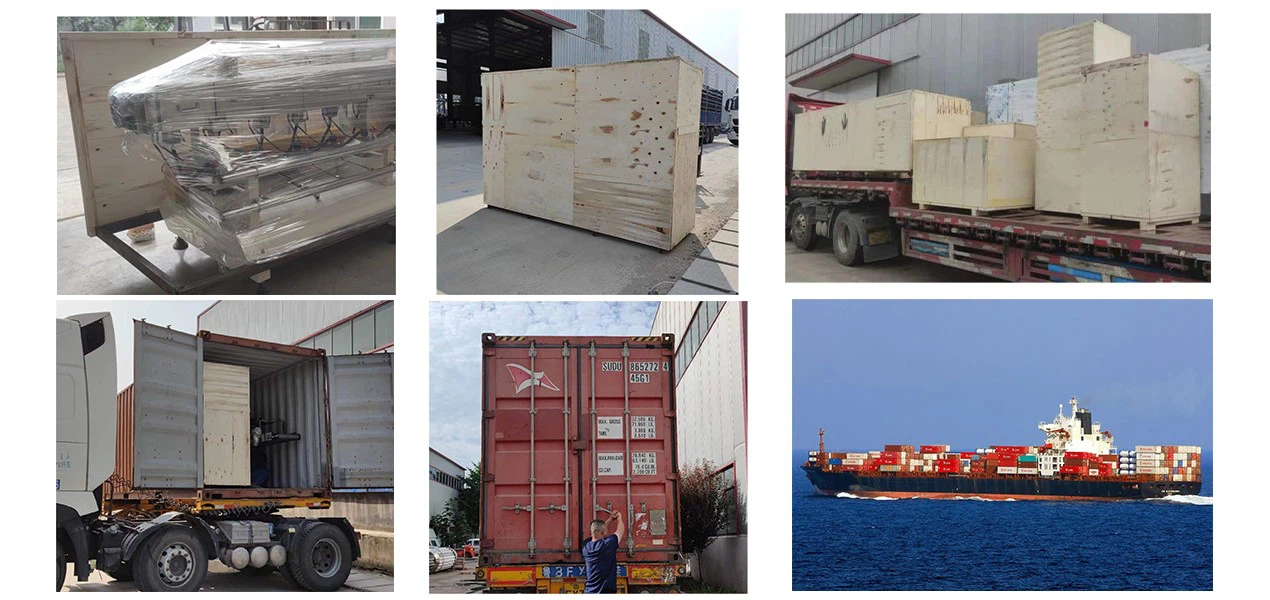

Packing & Shipping

1. We will pack all necessary machines into wooden cases of feed-making machines for fish. For the drying machine, and heavy extruders, we will fix them in the container with very strong iron wire.

2. If by LCL for small quantity machines, we will let send to QINGDAO port for loading.
