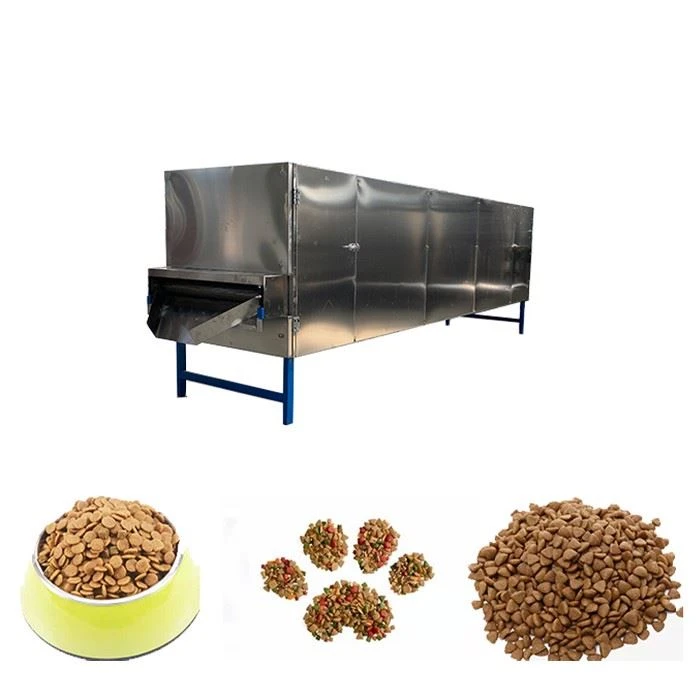

Dry Cat Food Extruder Production Line
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Material quality: SS304.
4. Energy: electricity, oil diesel, gas, steam.
5. Core Components: Gear, Motor, Bearing.
6. Key Selling Points: Automatic.
Description
Product Video
Products Description
The dry cat food extruder production line is a modern and innovative machine that plays a vital role in the production of high-quality dry cat food. The production line is equipped with advanced technology and tools to ensure the production of nutritious and delicious cat food that meets the nutritional needs of pets.
(1) Automation. The system ensures that the entire production process is completed with minimal human input, thereby reducing error levels and increasing productivity. In addition, this feature ensures that the produced cat food is of consistent quality and texture, providing pet owners with a reliable source of high-quality cat food.
(2) Multifunctional. The production line can produce a variety of dry cat food formulas to meet the different nutritional needs and preferences of different cat breeds. The production line can produce cat food in various shapes, sizes, and textures, further increasing the appeal of cat food.
(3) Hygienic and safe. The production line is made of high-quality food-grade materials and is easy to clean and sterilize, ensuring that the cat food produced does not contain any harmful contaminants that may be detrimental to your pet's health.
pet food flow chart
Mixing system---Extrusion system----Drying system----Flavoring system---Packing system
Product Sample
（1）A dog food production line is a kind of pet-feeding machinery that uses a high puff degree corn powder cereal as the basic raw material.
（2）The pellets can be of different shapes, contain vitamins, minerals, and other nutrients, and can also be coated with flavors or colors.
（3）The final products can be stored in various containers and are highly nutritious.
（4）The pet food production line is capable of producing various types of feed, including dry pellets, floating feed for fish, and cat foods.
Technical Parameters
All machines are suitable for industrial three-phase voltage: 380V/50Hz, single-phase: 220V/50Hz, we can make according to the local voltage of customers in different countries.
|
Model |
Installed Power |
Real Power |
Output |
Dimension |
|
DSE - 65 |
74 kw |
52 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
105 kw |
75 kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
205kw |
150 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
165kw |
90kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Extruder Details
Name: Mixer
Main motor: 4kw
Output: 50kg/time (5~6min each time)
Material: Stainless steel
Function: Mix the raw materials according to the proportion and add a certain proportion of water for mixing.
The operation is simple and the cleaning is convenient.
Name: DSE65 double screws extruder
Main motor: 22kw (frequency control)
Feeding motor: 0.75kw (frequency control)
Rotary cutting motor: 0.75kw (frequency control)
Total heating power: 12kw
Output: 100~150kg/h
Screw length: 1280mm
Screw diameter: 65mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Name: Double drum seasoning line
Output: 0-500kg/h
Main motor: 0.75KW
Material: Stainless steel
Function: Through continuous rotation, the grease sprayedby the fuel injector is evenly covered on the product.
With a frequency conversion speed regulationsystem, the base of the movable equipment isconvenient and quick.
high-protein cat food advantages
High-protein cat food has many benefits for your feline friends. Proper nutrition is essential for a healthy, active, and happy cat, and high-protein cat food can help provide optimal nutrition for your furry companion.
(1) Help your cat maintain a healthy weight. Cats are obligate carnivores, which means they need a lot of protein in their diet for energy. When cats eat high-protein cat food, they digest it more efficiently and quickly, helping them maintain a healthy weight.
(2) It can improve the cat’s muscle tone and strength. Cats need enough protein to support muscle growth and repair. High-protein cat food can help your cat build and maintain strong muscles, which are essential for their health and mobility.
(3) Third, it can help support your cat’s immune system. Protein is the building block of a healthy immune system. Cats who eat a diet rich in high-quality protein are better able to fight off infections and maintain overall health.
(4) Fourth, high-protein cat food can also help reduce the risk of cats suffering from certain diseases. For example, older cats can benefit from a high-protein diet because it can help prevent muscle loss and maintain their mobility.
Certifications
We provide the certificates of the equipment and our factory for you in order to guarantee the quality and profession.
Package & Shipment
Packing: inside a plastic bag, outside wooden case (Based on the customers' need adopt the wooden case or wooden pellets, etc.) for dog food production line.
Transportation: shipping, train, express or upon clients' demands for pasta making machine.
