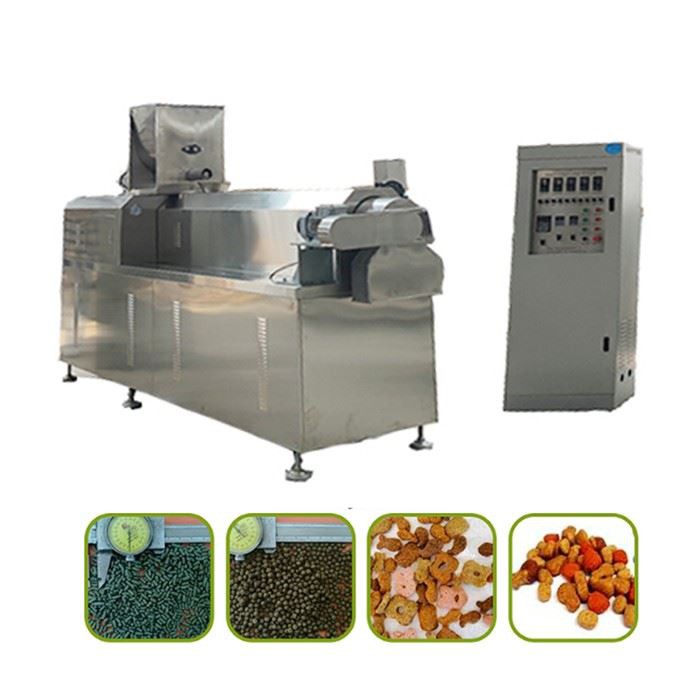

Floating Fish Feed Processing Machine

The floating fish feed processing machine adopts stable twin-screw structure, which is mainly applied to produce various floating and sinking aquatic feeds. Well-blended raw materials are steadily delivered into the barrel by twin screws, then fully extruded and ripened under high temperature and high pressure. The internal material temperature can exceed 100℃ during processing. After being extruded through customized moulds, the materials cool rapidly to normal temperature and expand in size. The finished feed pellets feature light weight and good water floating performance, which can stably float on water surface for a long time.

Send Inquiry

Description

Floating fish feed processing machine video

raw materials of floating fish feed processing machine

This equipment uses corn, rice, soybean, meat, animal wastes as raw materials, and can be expanded to produce different particle shapes, suitable for different pets

core compoents of floating fish feed processing machine

Double-layer mixer

Main motor :11kw

Function:Mainly used for mixing various powdery or granular raw materials,

dry and wet, mixing and mixing on the top, the bottom is the storage silo to

add the discharge dragon, the height of the discharge opening can be

customized according to requirements

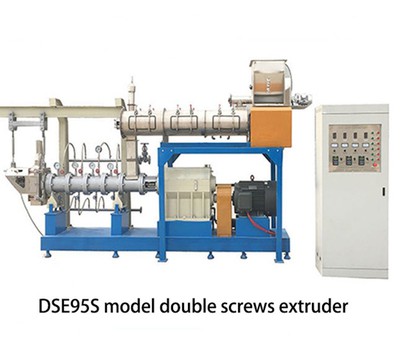

DSE95S double screws extruder

Main motor: 90kw

Main parameters of floating fish feed processing machine:

Feeding motor: 1.5kw with frequency conversion control

Cutting motor: 3kw frequency adjustable

Production output: 1000~1500kg per hour

Screw length: 2100mm Screw diameter: 95mm

Screw material: 38CrMoAl alloy steel

Conditioner motor power: 3kw

Lubrication oil pump motor: 0.75kw

Electric dryer

Heating: electric heating

Function: Matched with floating fish feed processing machine, it dries finished feed pellets to eliminate excess moisture and effectively prolong storage life. It adopts frequency conversion speed control, running smoothly at steady low speed, well protecting motors, bearings and other core parts. Adopting chain transmission structure, materials stay longer inside for thorough drying, featuring excellent drying effect and high thermal efficiency.

simple description of floating fish feed processing machine

The floating fish feed pellet machine is capable of producing both floating and sinking feed. It is suitable for manufacturing feed for aquatic organisms such as carp, catfish, and shrimp. The pellets produced possess the characteristic of floating on the water surface for over 24 hours, with diameters ranging from 0.1 to 20 mm.

Our Service

We provide products of exceptional quality, along with comprehensive and outstanding service, for floating fish feed processing machinery.

1. We offer technical support 24 hours a day, 365 days a year-from the moment an order is confirmed through to the signing of the contract.

2. We develop customized plant designs free of charge, tailored specifically to meet your unique production requirements.

3. Prior to delivery, our machinery undergoes rigorous functional testing and thorough inspections to ensure stable and reliable operation. 4. Upon request, we dispatch expert engineers to your site to provide equipment maintenance and necessary operational training.

Packaging & Shipping

1. The floating fish feed processing machine is packed with fumigation-free wooden cases externally for safe transportation.

2. Internal parts are wrapped tightly with stretch film for dustproof and moistureproof. Delivery Detail: Goods will be delivered within 30 working days after receiving official order.
