Fish Feed Production Making Machine
1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Key Selling Points: Long Service Life.
4. Usage: Feed machine.
5. Service: 24h Online.
6. Packing: Wooden package.
Description
Products Description
The fish feed production-making machine can produce premium quality floating and sinking fish feed and pet food, such as special koi food, goldfish food, catfish food, tropical fish food, cat food, as well as dog and monkey food. This production line adopts the steam method with high-efficiency driving, stability, and low noise. The products produced by this production line have the characteristics of high protein, complete nutrients, long floating on the water surface, etc., and can be added with micronutrient elements, which can promote the rapid growth of pets and fish and are well received by farming enterprises.
Product Video
Product Sample
Raw Materials
Main raw materials are corn flour,wheat flour etc grain flour, also include fish meal,meat meal,soybean meal etc. You can also add some vitamins and additives if the market requires
Extruder Model
If you are not sure which output or model you need, you can tell us the budget, and we will recommend the right machine for you
|
Model |
Installed Power |
Power Consumption |
Output |
Size |
|
DSE - 65 |
75kw |
55 kw |
100-150 kg/hr |
17x1.3x2.2(m) |
|
DSE - 70/75 |
107 kw |
76kw |
200-250 kg/hr 250-350 kg/hr |
20x1.5x2.2(m) |
|
DSE - 85 |
208kw |
154 kw |
350-500kg/hr |
30x1.5x2.6(m) |
|
DSE - 95 |
168kw |
94kw |
1000-1500kg/hr |
40x3.5x4.5(m) |
|
DSE - 132 |
280kw |
132kw |
3000-3500kg/hr |
45x4.5x6(m) |
Flow Chart
After confirming the order, our engineers will design the layout for you according to the situation of your factory
Machine Details

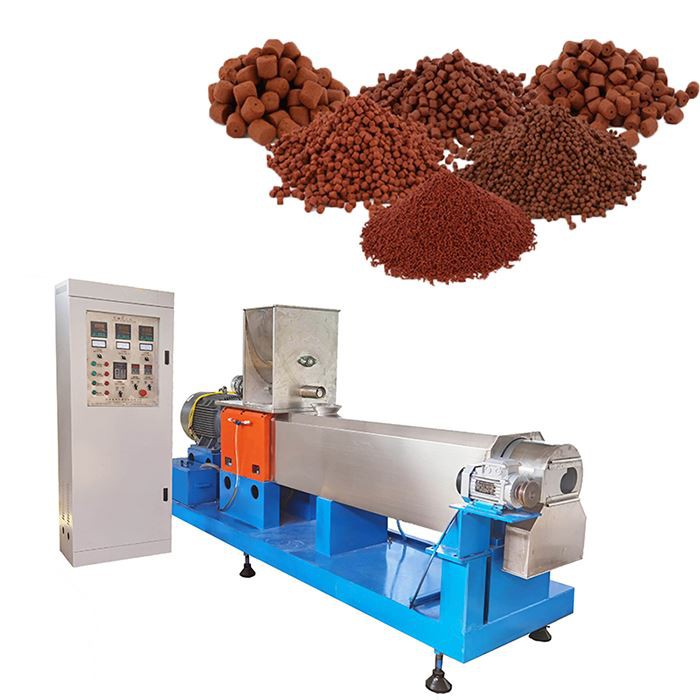

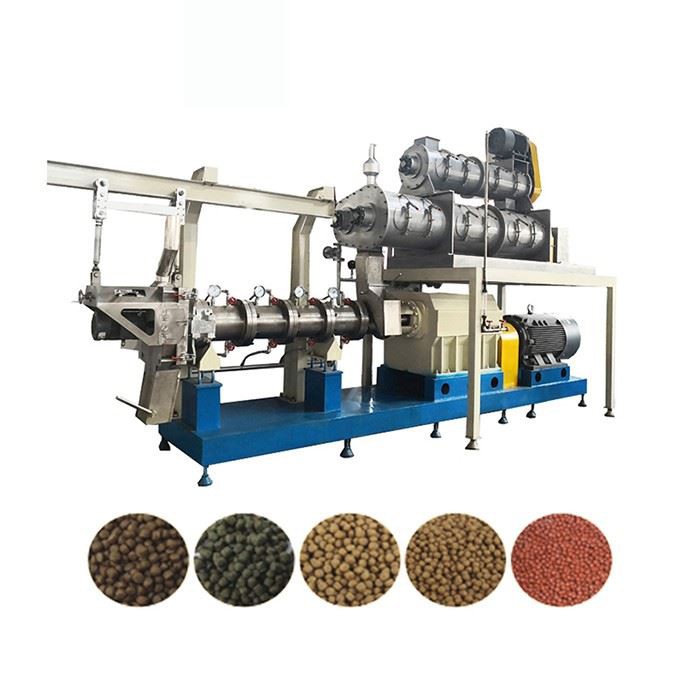

1. The main machine is a twin-screw extruder. Compared with the single screw extruder, it has a high degree of automation, stable performance, good product quality, and large output.
2. The forced lubrication system, can guarantee the equipment transmission life longer.
3. Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.
4. Self-cleaning, when stopping, can be cleaned without disassembling.
5. Through the pretreatment of the fodder, it can reduce the loss of nutrition and advance the protein ratio. So the fodder will be digested easily by animals.
6. The processing line adopts corn flour, wheat flour, low-temperature soya flakes meal, rice bran, and wheat bran as raw materials
7. Puff snacks, pet food, and floating and sinking fish feed pellets can be produced. For floating fish feed, it can float around 20 hours.
8. The diameter of fish feed from 0.5mm-15mm is available.
9. Sinking and floating fish feed can be shifted.
10. Formula will be provided according to customer's demand.
Project Cases
2-3ton/h Fish feed production line in Turkey
Country: Turkey
Date: June 10th, 2015
2ton Floating fish feed production line in Nigeria
Date: July 30th, 2018
800kg/h Dog food production line in Russia
Country: Russia
Date: Nov 29th, 2021
1ton Slow sinking fish feed line in South Africa
Country: South Africa
Date: March 06th, 2016
1500-2000kg/h Fish feed production line Mali
Country: Mali
Date: Oct 29th, 2018
600-800kg/h fish feed production line in Congo
Country: Congo
Date: Jan 28th, 2022
Our service and advantage
We are always online waiting for your inquiry and questions. We will answer all the questions that you want to know and equip the suitable food machines according to your requirement.
Our after-sales workers have good technical and equipment debugging experience. They can make your equipment run smoothly in a short time. We take the development of extruder as our responsibility, we will keep forging ahead and innovating constantly. We all here look forward to your presence and guidance. Let's develop and succeed together.
Packing & Shipping
Usually, we will pack machines using plastic films. But can make wooden package according to customers requirement.
