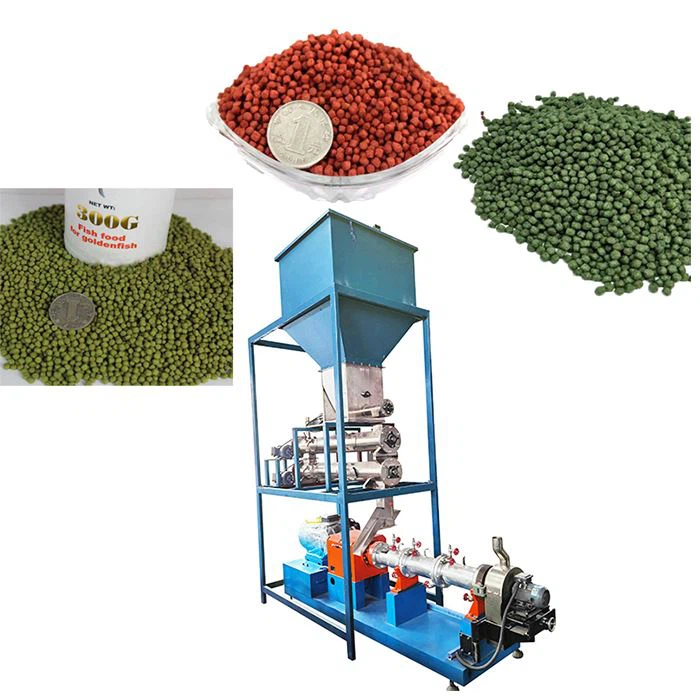

Automatic Fish Feed Making Machine

1. Certification: CE ISO SGS.
2. Motor: Siemens, ABB or Chinese Brand.
3. Product Origin: Shandong Province,China.
4. Delivery time: 25-30 working days.
5. Packaging Details: Wooden cases or wooden pellets depended on clients' requirements.
6.Payment Terms:L/C,T/T and so on.

Send Inquiry

Description

Machine Video

Introduction

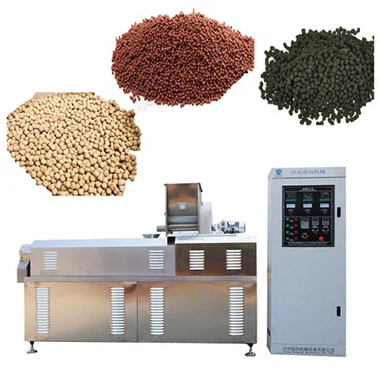

Floating Fish Feed Making Machine offered by our company, is designed and manufactured by making use of premium grade raw materials and high technology, with the help of skilled workers. This machine is widely used for making fish feed which will nourish the fish in a better way. This machine is tested under different quality parameters to ensure its high quality and effectiveness. This machine is very easy to install as well as simple to use.

Fish Feed Sample Show

Specifications

We have a variety of Fish feed making machine models for you to choose, The machine capacity ranges from 100kg per hour to 5 tons per hour. If you need a larger or smaller machine capacity, we can also customize it according to your specific requirements.

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/h	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/h 250-350 kg/h	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/h	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/h	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/h	45x4.5x6(m)

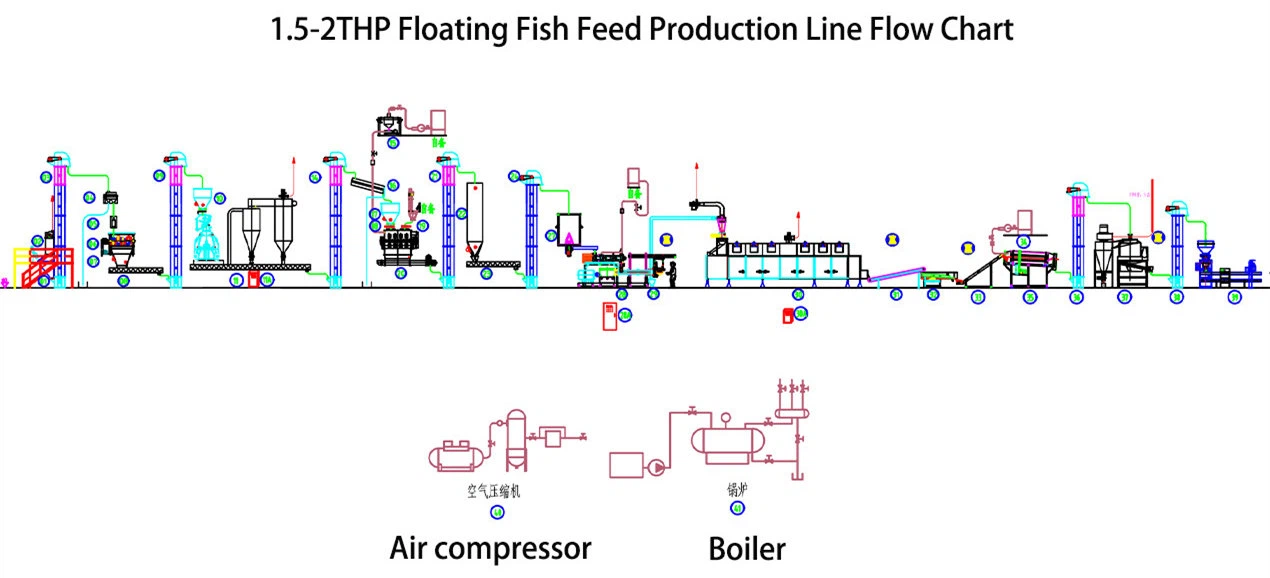

Flow Chart

Mixing - Hoist - Milling - Hoist - Extrusion - Hoist - Dryer - Hoist - Flavoring - Cooling - Packing

For the specific machine process and configuration, we will confirm more details after further communication, and then configure the machine according to your specific needs, our engineers will make a suitable flow chart based on our experience or your factory layout.

Raw Materials

Adopts corn flour, fish meal, bone meal, meat meal, soyabean powder etc as row materials.

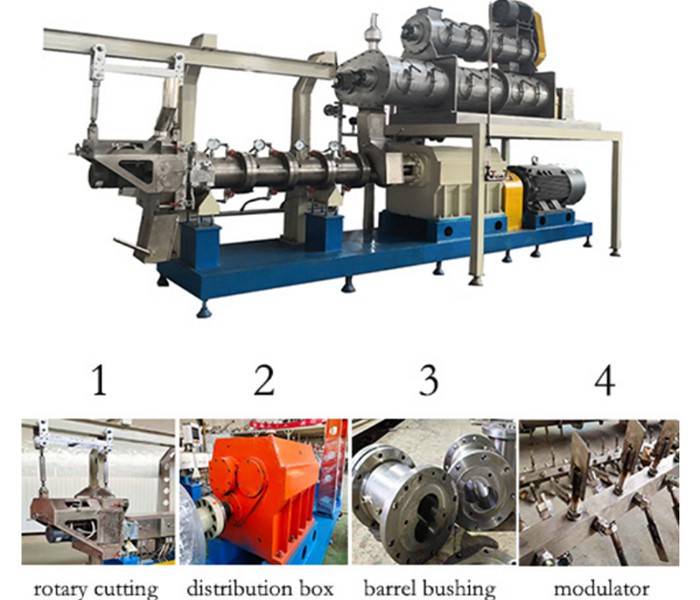

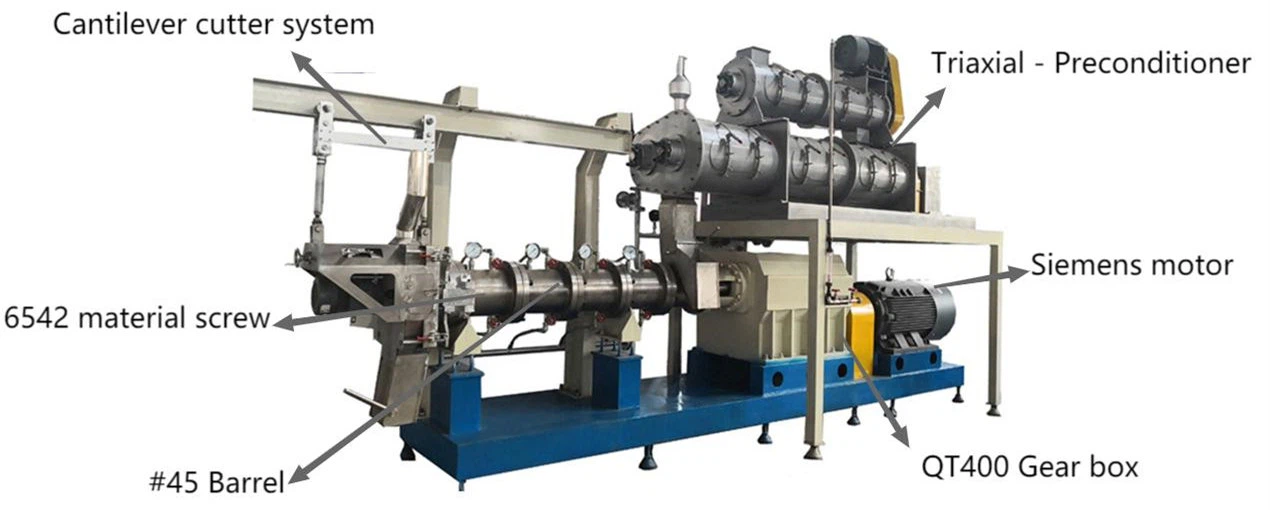

Machine Detail

Wet type equipment

1. Cantilever rotary cutting, suitable for large output, quick tool setting,and more convenient adjustment.

2. Reinforced high-torque new cabinet, with water cooling and filter.cabinet material QT400, aging treatment, good stability.

3. The barrel is made of No. 45 steel with wear-resistant bushings, which has a long service life and low replacement cost.

4. The modulator can increase the protein content, and increase theoutput of the same model, and the blades can be adjusted for easycleaning.

(1) High-quality ingredients (fish meal, cereals, vegetable proteins …) are selected and ground according to the specific nutritional and pellets size requirements of the aquatic animals and various fish request.

(2) The particle quantity of fish feed raw material is a key factor for premium granulates production: therefore the grinding step is an important unit operation. The powder is then mixed with minor ingredients such as vitamins, mineral premixes… prior to the preconditioning out to the fish extruder directly.

(3) Next, the heart of the process, extrusion cooking is done in three stages in the fish feed machine: preconditioning, extrusion cooking and die texturing/ shaping. Twin-screw extrusion-cooking uses its perfect mixing ability and parameters control such as shear, temperature, residence time to reach the highest physical and nutritional standards. Through direct steam injection, venting device and efficient barrel cooling, adjustable screw speed, screw configuration, shear and temperature conditions are perfectly controlled; this leads to optimized functional and nutritional pellet properties such as the bulk density, calibration, cooking degree, best ratio proteins- lipids, etc

Our advantages

1. Mainly for export, this series is our best-seller!

2. Strengthen the research and development of core technology and improve product performance.

3. Unceasingly expanded enterprise setup, continuously growing business partners.

4. At the same time, empowered by advanced equipment and professional technicians and talents, we have excelled in research and development of new products.

our services

1.) Consultation service before, during, and after sales;
2.) Project planning and design service;
3.) Debugging of equipment until everything is functional;
4.) Management of equipment's long distance shipping from the seller's factory to the named place by the buyer;
5.) Training in equipment maintenance and operating personally;
6.) New production techniques and formulas;
7.) Provide 1 year complete warranty and lifetime maintenance service.
