Extruded Snacks Food Making Machine
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Capacity: 250-350 kg/h
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Main motor: 75kw
Screw type: combined screw
Bearing brand: NSK/IKO
Gear material:20CrNiMoA
Description
Raw Material
Wheat flour, corn flour, corn starch, tapioca starch, potato starch and so on.

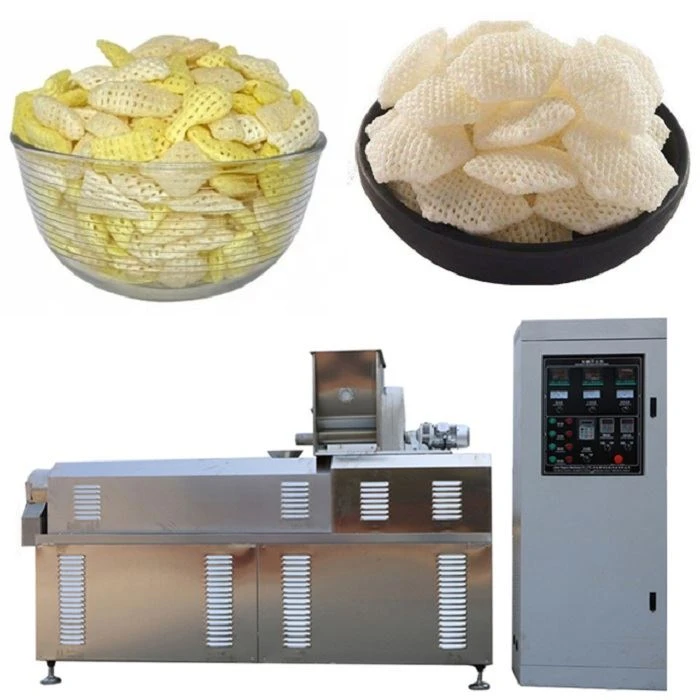

Final Sample Picture

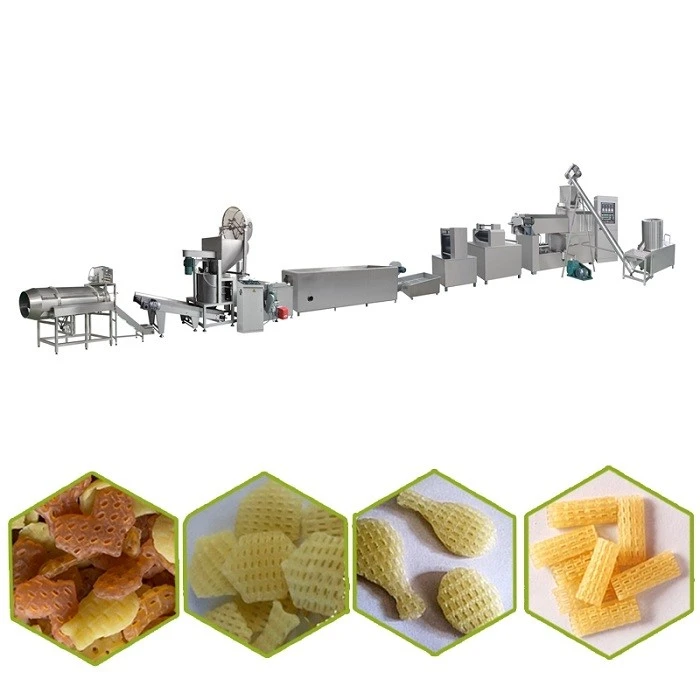

Production Line Flow Chart
Non-fried production line:
Mixer - Screw conveyor - Extruder - Piercing machine - Cutting machine - Mid hoister - Drum screen - High hoister - Dryer
Fried production line:
Mixer - Screw conveyor - Extruder - Piercing machine - Cutting machine - vibration screen - Dryer - Fried machine - Mid hoister - Single flavoring drum
Production Line Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
SSE100 |
77kw |
50kw |
80-100kg/h |
2900*880*1900mm |
|
DSE75F |
160kw |
75kw |
250-350 kg/h |
25000*1500*2400mm |
Main Machineries
About Our Factory
Our service:provide you with equipment, process, raw materials, packaging and other aspects of professional consultation.
Assist you in equipment selection, process design, plant optimization layout.
Compensation for material changes can be designed and demonstrated on site for your products. Various basic formulations are available.
We can carry out special design, manufacturing and application test according to your needs, and provide targeted training.
For you to design a reasonable packaging and transportation plan, transport agents, send technicians to the door to install and debug, training personnel.
Equipment warranty one year, long-term concessions, supply of spare parts.
Undertake similar imported equipment parts design and processing.
