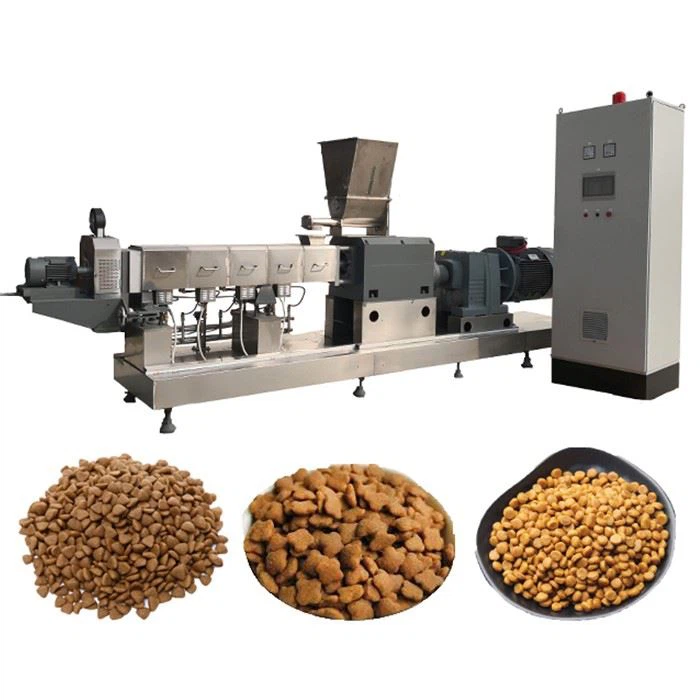

Pet Dog Food Making Machinery

1. Certification: CE ISO SGS.
2. Motor:Siemens, ABB or Chinese Brand.
3. Material: stainless steel food grade.
4. Application:Dog and Cat.
5. Warranty of core components: 1 year.
6. Key Selling Points: Automatic.

Send Inquiry

Description

Product Video

Flow Chart

Milling system - Mixing system - Extruder system - Drying system - Flavoring system - Packing system

Products Description

1. Raw material processing:
The dog food production line first processes the raw materials, including removing impurities, washing and grinding. Through advanced production equipment, various raw materials can be effectively processed to ensure the quality and hygiene of raw materials.
2. Mixing and Stirring:
During the dog food production process, various raw materials need to be mixed and stirred to ensure the balanced distribution of various nutrients in the dog food. The equipment adopts precise metering system and efficient mixing equipment to ensure the accuracy and uniformity of mixing and stirring.
3. Extrusion:
After mixing and stirring the raw materials, the starch is denatured and matured under high temperature and high pressure. And get the required product shape through the extruder die.
4. Cooling and packaging:
In the final stage of this line, the dog food will be cooled to room temperature by the cooling conveyor, packed and sealed. The production line has high-speed automatic molding and packaging functions, which can greatly improve production efficiency and product quality.

Final Product

This dog food extruder machine can be used to produce pet pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the dies from extruder; meanwhile, it can produce fish feed and shrimp feed, and cat food.

Technical Parameters

We have a variety of dog food making machine models for you to choose, Capacity:100- 150kg/h, 200-250kg/h, 500kg/h, 1ton/h……

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)

Details Images

Name: Screw conveyor

Main motor: 1.1kw

Material: Stainless steel

Output: 0-1000kg/h

Function: The raw materials mixed in proportion are transporteato the extruder, with simple operation, no leakageand no pollution.

Name: Mixer

Main power: 5.5kw

Output: 300kg/time (6-10mins/time)

Material: Stainless steel

Function: Add the crushed raw materials to a certain proportion of water to mix the raw materials, easy to operate.

With pneumatic valve, the mixing of raw materials is completed and the outlet is automatically opened.

Name: DSE75S double screws extruder

Main motor: 37kw (frequency control)

Feeding motor: 0.75kw (frequency control)

Rotary cutting motor: 0.75kw (frequency control)

Total heating power: 14kw

Output: 400~500kg/h

Screw length:1520mm

Screw diameter: 75mm

Screw material: 38CrMoAl

Oil pump motor: 0.37kw, with oil tank, forced lubrication

Name: Electric dryer

Heating: electric heating

Circulating fan: 0.37kw

Moisture exhaust fan: 0.37kw

Function: Dry the product to remove moisture and increasethe shelf life.

Using frequency conversion speedregulation, the speed is slow, consistent, and stablewhich has a good protective effect on the motor, bearings, etc. and the chain transmission makesthe material drying time longer, the drying effectis good, and the heat utilization rate is high.

Application prospects

1. Improve production efficiency:
Traditional hand-made dog food is time-consuming and laborious, but this production line can realize automatic production, which greatly improves production efficiency. By optimizing the production process and increasing the use of equipment, labor costs and time costs can be reduced, and the production capacity and competitiveness of enterprises can be improved.
2. Guarantee product quality and safety:
The equipment adopts advanced production technology and strict quality control system, which can ensure the quality and safety of products. Through the automatic operation and monitoring system, the influence of human factors on product quality can be reduced, and high-quality dog food products can be provided.
3. To meet individual needs:
Modern pet owners have increasing demands for personalized pet food, and this production line has flexibility and customization capabilities and can make production adjustments and product innovations according to market demand. Enterprises can produce dog food products that meet different pet tastes and nutritional needs according to different formulas and taste requirements.

FAQ

1. What material are your machines made of?

A: Stainless steel.

2. How long is your machine quality guarantee time?

A: Quality assurance within one year (except for wearing parts and damage caused by human factors).

3. How about your installation service?

A: We provide various installation manuals and instructions, of course, when the machine arrives at your factory, we will send 1-2 engineers to install the machine and know how your workers use the machine.

4. I want to make products with different flavors?

A: We will provide 1-2 basic formulas, then you can adjust and find the best taste formula to meet your target market.

5. What is your payment method?

A: 30% TT as deposit, 70% TT or L/C paid before shipping.

Packing & Shipping

• The inside package is plastic film, outside is a wooden or plywood case.
• Only plastic film nude packing with wooden pallets.
• We can supply fumigation packages and certificates for Pet Food Machine Extruder.
• Shipping, train, express, or upon clients' demands.
