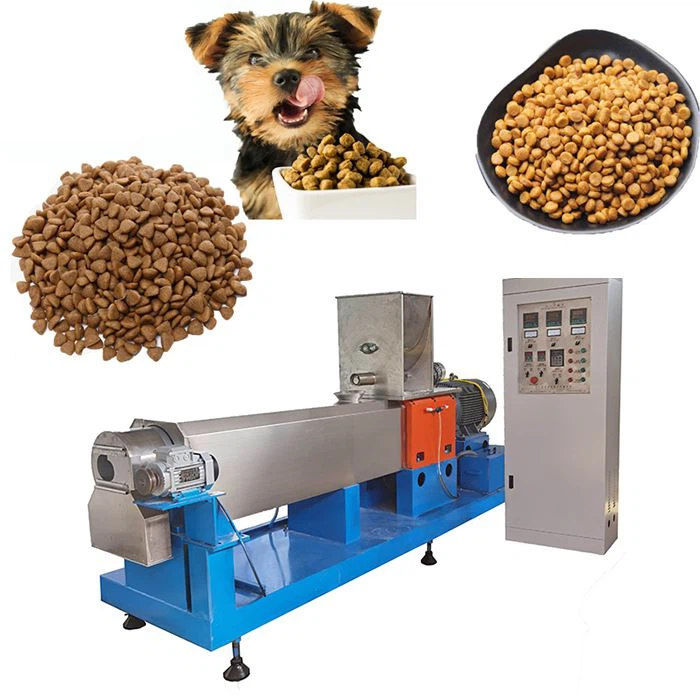

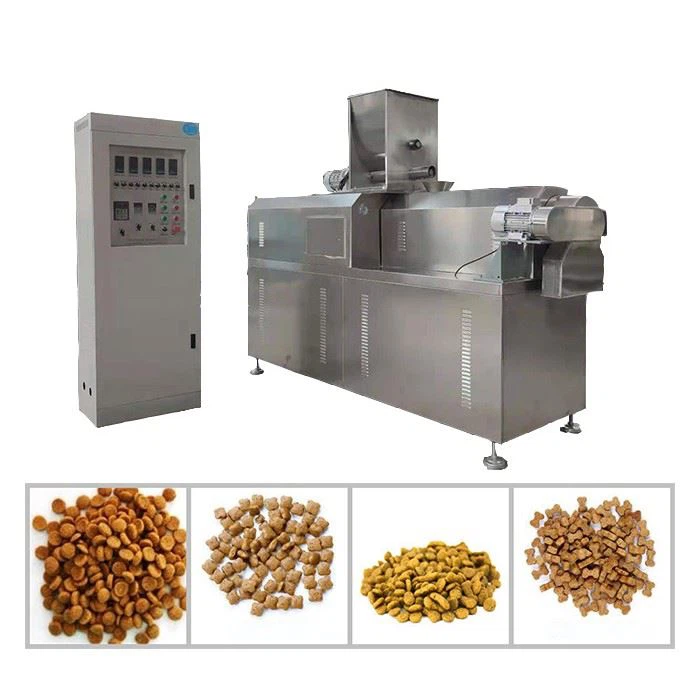

Pet Dog Cat Food Extruder Machine







The raw material formula of dog food is divided into 7 categories: protein, fat, carbohydrates, vitamins, minerals, water and cellulose. The proportion of the preparation should be adjusted and modified according to the pet dog breed, additional activity level and health status. Thereby satisfying the requirement of its nutrition and mouthfeel. For dog food manufacturers, the dog food formula needs to be improved regularly.



Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)



a. The screws are made of alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing materials.
b. The extrusion barrel is constructed of carbon steel and is made of #45 steel, stainless steel coating.
c. The gearbox has an automatic lubrication function, with extended gear life.
d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process is perfect.
f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

1. The machine has a novel design, compact structure, and high production efficiency.
2. Reliable, durable, low failure rate, easy to operate and maintain.
3. Simple and convenient to use, smooth transmission, and low noise.
4. The main components are made of special alloy materials after heat treatment, which has a long service life and low cost of producing feed.
5. The twin-screw design has a powerful self-cleaning function, and the screw groove can purify itself. When changing formulas and product varieties, there is no need to shut down the machine for cleaning.
6. The screw has a strong pumping effect, strong material stagnation and diffusion effect, fast advancement speed, and relatively stable product quality.

1. The pet food equipment contains screws and screw sleeves. The material has a long rotation time and the temperature can be adjusted. The output torque can be adjusted to make the feed made of materials have high expansion degree and smooth surface.

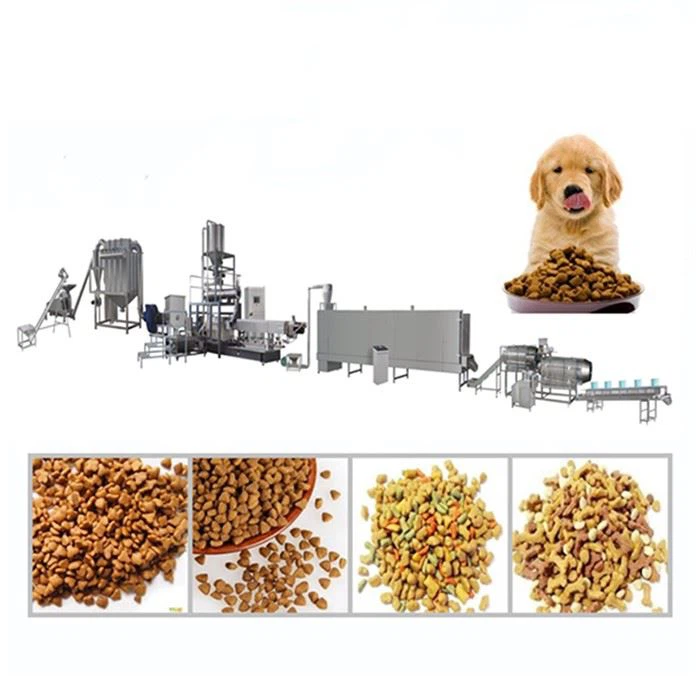

2. Different feeds can be made. This model can also be used for: cat food equipment, floating fish feed equipment, dog food production line, sinking fish and shrimp feed equipment, etc.

3. The advanced granulation structure, combined with the soft knife form, achieves stepless speed change, which can cut the feed to the required length at will and is not prone to burrs.

4. The design is novel and unique, the structure is simple, the installation is convenient, the disassembly is convenient, and the operation is convenient.

5. The screw is made of special wear-resistant high-temperature alloy steel material. After heat treatment, it has the advantages of wear resistance and long service life.

6. Equipped with a unique boosting mold device to ensure the output and quality of the feed material, and equipped with an electric heating device to increase the expansion rate of the feed material.

7. The main motor adopts a three-phase motor to ensure sufficient power.

8. The speed-adjustable feeding device is more convenient to operate, feeds materials evenly, and prevents machine jamming.

9. Changing the mold is simple and convenient, just change the mold with different hole size.



We can provide you with some necessary certificates, such as SGS certificates, or some special certificates you need.



1. Could we visit your factory to check the machine carefully and closely?
A: You’re more than welcome to visit our factory, we will provide machine test running, face-to-face discussion, and project design solutions.





2. Could you afford a technician team to guide our installation and commissioning?
A: Overseas commissioning service provided, our technician will help to install the machine and teach local workers about operation and maintenance. Buyer should pay for the technician’s round flight ticket, accommodation, and salary.



3. How long is your machine’s guarantee time?
A: One year from the machine arrives at your factory running.



4. If some parts break after the warranty, what should we do?
A: Our company supplies full-life after-sales service, whenever new parts are needed, we will help to supply new replacements at a reasonable price & in the shortest time.



5. If we show our workshop size, can you design a layout for the whole line?
A: Auto CAD layout will be provided as the client’s workshop size.

1. According to customer needs, the inner packaging is plastic film and the outer packaging is wooden box.

2. Only plastic film bare package and wooden pallet.

3. Shipping by sea, rail or road.
