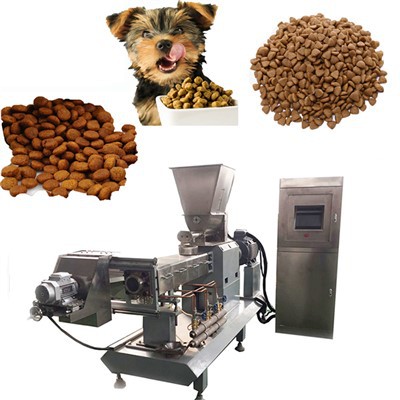

Extruded Dog Food Machine

Extruded dog food machine line is used to produce different kinds of dog food, cat food, floating fish feed, sinking fish feed, and so on. It works with simple operation, and accurate parameter control, The products can be finished at the stipulated temperature, pressure, humidity, and time. Owing to the reasonable design, special materials, the stability, repairs can be guaranteed and ensured. The various shapes and tastes must meet the different requirements of pet food.

The production line can be arranged in three ways: linear, L-shaped, and U-shaped. The specific placement method depends on the customer's factory conditions. After we start the order with the customer, our engineers can help design the layout of the production line







Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc. can also add fresh bone, meat, etc. Fitness: about 60-80mesh which were crushed and mixed. Moisture content: about 20%-25%.





Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	100-150 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	200-250 kg/hr 250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150 kw	350-500kg/hr	30x1.5x2.6(m)
DSE - 95	165kw	90kw	1000-1500kg/hr	40x3.5x4.5(m)
DSE - 132	280kw	132kw	3000-3500kg/hr	45x4.5x6(m)



Twin-screw Extruder Unit is a high-standard and professional extrusion machinery unit. It consists of Storage Silo, material conveyor, conditioner, feeder, extruder, electric controller, and operation platform. The extruder includes a drive system, extrusion system, cutting system, heating system, lubricating system, and extraction steam system. Conditioner is designed as the advanced technology biaxial differential modulator.



It can higher the material's temperature, make flour materials softer, and lower the materials’ friction. Thus reducing the extrusion power consumption, increasing the output, improving the stability of the extruder operation, and prolonging the life of t the whole extruder unit. To ensure the materials completely curing and pasting, the extruder adopted double screw synthetic rotary extrusion technology( double screw diameter ratio is 19.58)



The double screw of the extruder is designed as the 38CrMoAl modular sectional screw, easy to adjust the different screw functional sections. Then it can be accurate to adjust the quality of different products. The screw has higher wear resistance and longer service life with nitrogen treatment.

Ⅰ、Provide professional advice. We promise to answer you within 24 hours of the proposed any professional and technical problems.



Ⅱ、Provide reasonable quotation. We guarantee you within 24 hours the required products in terms of reasonable price.



Ⅲ、Provide reception. We guarantee that receive your visit at any time, and to provide you with all the requirements at your convenience.



Ⅳ、We assure you of our telephone guidance within 24 hours, by you to rule out the simple failure of equipment.



Ⅴ The engineer is responsible for on-site equipment installation, commissioning, and testing.



Ⅵ、Our product warranty is for two years, and any problems are to be borne by us， except natural disasters and artificial damage.

We can provide you with some necessary certificates, such as SGS certificates, or some special certificates you need.

1. According to customer needs, the inner packaging is plastic film and the outer packaging is wooden box.

2. Only plastic film bare package and wooden pallet.

3. Shipping by sea, rail or road.
