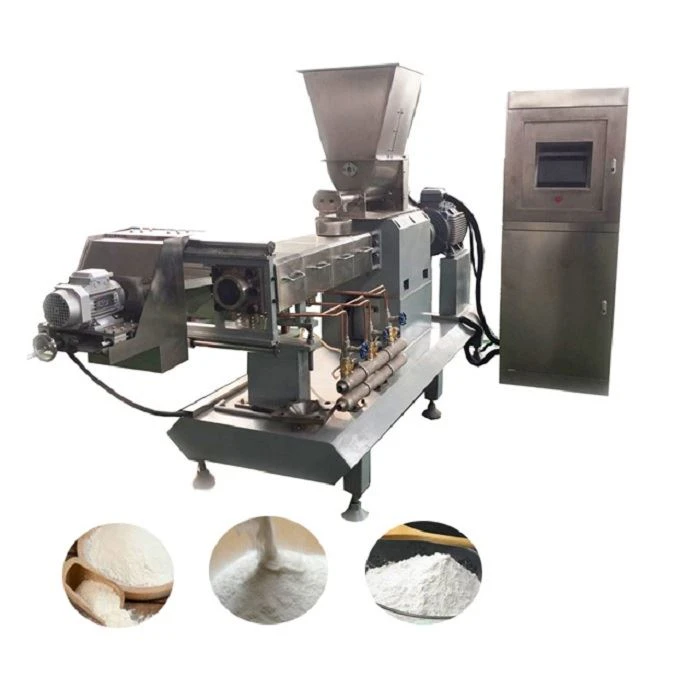

Modified Starch Processing Line
Certification: CE SGS ISO
Main motor brand: Siemens or Chinese brand
Electrical components: Schneider, Delta, or Chinese brands
Capacity: 400-500kg/h
Voltage: three phase 380v 50hz(can be customized)
Material: stainless steel
Screw type: Integral screw/combined screw
Extruder type: Twin screw extruder
Barrel type: Square barrel/round barrel
Description
Final Product Pictures
Starch has been widely used in fisheries, especially in eel feed. Pregelatinized starch treated fish feed. Usually eel feed is in granular form, which is composed of vitamins and other nutrients, a certain proportion of binders, oils, etc. The binders must have the following characteristics: 1. Non-toxic, easy to digest, and nutritious; 2. Transparency High, so that eels can clearly identify the feed and avoid wasting it; 3. The overall shape of the particles is maintained until the eels finish eating. 4. The feed wrapped in pre-gelatinized starch will not be dissolved by solutes in the water, thus preventing the water from 5. Non-stick equipment due to feed contamination, pregelatinized potato starch is the best eel feed binder, and the general addition amount is 20%. 6. It can add some nutrients to provide nutrition to fish
Production Line Flow Chart Picture
Machinery Video
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Production Capacity |
Dimension |
|
DSE65 |
72kw |
50kw |
100-150kg/h |
19000*1300*2200mm |
|
DSE70 |
92kw |
65kw |
240-260kg/h |
14000*2000*4000mm |
|
DSE75F |
70kw |
50kw |
200-250kg/h |
32000*1100*1800mm |
|
DSE85 |
108kw |
76kw |
400-500kg/h |
30000*1500*2600mm |
Main Machineries on production line
Extruder
Model: DSE65
Main motor: 22kw
Feeding: 0.75kw
Rotary cutting: 0.75kw
Heating power: 10kw
Capacity: 100-150kg/h
Size: 19000*1300*2200mm
Screw material: 38CrMoAl
Oil pump motor: 0.37kw
Air conveyor
Power: 1.1kw/1.5kw/2.2kw
Capacity: 0-2000kg/h
Material: Stainless steel
Dryer
Type: Electric type (we also have oil/gas type and steam type)
Model: kx-3-5, kx-5-5, kx-5-8, kx-7-5, kx-7-8
Capacity: 100kgh to 10tons/h
Material: Stainless steel
Milling machine system
Model: FS-480
Installed power: 15kw
Capacity: 100-300 kg/h
Dimension: 1.3*0.7*2m
Our Engineers
Our services
1. We have professional making formula that can send to customer for reference
2. Our engineer can design production line layout according to factory's sitruation
3. We will test machine before delivery and take videos and pictures for customer
4. We have 24 hours online consultant services. If you have any problems, just feel free to contact us.
About Packing & Shipping
If the customer needs, we can arrange shipping by boat. The reliable freight forwarders we cooperate with will transport the goods to the customer's destination port
