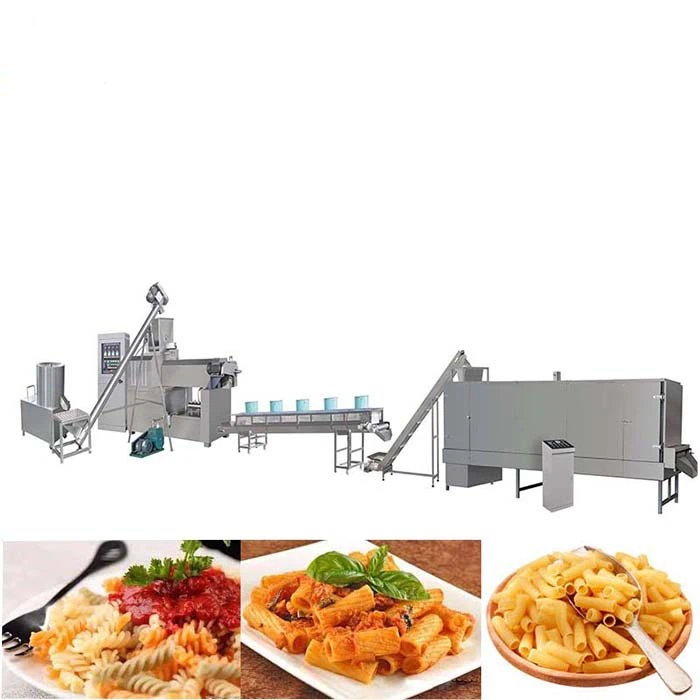

Macaroni Production Machines
1.certification：CE ISO SGS
2.Motor:Siemens，ABB or Chinese Brand
3.Electrical components: Schneider, Delta, or Chinese
brands
4.capacity：100-500kg/h
5.Voltage：3phase380v50hz,can be customized
6.Material：stainless steel
Description
Product video
Product description
Macaroni is a famous pasta in Western countries, which can be divided into solid and hollow. Also known as macaroni, internationally collectively known as Macaroni, it is a flour product made from wheat flour. The macaroni juice can stay in the hollow macaroni, making it less likely to taste dry. In the 18th century, Maccaroni, the owner of a noodle and pasta shop near Naples, Italy, his little daughter rolled the pasta into hollow strips and hung them on the clothesline while playing. Macaroni cook hollow strips and toss them with tomato sauce. After that, he built the world's first macaroni processing plant and named the macaroni after himself.
raw material
Macaroni is one of the staple foods in Italian cuisine and is loved by people all over the world. Macaroni is favored by diners for its chewy texture and varied flavors.
The raw materials for making macaroni are mainly wheat flour, water and salt. It's amazing how these simple ingredients can be made into such delicious food. Macaroni is rich in starch and protein and is suitable as a staple food in people's diet. And its calories are relatively moderate, making it a good choice for people who want to control their weight.
Macaroni is a very versatile ingredient that can be combined with a variety of sauces and ingredients to create dishes with different textures according to your own taste. For example, we can use different sauces such as tomato sauce, meat sauce, white sauce, etc. to match cooked macaroni, or we can add various vegetables, seafood, cheese and other ingredients to create a delicious and delicious pasta set.
In addition, macaroni also has beauty and beauty effects. It is rich in dietary fiber and multiple vitamins, which can promote metabolism and reduce the occurrence of skin diseases. Therefore, regular consumption of macaroni can not only satisfy people's taste needs, but also achieve health benefits.
Overall, macaroni is a delicious and nutritious ingredient. Not only can it be matched with various flavors, but it also has certain beauty and beauty effects, which is why it is favored by people all over the world.
Product Sample
Flow Chart
Mixer → Screw conveyor → Extruder → Cutting machine → Hoister → Dryer → Cooling → Hoister → Packing
1. Mix raw materials. Use a machine to mix raw materials, auxiliary materials, water and other materials, and mix them evenly. 2. Screw feeder: used to lift the mixed raw materials into the hopper of the extruder.
2. Single-screw extrusion molding: The raw materials are uniformly discharged from the host feeder, are gently squeezed and matured by the screws, and then sent out through the mold for molding. Mold replacement operation is simple.
3. Traction cutting machine: The cutter is used to cut rectangular tubes and round tubes. The traction cutting machine consists of two parts: cutting system and conveying system. The equipment is simple to operate and adopts frequency control to adjust the length.
4. Elevator, used to lift food into the oven.
5. Multi-layer drying box: This drying box is a customized, low-temperature multi-layer circulation oven. It is used to dry and dehydrate the semi-finished products produced. It adopts a belt drying device. A certain number of heating devices are installed in the oven, and electricity (steam, gas, fuel, etc.) is used for heating and drying. The most commonly used drying and dehydrating device for products
6. Cooling machine: used for preliminary cooling of products.
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Output |
Size of production line |
|
SSE 100 |
107 kw |
80 kw |
100-150 kg/h |
15x1.2x2.2(m) |
|
DSE75F |
200 kw |
130 kw |
250-300 kg/h |
18x1.2x2.2(m) |
Main Machine Details
Extruder (single screw type)
To extrude the corn grits to the required shape and size
Model: SSE 100, SSE 120
Capacity: 100kg/h to 200kg/h
Material: stainless steel
Extruder (twin screw type)
Square barrel type
Model: DSE65F, DSE 75F, DSE85F
Capacity: 100kg/h to 500kg/h
Material: stainless steel
Purchase Notes
(1) Price issue: The price shall be subject to the actual quotation of our company!
(2) Product problems: Our company conducts strict quality inspections on all products before shipping to ensure that there are no problems before shipping!
(3) Product pictures: The pictures are all taken in kind, but there will be slight color differences due to light and display reasons, please understand.
(4) Product attributes: Before placing an order or purchasing, please inquire about the product model, specifications and sizes you need to confirm whether the product you need is in stock.
our advantages
1. Established in 2009, more than 10 years of experience in the extrusion food machinery industry.
2. CE and SGS have been obtained, Our machines have been exported to 150 countries and districts.
3. We offer a complete solution, turnkey solution service for customers.
4. Strong sales service team with 20 years of experience, ensuring high-quality products.
5. Superior geographical position, the convenient traffic conditions. Located in Jinan City, Shandong Province,1 hour away from Jinan Airport, and 2 hours away from Qingdao Port.
Certification
