Corn Wheat Flakes Machine
1.certification：CE ISO SGS
2.Motor:Siemens，ABB or Chinese Brand
3.Power：22/37/75kw
4.capacity：100-500kg/h
5.Voltage：3phase380v50hz,can be customized
6.Material：stainless steel
Description

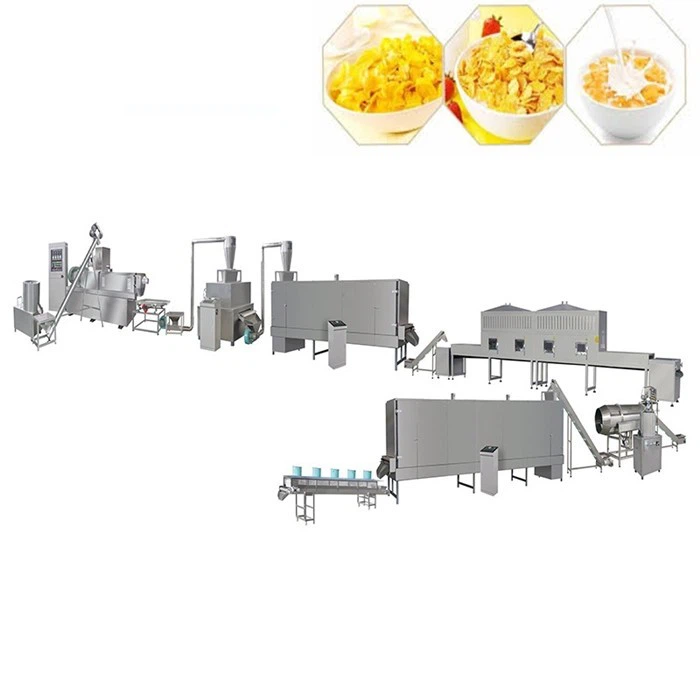

Machinery introduction
Breakfast cereal production line adopts advanced puffing technology, all kinds of cereal raw materials after high temperature and high pressure treatment, instant puffing into crisp, nutritious breakfast cereal. The whole production line is composed of ingredients, mixing, expanding, drying, seasoning, cooling, packaging and other links, with a high degree of automation and fast production efficiency.
Product Sample
Raw material
Different kinds of grain flour. If you need,we can provide you our corn flakes formula after we confirm order.
Flow Chart
1 Ingredients: The ingredients of corn flakes are very important, seasonings to ensure a good taste, especially the requirements for corn raw materials, is directly related to whether to make high-quality corn flakes products, as well as the proportion of various nutrients, content.
2 Extrusion ripening molding: The extrusion ripening molding process of corn flakes is the key to producing high-quality corn flakes. This is the only way to make a dense, hard, and aromatic corn chip.
3 Cutting: The twin-screw extruder extrusion after the material cut into the size of the same granular material, the material is translucent.
4 Pre-drying: The material cut into the dryer for pre-drying, the surface after drying formed a certain tension, no longer adhere to each other, is conducive to the smooth progress of the press.
5 Pressing: The pressing process is also the key in the production of corn flakes, the requirements for the pressing machine are very high, the roll surface must have a high finish, the roll must be constant temperature.
6 High temperature baking: Whether the corn chip product has a hard crisp, dense organizational structure, highlighting the unique flavor of corn, the baking process is crucial.
7 After the baking of corn chips after cooling is corn chip products, at present, there are a lot of corn chips for post-process processing, coated with sugar, salt stir-fry or coated with chocolate, mostly according to the taste of the market.
8 After spraying and seasoning, the product is baked again to stabilize the product form, and then enters the packaging section after cooling
Technical Parameters
|
Model |
Installed Power |
Power Consumption |
Output |
Size of production line |
|
DSE65 |
76 kw |
55kw |
100-150 kg/h |
17x1.2x2.2(m) |
|
DSE70 |
94kw |
75kw |
200-250 kg/h |
20x1.5x2.2(m) |
|
DSE85 |
143kw |
103kw |
300-500 kg/h |
28x3.5x4.3(m) |
Extruder Details

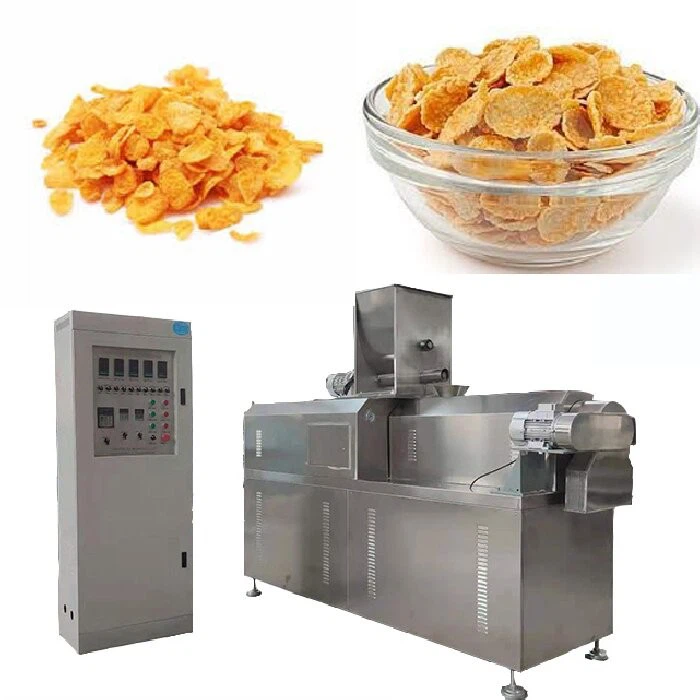

Twin screw Extruder
Flaking machine.
Electric/Gas/Steam Dryer
Hot air baking machine
Climbing dryer(include hoister,dryer.cooling machine)
Certification
We have passed CE,SGS,ISO etc different kinds certification.So we can make sure our machine quality is good.
Our Service
1. We provide complete installation and operation manual in english or other languages as long as customer need.
2. If needed, we can send our technician for the installation of the cereals flakes machines.
3. Our expert technician can install the machines and take the trial production as per the requirement of the customer.
4. Our technician also train machine operators at the customer’s place
Packing & Shipping
•Provide plastic film simple package when load container,also can provide wooden package according to your need.
